Olympus SZ2-STS - Attaching the LSGA Illuminator; Adjusting the Focus Adjustment Knob Tension

7

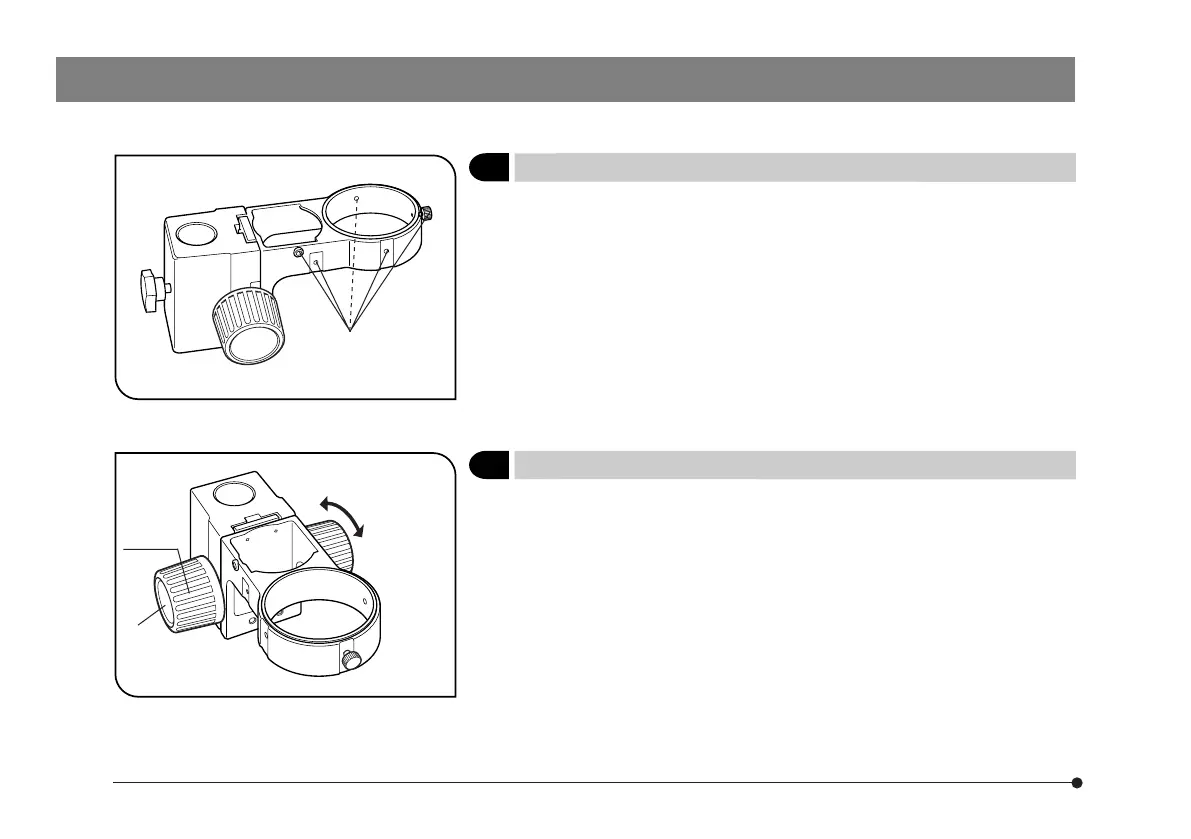

Fig. 6
3
Attaching the LSGA Illuminator
(Fig. 6)
# The LSGA cannot be attached ton the SZ2-STB2 and SZ2-STP.
Using the IHA or IHD holder, the LSGA illuminator can be attached to any
of the five (or three with the SZ2-STB3 in combination with the IHA mount-
ing holder) LSGA attaching positions @ on the arm.
For details, refer to the instruction manual for the LSGA.
Fig. 7
4
Adjusting the Focus Adjustment Knob Tension
(Fig. 7)
1. Hold the left and right focus adjustment knobs @ with two hands, fix one
knob and rotate the other knob to increase or decrease the tension ac-
cording to the rotation direction.
2. This operation is intended to adjust the force required for rotating the knob
while preventing spontaneous lowering of the microscope frame. To ob-
tain highest ease of use, it is recommended to adjust the tension at a
slightly higher level than the level at which spontaneous lowering occurs.
@
To decrease
Fix this
knob.
@
To increase
