4. Mounting the Flash
Attaching to an arm
Attach the flash to the arm. When attaching the arm to the camera, make
sure to read the arm’s instruction manual on how to attach the arm.

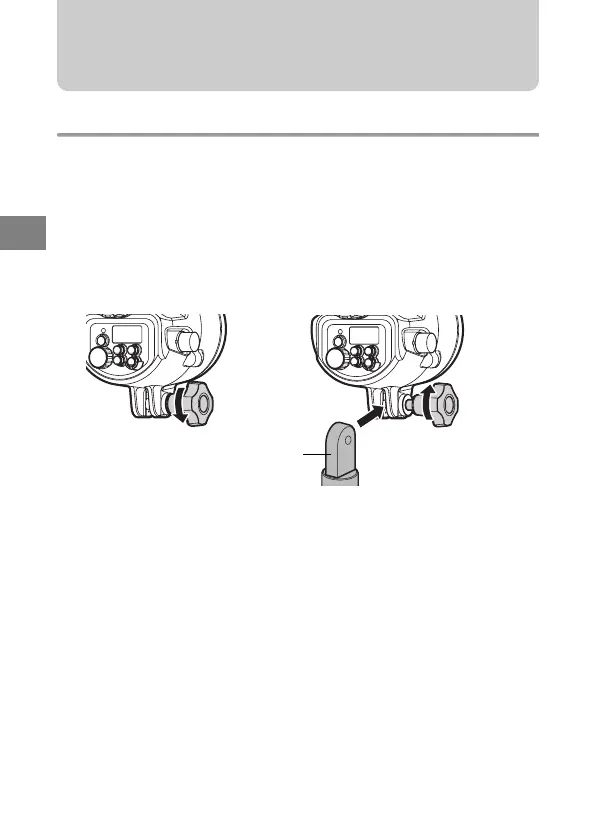

1 Loosen the arm mount knob by turning in an counterclockwise direction.
2 Place part A in the space between the arm mount.
3 Turn the loosened knob, in step 1, in a clockwise direction all the way to
clamp the arm to the flash.
• Be sure to double check the arm is firmly fastened to the flash.
If the case of necessity, attach the flash leash to the flash leash hole and
tie it to the underwater case, etc.
1
A
2
3
