Preparation for Use
MOBILE WORKSTATION WM-NP2
37
5. Referring to Figure 4.10, locate the spring plunger on the rear of the drawer unit, pull down
and twist 90° to lock “open”.
CAUTION
Please take care not to slide the drawer unit forwards with the spring
plunger unlocked, as the shelf will fall.
NOTE
The spring plungers cannot be removed from the shelves.
6. Referring to Figure 4.11, from the front of the workstation, take a firm hold of the drawer unit
and prepare to support its weight (6kg), pull the drawer unit forwards where it will completely
disengage and be free of the shelf.

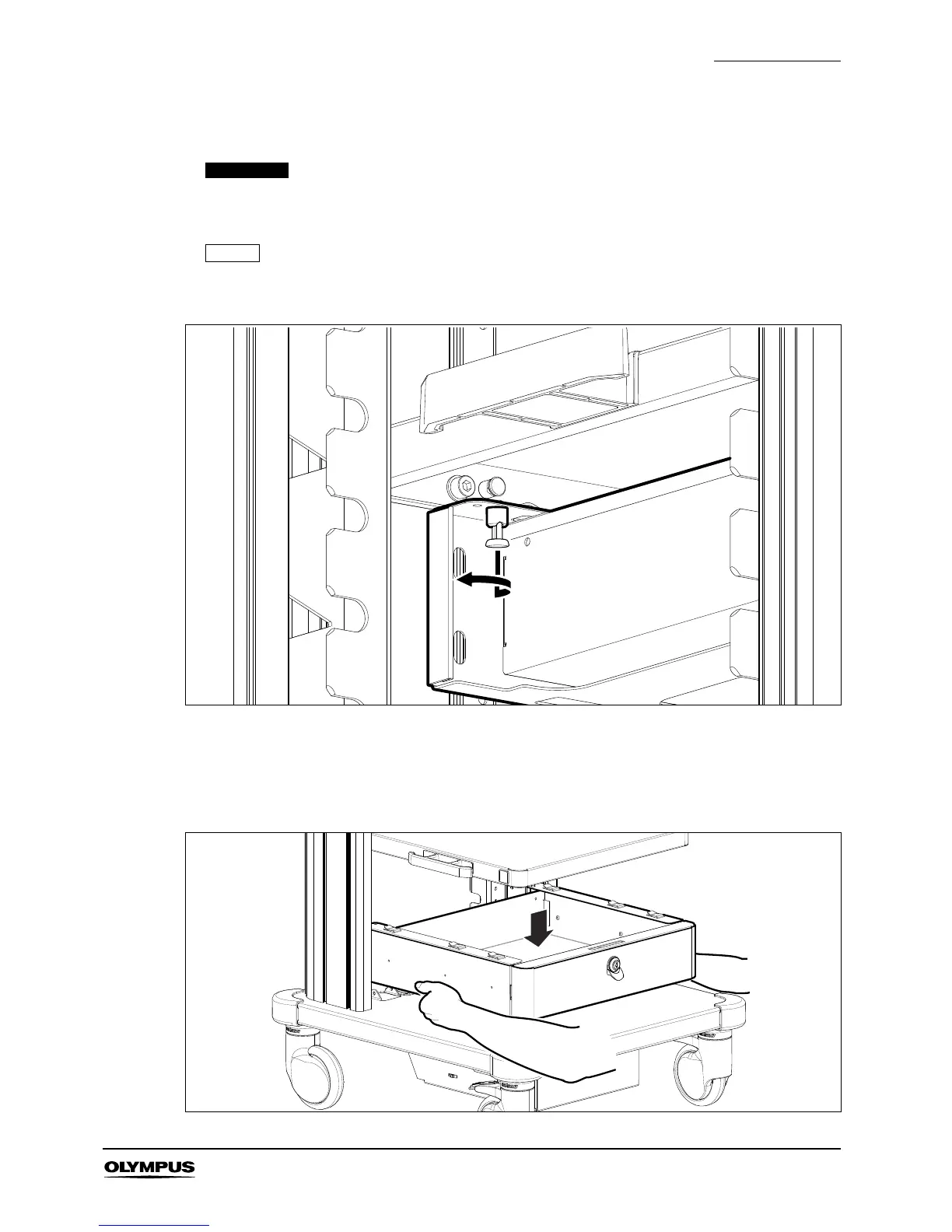

Figure 4.10
Figure 4.11
