24
Rev.4 del 01/2010 O.M.A.C. s.r.l.

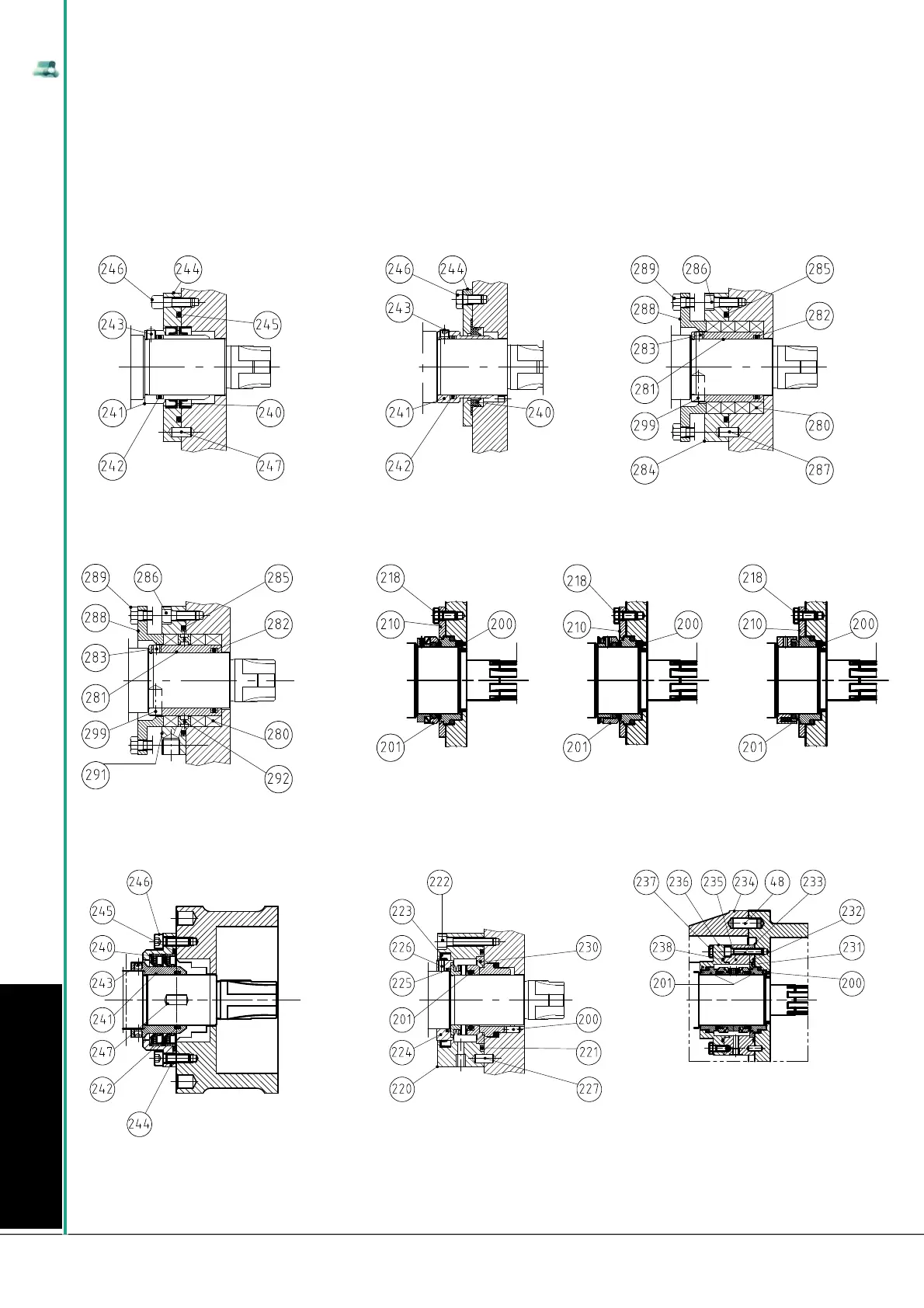

7.1.4.3 B550 B660 B680: Seals section drawings
Seals section drawing B550
UM Lip Seal S1 Lip Seal Packing gland
Packing Gland Single Mechanical Seal
with liquid barrier “U7K“ “KL2A“ “C5E“
Double HN Lip Seal Single Mechanical
“KL2A”, “U7K“, “C5E“ Flushed “KL2A”, “U7K“, “C5E“ Double Mechanical Seal
