1.3 Technical features
The technical data of the LDPU is listed in the “technical sheet”, of which there is an example below. The technical sheet is delivered to the Customer
together with the LDPU, in original and edited without the possibility of manual corrections.

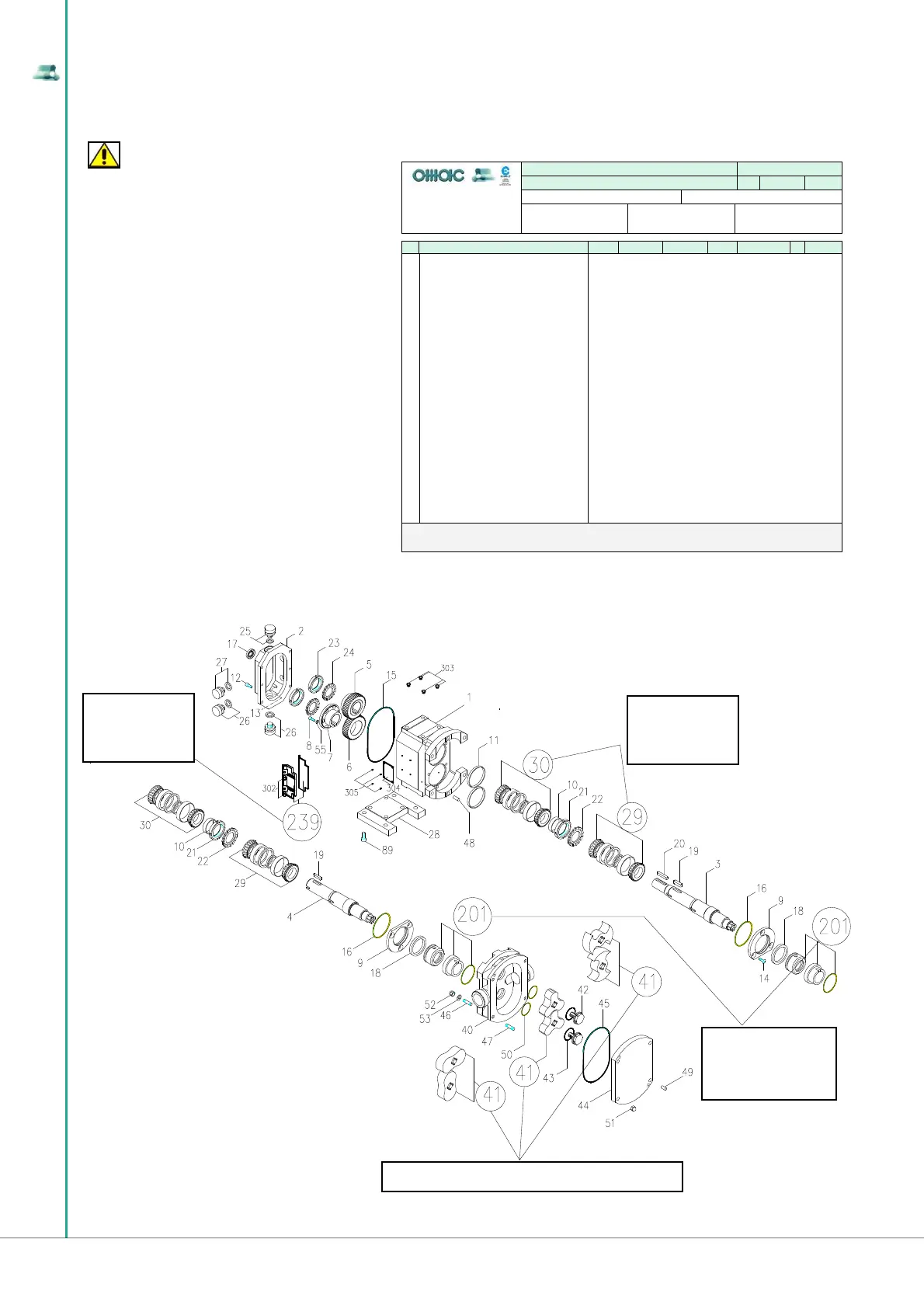

The exploded view below highlights the position numbers of some components which will be discussed later in this chapter.
ATTENTION
The technical sheet must not non have any manual corrections
or deletions.
The technical sheet lists the item code, which identifi es the
LDPU, the serial number (detectable on the riveted nameplate
on the bearings box of the B series lobe displacement pump),its
functional features (processed fl uid and its properties, pump
speed, volumetric capacity, differential pressure,..) and the
features of the B Series lobe displacement pump components.
The technical sheet below lists the technical data of the control
unit (motorisation, gear motor, speed controller,..), of the fl exible
mechanical transmission coupling, that connects the “B Series
lobe displacement pump” to the motorisation, and the type of
support on which the LDPU is fi tted.
D A T A S H E E T
Mod. 13 04 del 31/07/2008
Codice Cliente
0000000000
Tipo
A
Numero
0000000
Data
__/__/__
Nostro Riferimento Vostro Riferimento
O.M.A.C. S.r.l.
Via G. Falcone 8
42048 RUBIERA (RE) ITALY
Tel/Ph. 0039-0522-62.93.71 / 62.99.23
Fax 0039-0522-62.89.80
http://www.omacpompe.com
E-mail: info@omacpompe.com
Intestatario Ordine Destinatario Merce Destinatario Ordine
Riga Descrizione
U.M.
Quantità Q.tà Totale
6FRQWL
Importo
IVA
Consegna
K
BO000000000000000000
NR
1 DI
1,00
__
/
__
/
_
P
UMP
 6HULDOQXPEHU

/
PRODUCT INFO
MEDIA
DESCRI
PTION
VISCOSIT
Y
'
TEMPERATUR
E
PUMP PERFORMANCES
FLOW
-
RATE
PRESSION
PUMP SPEED
TORQUE
ABSORBED POWER
TECHNICAL FEATURES
MODEL
CERTIFICA
TION
ROTOS
SEAL TYPE
SEAL GASKETS
SUCTION
–
DISCHARGE CONNECTIONS
Ø
SUCTION
-
Ø
DISCHARGE
CONNECTIONS DISPOSITION
PUMP COVER
PUMP GASKETS
SHA
FT POSITION
BEARING HOUSING OIL
NAME PLATE
SUPPORT FEATURES
T
YPE
SIZE
JOINT FEATURES
T
YPE
C
ARTER
HOLE
(P
UMP
)
HOLE
(MOTORIZA
TION)
PUMP ANCILLARIES
DOCUMENT
S
Informativa d.lgs 30.6.2003 n. 196 TU Privacy I suoi dati personali saranno trattati, nel rispetto delle idonee misure di sicurezza, per invio di comunicazioni commerciali,
potrà esercitare i diritti previsti dalla legge e nelle modalità ivi completate. Titolare del trattamento dati è O.M.A.C. S.r.l., sede legale: 42048 Rubiera in Via G.Falcone, 8.
Per comunicazioni info@omacpompe.com. Per ulteriori informazioni www.omacpompe.com
SEAL
PROTECTION
par. 1.12
BEARINGS
par. 1.3.11
MECHANICAL
SEALS
par. 1.3.7
ROTORS par. 1.3.4 - par. 1.3.5
