2.4 Packaging composition for future handling
In the event of transferring the LDPU, after its fi rst installation, one must use its original transportation crate.
ATTENTION
To transport the LDPU, use the original O.M.A.C. transportation crate.
Fix the LDPU with the appropriate fi xing screws, to the wooden base, placing a nylon sheet between the wooden base and the unit.
ATTENTION
Place the nylon sheet between the wooden base and the LDPU, to protect the machine from dust.
Subsequently, fi t the external panels and lid on the sides of the base, which will make up the transportation packaging of the LDPU.

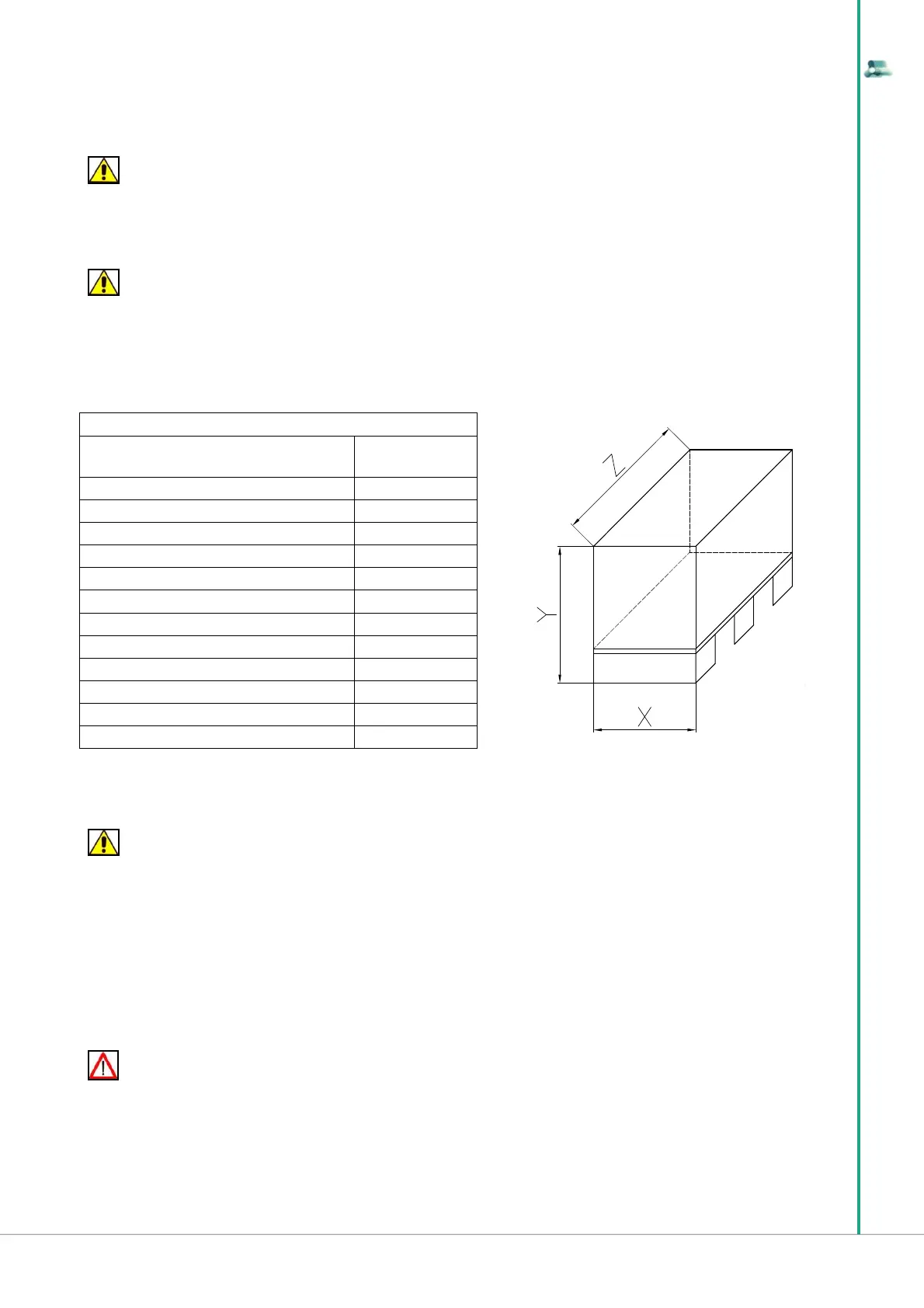

Below in the fi gure there is a typical example of the LDPU packaging.
In cases where the legislation in force requires it, one must use wooden crates that have undergone fumigation treatment.
TYPICAL PACKAGING DELIVERED
LENGHT X WIDTH X HEIGHT
of the CRATE(rif. dis. cassa Z x X x Y)
WEIGHT (kg)
36 X 26 X 39 5
45 X 35 X 44 7
65 X 43 X 54 10
76 X 42 X 64 13
86 X 61 X 74 19
100 X 42 X 53 16
120 X 80 X 117 45
130 X 53 X 64 20
160 X 63 X 74 31
160 X 63 X 135 41
200 X 71 X 104 51
230 X 72 X 95 61
2.5 Handling of the B Series LDPU without packaging
ATTENTION
If the LDPU is equipped with the full fairing, before carrying out hoisting operations one must “disassemble” the fairing by unscrewing the hexagon screws
that fi x it to the support base.
To handle and hoist the LDPU without packaging, it is recommended to use hoisting equipment, complete with the relative accessories, with minimum
capacity suitable for the machine to be hoisted (for weights consult the table below). Hoist and handle the pump Unit as indicated in the fi gure.
Only the B100 model LDPU can be handled and hoisted by hand as its maximum weight is 30 Kg. To carry out the mentioned operations use belts with
adequate capacity (not supplied).
DANGER
It is forbidden to use worn hoisting belts.
All LDPU handling operations must be carried out by personnel authorised by the customer. The authorised personnel must know how to use the hoisting
equipment. He must:
• use hoisting belts that are not worn;
• arrange and wrap the belt around the LDPU, as indicated in the fi gure on the following page;
• stretch the belts delicately;
To Next Page
