O.M.A.C. s.r.l.
Via Giovanni Falcone, 8 42048 Rubiera (RE) - Italy Tel.0522/629371 - 629923 Fax 0522/628980
E-mail:info@omacpompe.com SitoWeb:www.omacpompe.com
8
Rev.4 del 01/2011 O.M.A.C. s.r.l.
Chap.1 - pag.
1.3.8 Weights and dimensions table of the B Series lobe positive displacement pumpe
The table below shows the dimensions of the B series lobe pump, with reference to its size and according to the type of connections it is equipped with.
With regard to the dimensions of the LDPU, these vary according to the type of control unit supplied, therefore they must be expressly requested to the
O.M.A.C. Technical Offi ce.

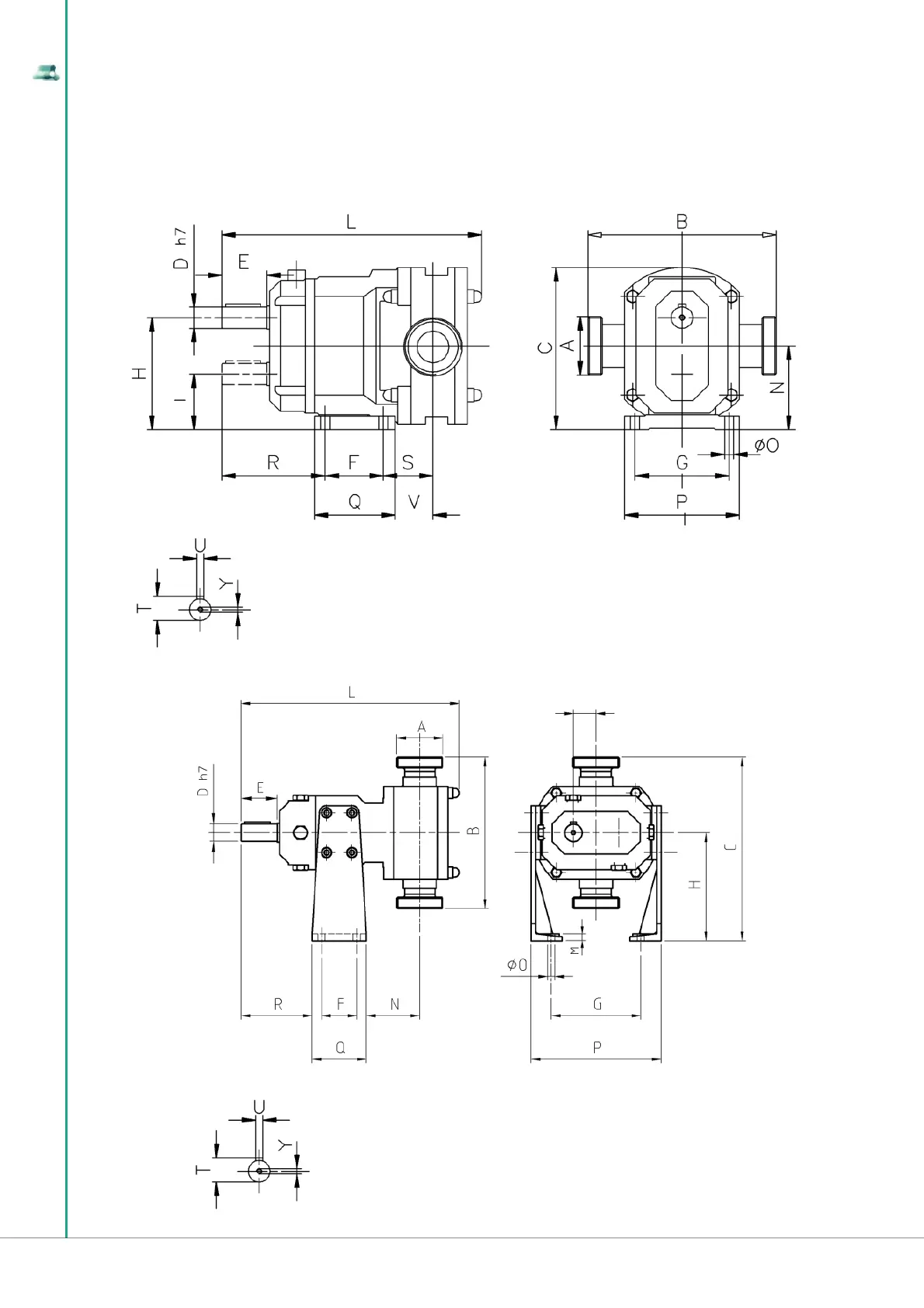

PUMP WITH CONNECTIONS IN HORIZONTAL POSITION
PUMP WITH CONNECTIONS IN VERTICAL POSITION
11 1
1
1
I1
1
1
1
