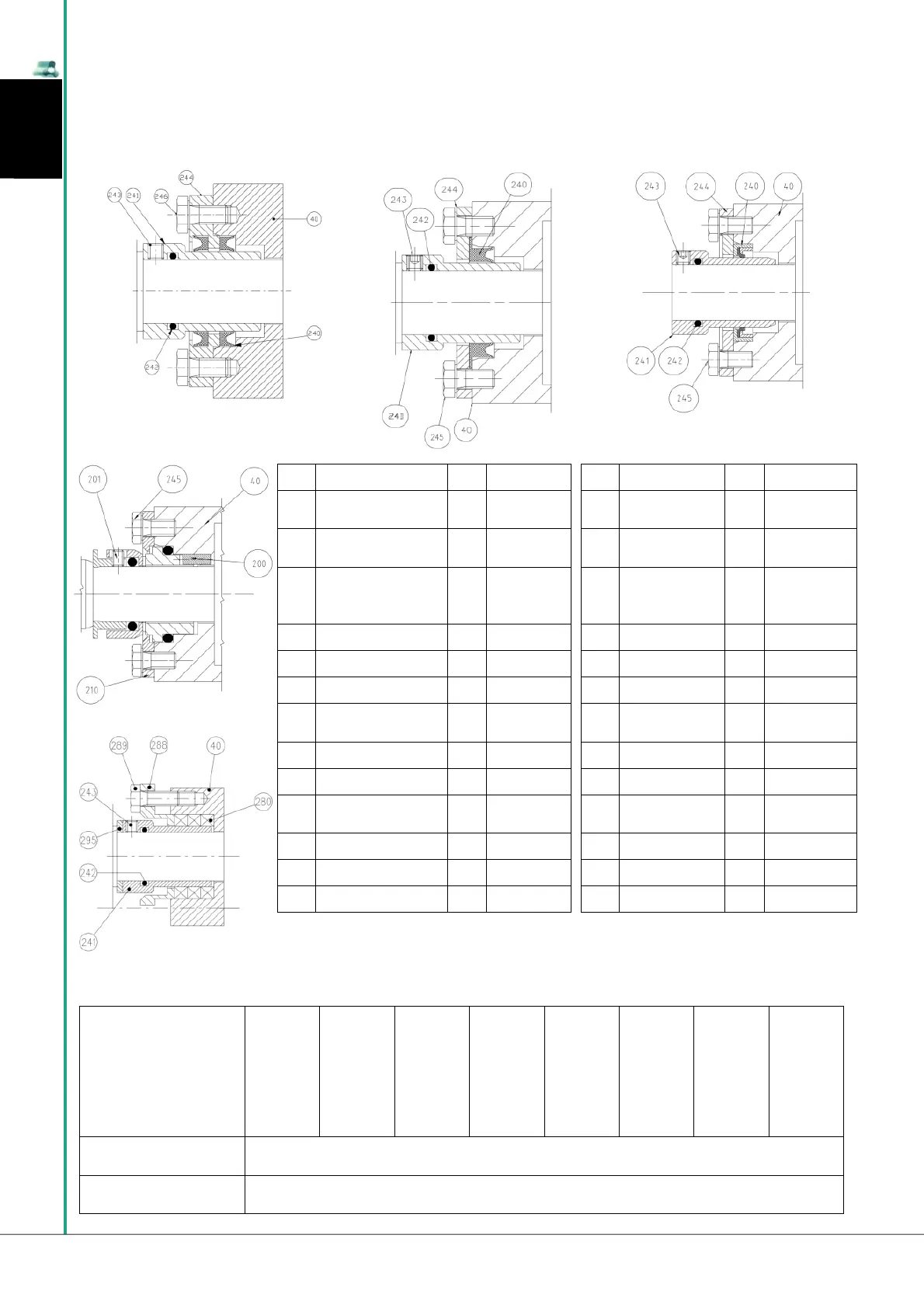

7.1.1.3 B100: Seals section drawings
UM LIP S1 LIP HN LIP
SINGLE MECH. “U7K”
PACKING GLAND
7.1.1.4 B100: Gasket or ring codes for mechanical seals
MECHANICAL
SEAL MATERIALS
B100
DIAMETER 20
AISI 316 L
CARBON
TUNGSTEN CARBIDE
CARBON
TUNGSTEN CARBIDE TUNGSTEN CARBIDE
CERAMIC
CARBON
SILICON CARBIDE
CARBON
CERAMIC
RULON
SILICON CARBIDE SILICON CARBIDE SILICON CARBIDE
TUNGSTEN CARBIDE
U7K ROTATING
RING O-RING
404U4081
U7K STATIONARY
RING O-RING
404U4112
POS. DESCRIPTION Q.TY CODE
POS. DESCRIPTION Q.TY CODE
200 SEAL STOP PIN 2
2014B200
240
SEAL RING
UM °VITON(F.K.M.)
2
402V35255
201 MECHANICAL SEAL
AISI 316 L/CARBON/EPDM
2
4U020U7KXZ7
240
SEAL RING
HN ELRING
2
402HN25357
201 MECH. SEAL AISI 316 L
/CARBON/F.K.M.
2
4U020U7KXZY
240
SEAL RING
HN ELRING
HEAT-SEALED
2
402HN25357SPE
201 MECH. SEAL 7K-XFXZ5-HX 2
4U020U7KXZ5
241 SEAL RING BUSH 2
2004B170
201 MECH. SEAL 7K-X73Z7-HX 2
4U020U7K3Z7
242 BUSH O-RING 2
404T3081
201 MECH. SEAL 7K-XY3ZY-HX 2
4U020U7K3ZY
243 SECURITY DOWEL 6
420A05X05
201 MECH. SEAL 7K-XF3Z5-HX 2
4U020U7K3Z5
244 S1 SEAL RING
SUPPORT
2
2014B058
201 MECH. SEAL 7K-X7337-HX 2
4U020U7K337
245 SCREW 4
410A06X12
201
MECH. SEAL 7K-XY33Y-HX 2
4U020U7K33Y
246 SCREW 4
410A06X14
201 MECH. SEAL 7K-XF335-HX 2
4U020U7K335
280 PTFE PACKING GLAND
RING KIT
1
205P25355
201 MECH. SEAL 7K-XYDKKY-HX 2
4U020U7KKKY
288 PACKING GLAND 2
2014B108
210 BALANCING RING 2
2014B015
289 SCREW 4
410A06X16
218 BALANCING RING SCREW 4
410A06X12
295 SPACER 2
2014B045
