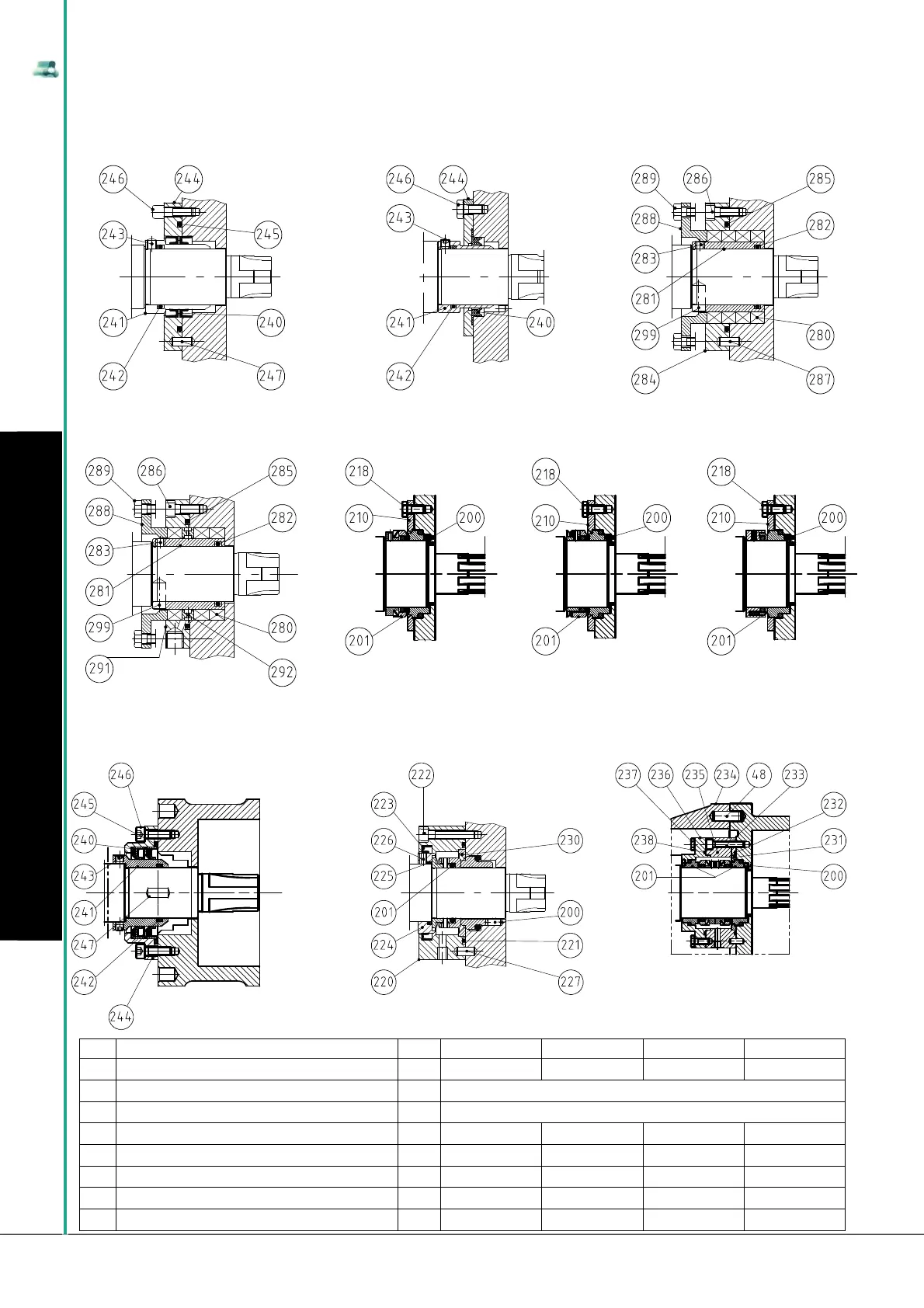

7.1.3.3 B215 B220 B325 B330 B390 B430 B440 B470 B490: Seals section drawings
UM Lip Seal S1 Lip Seal Packing Gland
Packing Gland Single Mechanical Seal
with liquid barrier “U7K“ “KL2A“ “C5E“
Single Flushed Mechanical Seal
Double HN Lip Seal FLUSSATA “KL2A”, “U7K“, “C5E“ Double Mechanical Seal
POS. DESCRIPTION Q.TY B215 B220 B325 B330 B390 B430 B440 B470 B490
200
SEAL STOP PIN
2
2014B200 2014B200 2014B200 2014B200
201
SINGLE MECHANICAL SEAL
2
see par. 7.1.3.6
210
BALANCING RING
2
see par. 7.1.3.5
218
SCREW
6 - 8(*)
410A06X12 410A06X14 410A10X20 410A10X20(*)
220
FLUSHING SEAL BOX
2
2014B142 2014B143 2014B144 2014B159
221
O-RING
2
404T168 404T4312 404T4437 404T4500
222
SCREW
6 - 8(*)
411A06X35 411A06X40 411A10X40 411A10X50(*)
223
SEAL RING UM
2
402V705510 402V857010 402V1109510 402V13511012
