The manufacturer reserves the right to make changes without prior notice!
GB
Operating instructions for
MINILIFT PUMP UNIT C40 - C50
Page: D846M5L.006
Date of Issue: 14/03/2012
Version: Rev. 02
Approved: UT

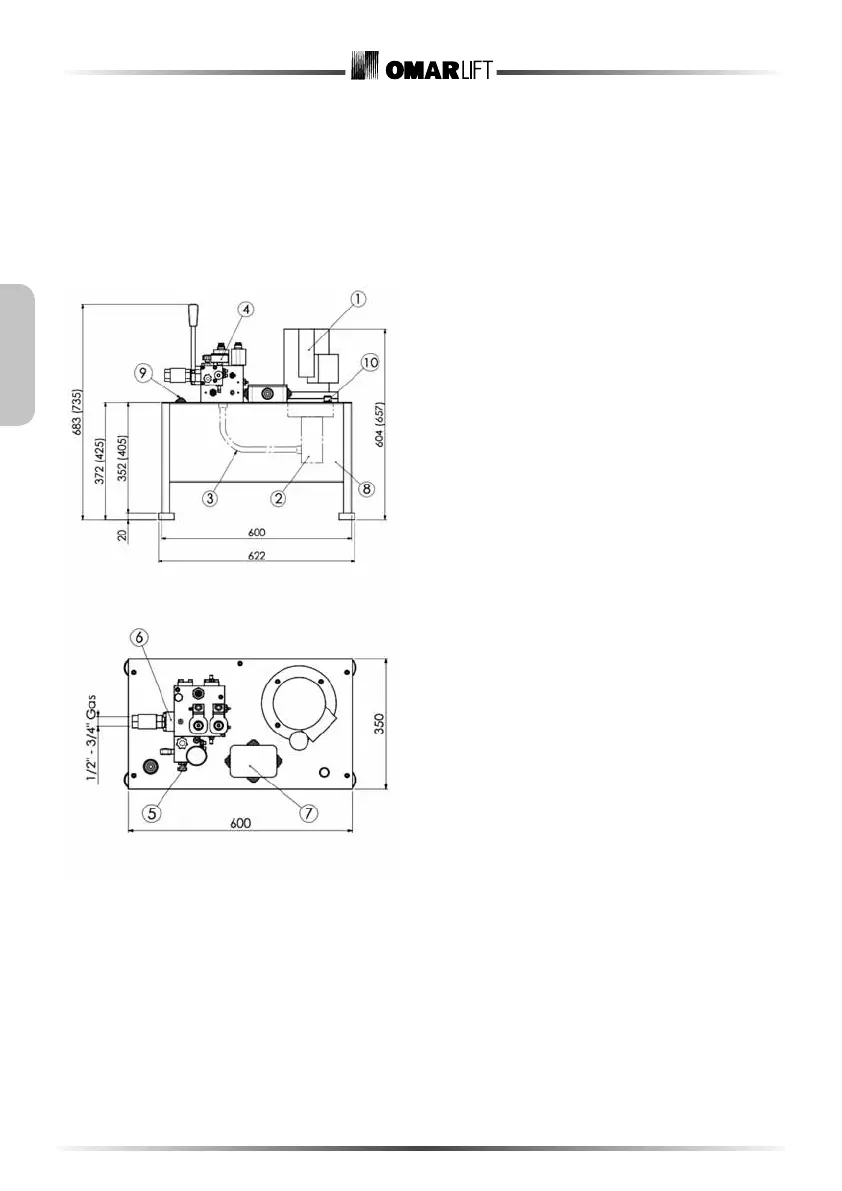

3.2 Dimensions, Minilift System Range
3.2.1 Minilift control unit
Figure 1
Figure 2
The dimensions for the C50 tank are shown betwe-
en brackets
Main components:
1 - Outer motor
2 - Pump
3 - Delivery pipe
4 - Pressure gauge
5 - Hand pump
6 - Filter block
7 - Electrical box
8 - Tank
9 - Oil fi lling plug
10 - Oil dipstick
