Variations possibles sans préavis!
FRA
Manuel d’emploi pour la
CENTRALE MINILIFT C40 - C50
Page: D846M5L.006
Date of Issue: 14/03/2012
Version: Rev. 02
Approved: UT

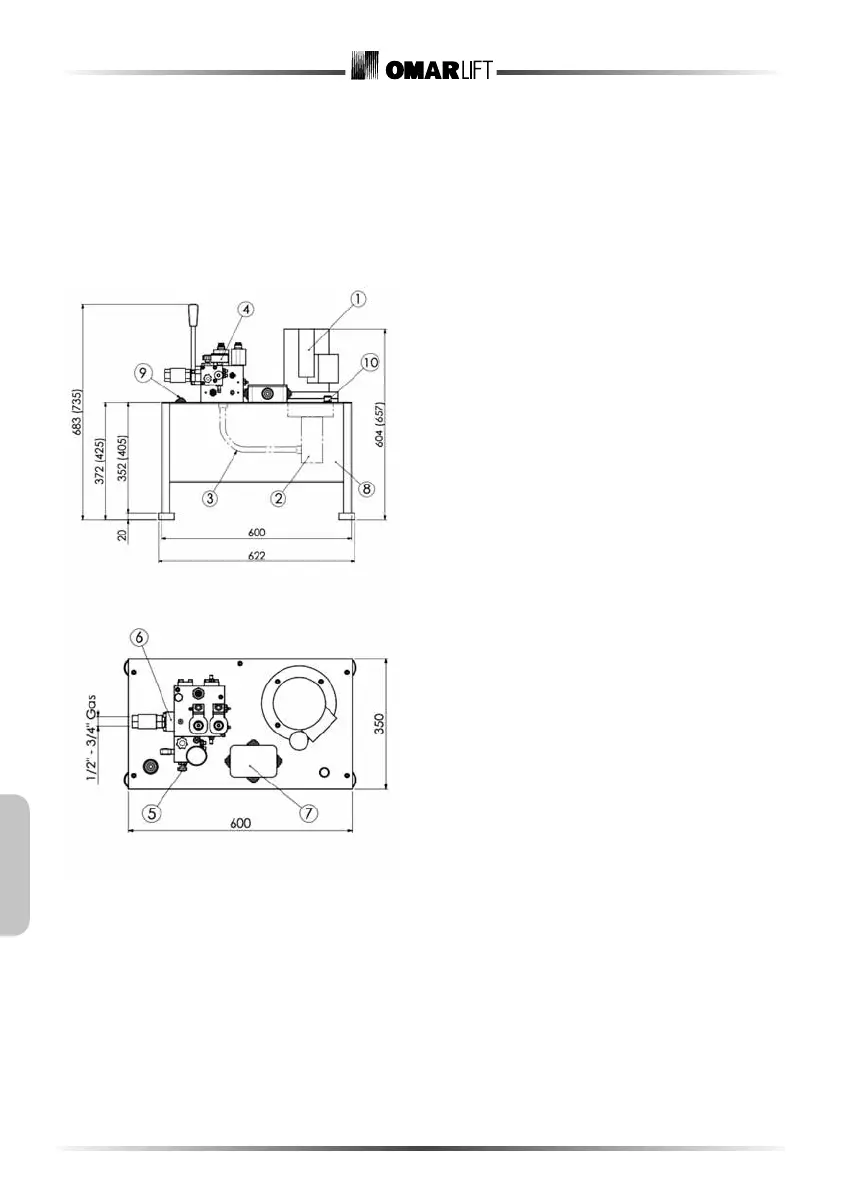

3.2 Dimensions, gamme de l’installation Minilift
3.2.1 Centrale Minilift
Figure 1
Figure 2
Entre parenthèses les dimensions du réservoir C50
Principaux composants :
1 - Moteur externe
2 - Pompe
3 - Tuyau de refoulement
4 - Manomètre
5 - Pompe à main
6 - Bloc fi ltre
7 - Boîte électrique
8 - Réservoirs
9 - Bouchon de remplissage huile
10 - Jauge d’huile
