Manual de instrucciones para
CENTRALITA MINILIFT C40 – C50
Page: D846M5L.009
Date of Issue: 14/03/2012
Version: Rev. 02
Approved: UT

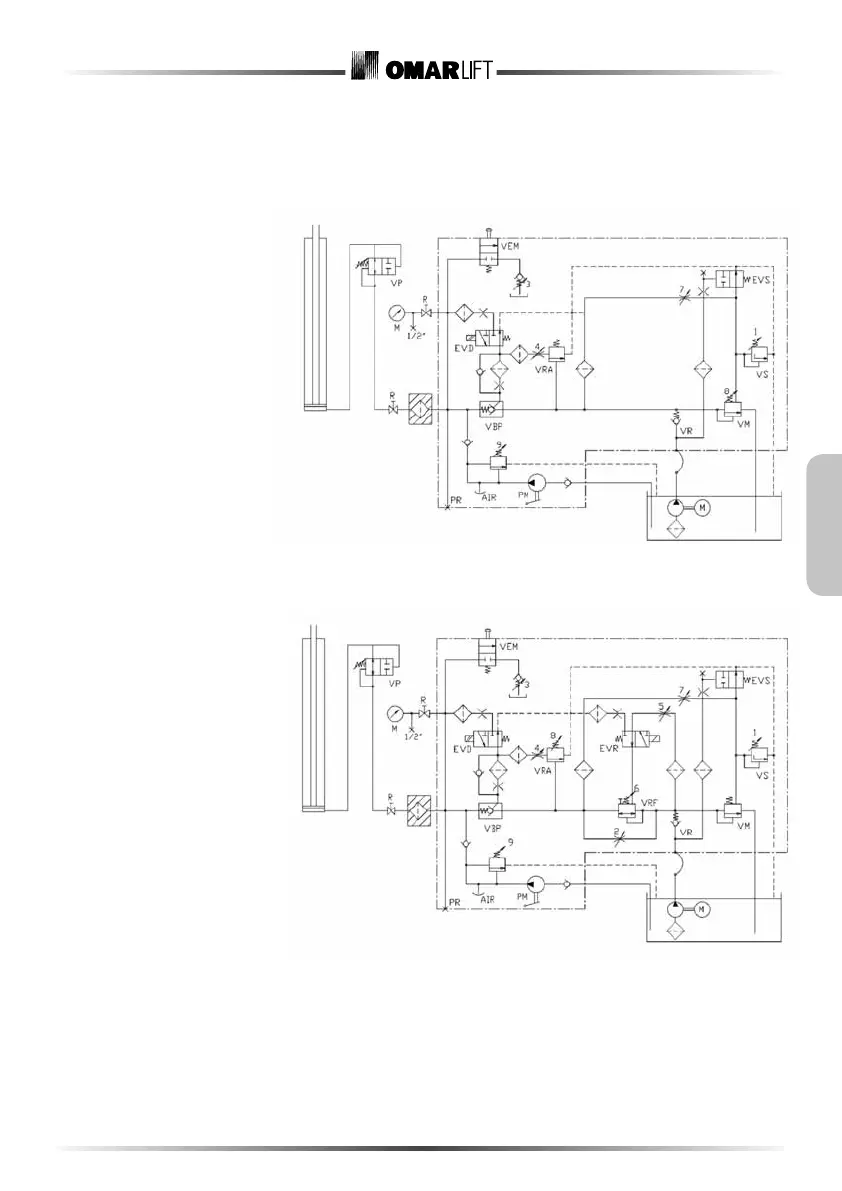

3.2.3. Minilift de 1 velocidad – Esquema hidráulico y de velocidades
3.2.4. Minilift de 2 velocidades – Esquema hidráulico y de velocidades
Figura 5
Figura 6
CLAVE DE LECTURA:
1 - AJUSTE VÁLVULA MÁXIMA PRESIÓN
2 - REGULACIÓN VELOCIDAD BAJA
3 - REGULACIÓN CONTRAPRESIÓN Y
ANTIDESCARRILAMIENTO CABLES
4 - PRUEBA REACCIÓN VP
5 - ESTRANGULADOR DECELERACIÓN DE
VELOCIDAD ALTA A BAJA
6 - LIMITADOR VELOCIDAD DE SUBIDA
7 - ESTRANGULADOR PUESTA EN PRESIÓN Y
ARRANQUE EN SUBIDA
8 - REGULACIÓN VELOCIDAD DE DESCENSO
9 - AJUSTE DE PRESIÓN BOMBA MANUAL
