Possibili variazioni senza preavviso!
IT
Manuale di istruzioni per
CENTRALINA MINILIFT C40 - C50
Page: D846M5L.009
Date of Issue: 14/03/2012
Version: Rev. 02
Approved: UT

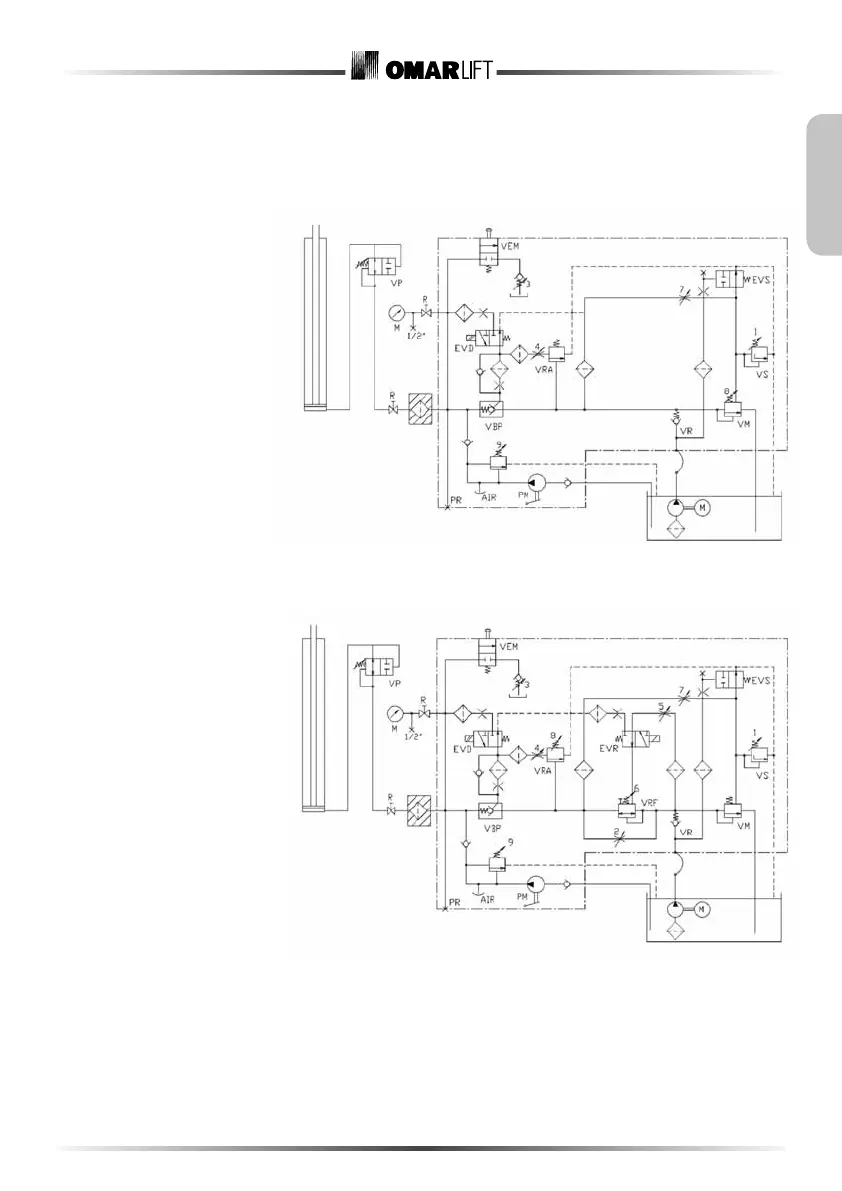

3.2.3. Minilift a 1 velocità - Schema Idraulico e di velocità
3.2.4. Minilift a 2 velocità - Schema Idraulico e di velocità
Figura 5
Figura 6
LEGENDA:
1 - TARATURA VALVOLA MASSIMA PRESSIONE
2 - REGOLAZIONE BASSA VELOCITÀ
3 - REGOLAZIONE CONTROPRESSIONE ED
ANTISCARRUCOLAMENTO FUNI
4 - PROVA REAZIONE VP
5 - STROZZATORE RALLENTAMENTO DA ALTA A
BASSA VELOCITÀ
6 - LIMITATORE VELOCITÀ SALITA
7 - STROZZATORE MESSA IN PRESSIONE E
PARTENZA IN SALITA
8 - REGOLAZIONE VELOCITÀ DI DISCESA
9 - TARATURA PRESSIONE POMPA A MANO
