The manufacturer reserves the right to make changes without prior notice!
GB
Operating instructions for
MINILIFT PUMP UNIT C40 - C50
Page: D846M5L.009
Date of Issue: 14/03/2012
Version: Rev. 02
Approved: UT

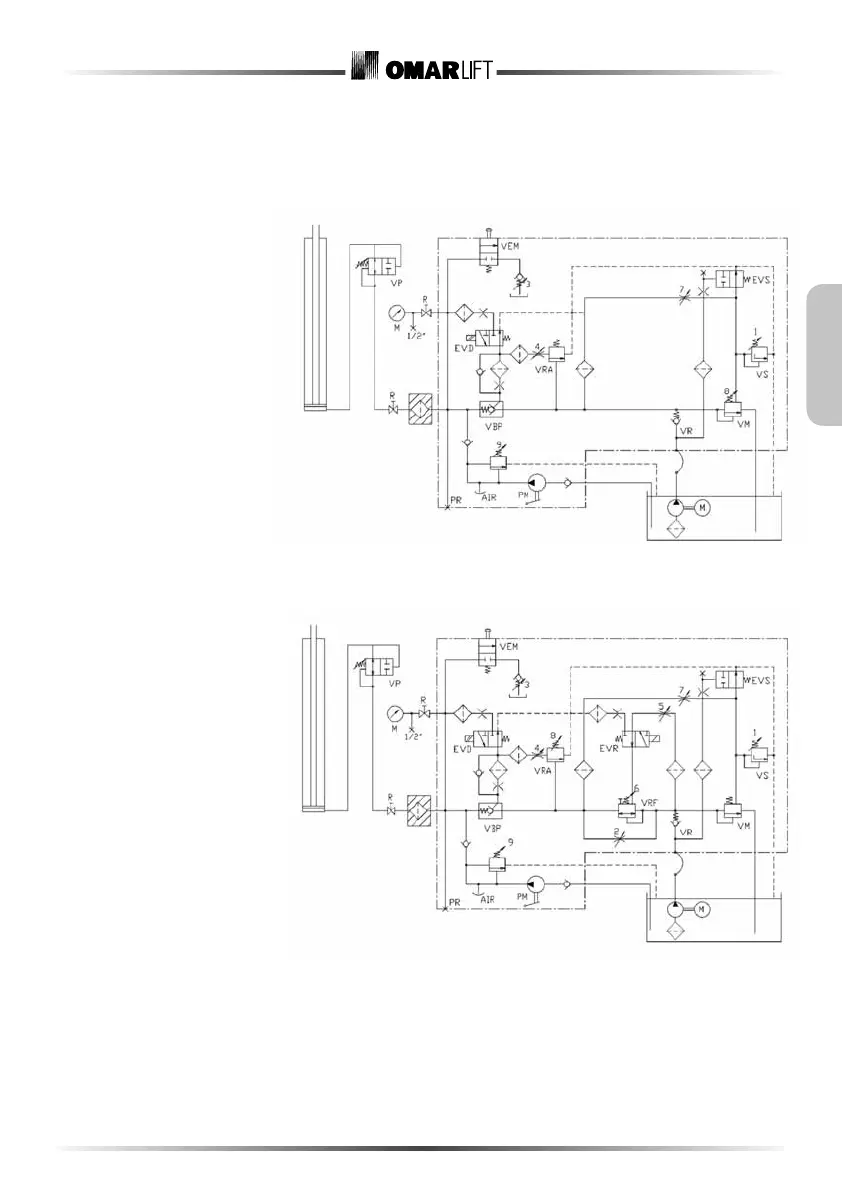

3.2.3 1-speed Minilift - Hydraulic and speed diagram
3.2.4 2-speed Minilift - Hydraulic and speed diagram
Figure 5
Figure 6
LEGEND:
1 - MAXIMUM PRESSURE VALVE CALIBRATION
2 - LOW SPEED ADJUSTMENT
3 - ADJUSTMENT OF COUNTERPRESSURE AND
ROPE ANTI-FLEETING
4 - PRESSURE VALVE REACTION TEST
5 - CHOKE DEVICE FOR DECELERATING FROM
HIGH TO LOW SPEED
6 - ASCENT SPEED LIMITER
7 - CHOKE DEVICE FOR PRESSURISING AND
ASCENT START
8 - DESCENT SPEED ADJUSTMENT
9 - CALIBRATION OF HAND PUMP PRESSURE
