8.10 Output Configuration (OUT CFG)
Followings are the values changeable at the Output Configuration Mode.
1) Position Transmitter Direction (PTM NORM / REVS)
2) Position Transmitter Zero / End (PTM ZERO / ENd)
3) Back Calculation (bACKCAL oFF / on)
8.10.1 Position Transmitter Direction (PTM NORM / REVS)
The analog feedback signal from the positioner can be changed to normal (NORM) or reverse
(REVS), which means they are the same or reversed direction as the actual position.

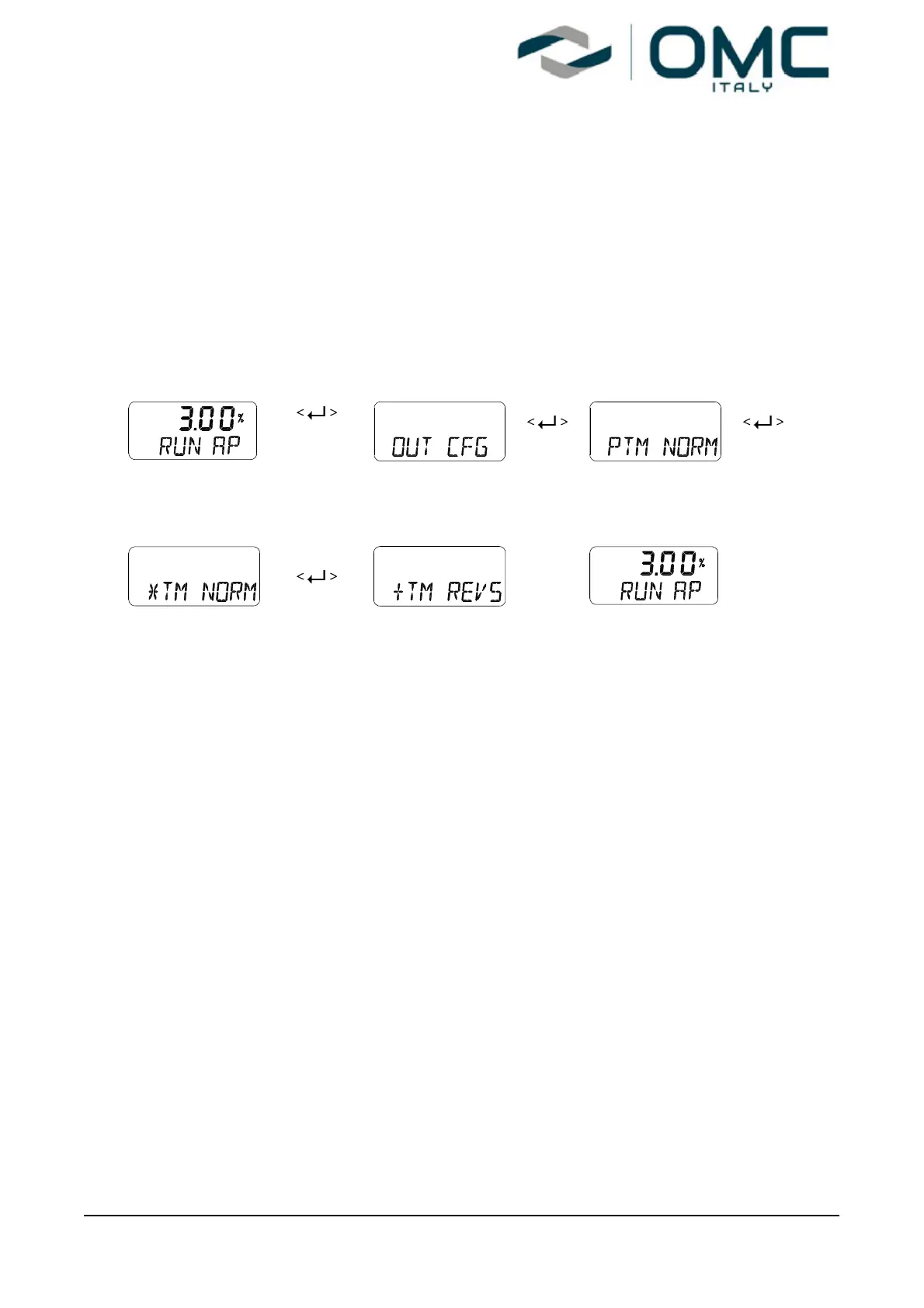

3 seconds

 
Press <UP> or
<DOWN> button
if the above is not
displayed.
Press <UP> or
<DOWN> button
if the above is not
displayed.
<UP>/<DOWN>

<ESC>
3 times

