Wiring
Connections

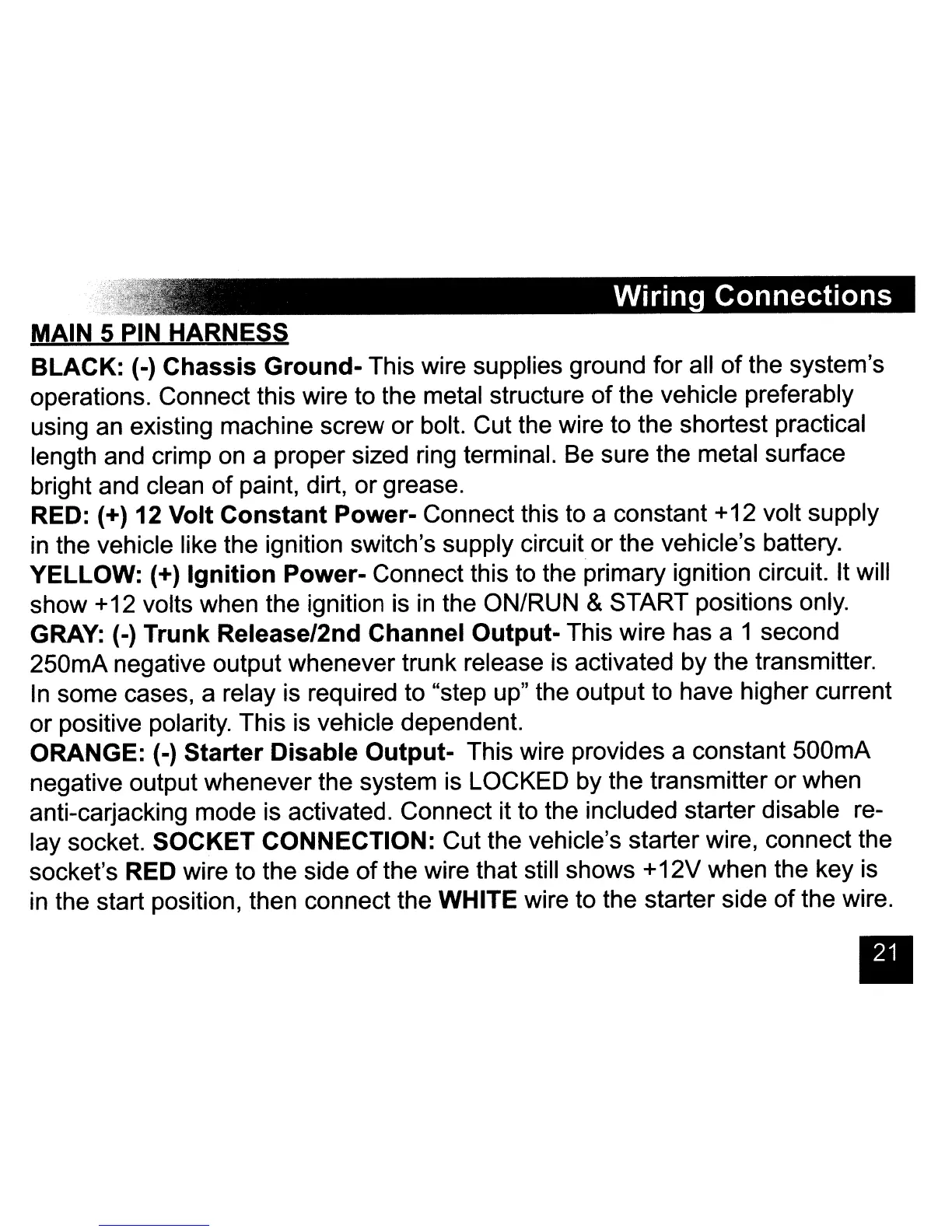

MAIN 5 PIN HARNESS
BLACK:
(-)
Chassis
Ground-
This wire supplies ground for all
of
the system's
operations. Connect this wire to the metal structure
of
the vehicle preferably
using an existing machine screw
or
bolt. Cut the wire to the shortest practical
length and crimp on a proper sized ring terminal. Be sure the metal surface
bright and clean
of
paint, dirt,
or
grease.
RED: (+) 12
Volt
Constant
Power-
Connect this to a constant +12 volt supply
in
the vehicle like the ignition switch's supply circuit
or
the vehicle's battery.
YELLOW: (+)
Ignition
Power-
Connect this to the primary ignition circuit. It will
show +12 volts when the ignition is
in
the ON/RUN &START positions only.
GRAY: (-)
Trunk
Release/2nd
Channel
Output-
This wire has a 1 second
250mA negative output whenever trunk release is activated by the transmitter.
In
some cases, a relay is required to "step up" the output to have higher current
or
positive polarity. This is vehicle dependent.
ORANGE: (-)
Starter
Disable
Output-
This wire provides a constant 500mA
negative output whenever the system is LOCKED by the transmitter or when
anti-carjacking mode is activated. Connect it to the included starter disable re-
lay socket. SOCKET CONNECTION: Cut the vehicle's starter wire, connect the
socket's RED wire to the side
of
the wire that still shows +12V when the key is
in
the start position, then connect the WHITE wire to the starter side
of
the wire.
•
