Omega REC-12 User Manual

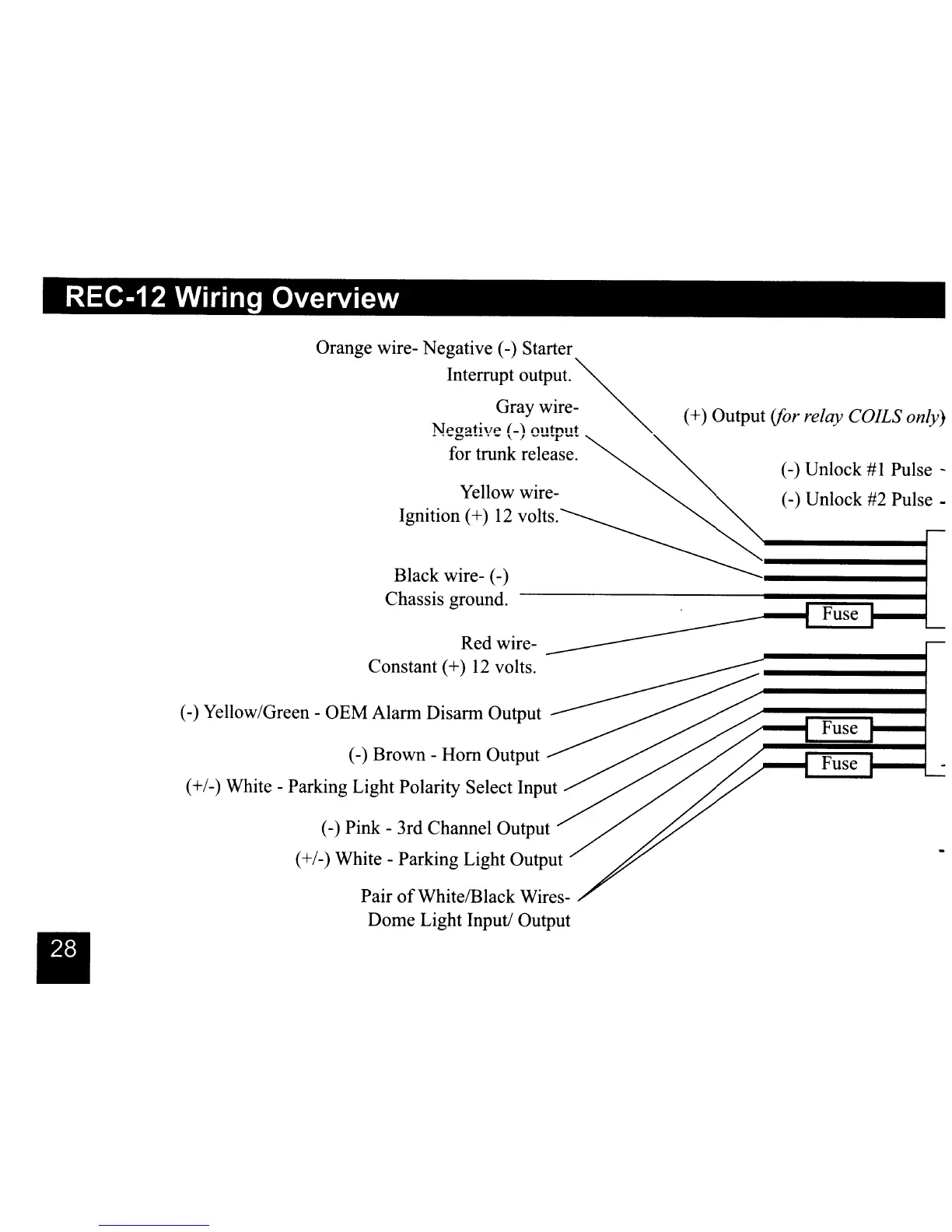

REC-12 Wiring Overview
Fuse
Fuse
(-) Unlock
#1 Pulse -
(-) Unlock #2 Pulse -
(+) Output
(for relay COILS only)
Yellow wire-
Ignition (+)
12 volts.
Black wire- (-)
Chassis ground.
--------------~~~~-..,
Orange wire- Negative (-) Starter
Interrupt output.
Gray wire-
Npo~ti"p (_ '\ Ol1tnllt
- ·-O-_A.- \. I ~--t'--
for trunk release.
Red wire-
Constant
(+) 12 volts.
(-) Brown -
Hom Output
(+/-) White - Parking Light Polarity Select Input
(-) Pink - 3rd Channel Output
(+/-) White - Parking Light Output
Pair
of White/Black Wires-
Dome Light Input! Output
(-) Yellow/Green - OEM
Alann Disann Output
•

Omega REC-12 Specifications

General

Brand	Omega
Model	REC-12
Category	Remote Starter
Language	English
