Omicron C-Probe 1 User Manual

AC/DC Current Clamp C-Probe 1
16
4.1 Description of the operating elements

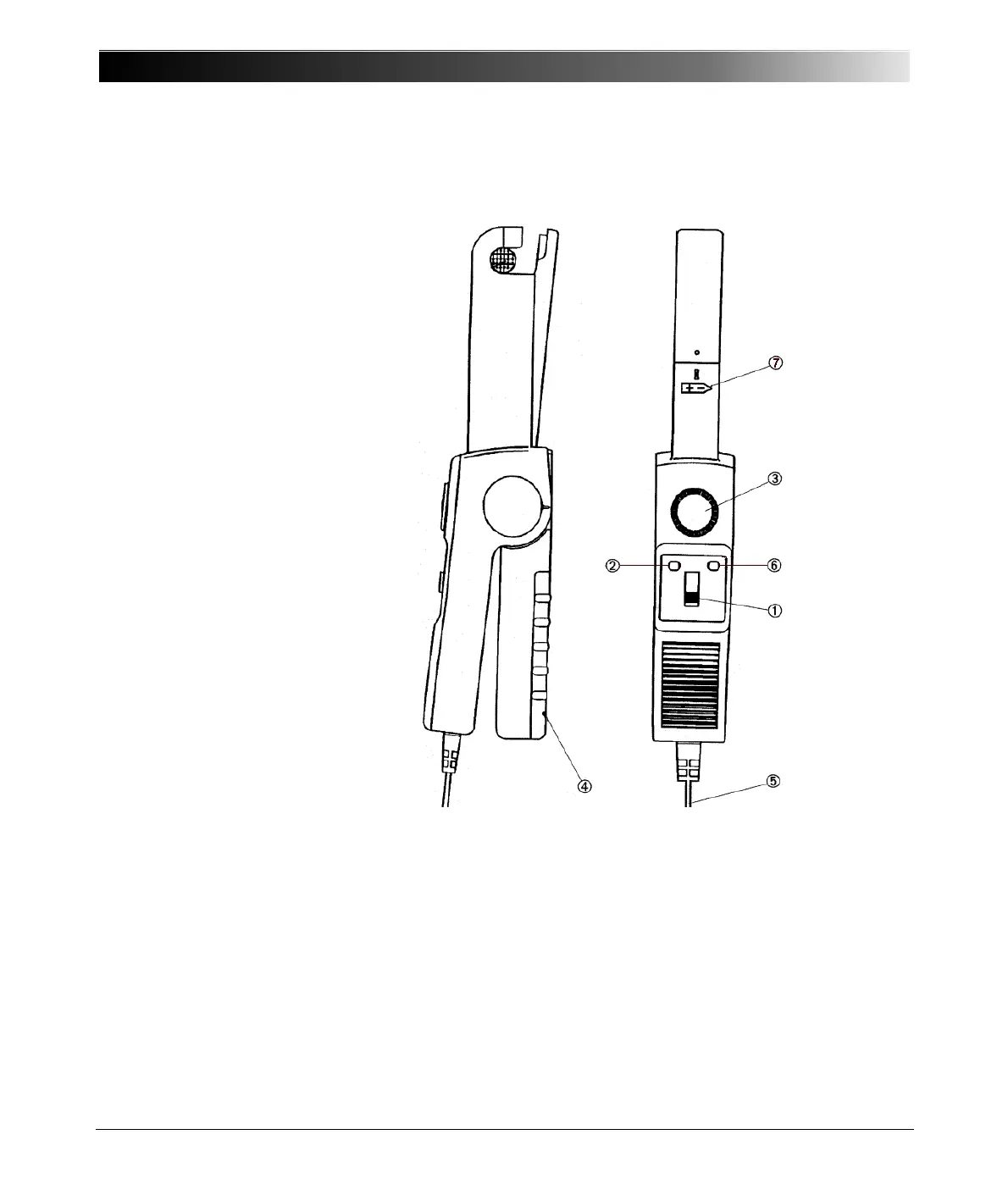

Figure 4-2:
Operating elements of
C-Probe 1
Legend:
1. Slide switch with 3 positons (OFF, 10 mV/A, 100 mV/A).
2. Battery condition indicator.
3. Zero adjustment of the current clamp.
4. Battery compartment.
5. Connecting cable, 2 meter with banana plugs.
6. Control indicator for measurement range overflow (OL).
7. Arrow symbol, reference flow direction of the DC current to be measured.
