3.4.1 Test Settings for TRRatio

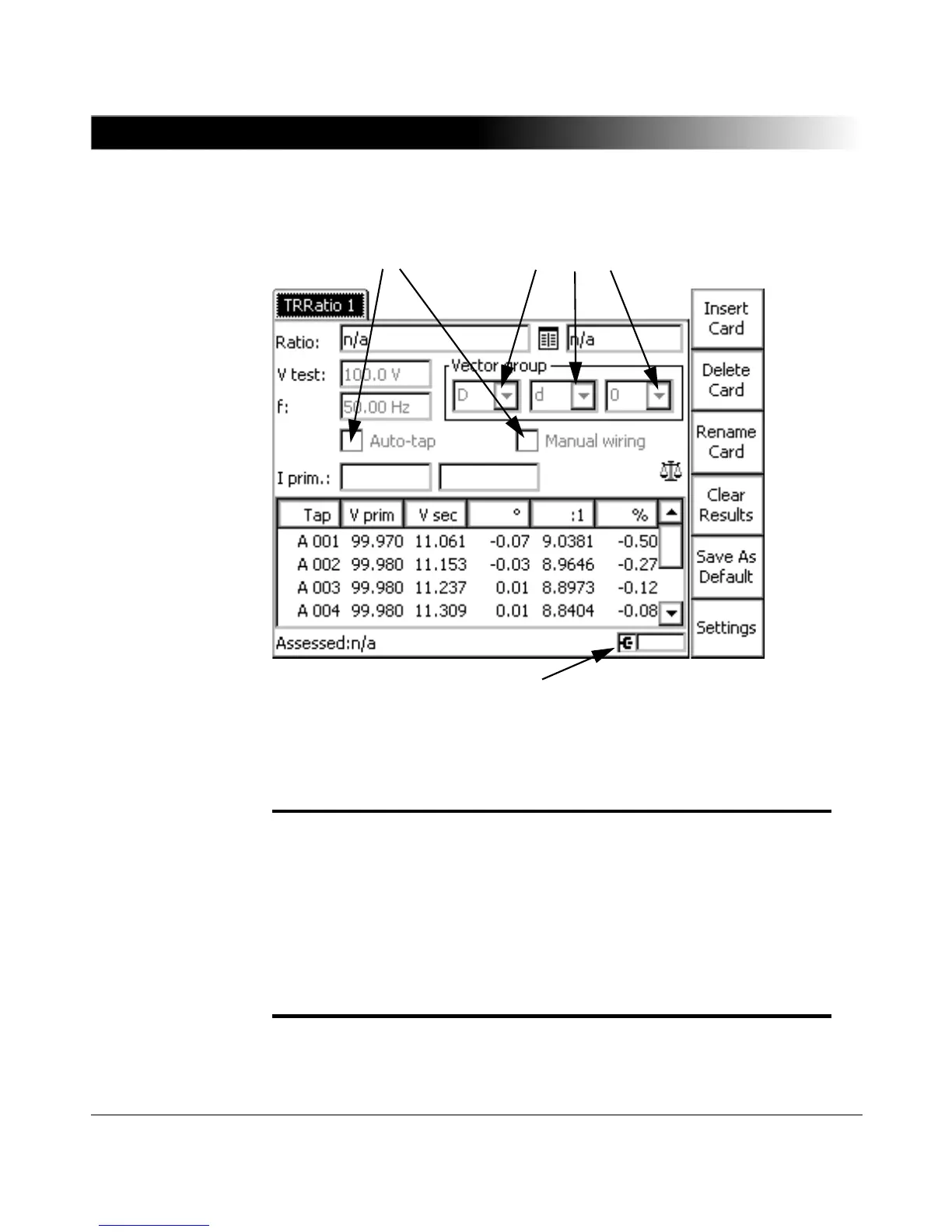

Figure 3-2 TRRatio test card
Navigate to the parameter fields and enter the values according to your test
requirements:
Ratio table: Nominal ratios of all taps, calculated
from Vprim nom / Vsec nom
Vtest: Nominal primary injection voltage
f: Output frequency
Operation mode: Depending on the Auto-tap or
Manual wiring settings (see
3.4.2 "Performing Measurements with
TRRatio" on page 42)
Vector group: Selection depending on the settings
