CP SB1 User Manual

The ripple and slope values are indicated at the TRTapCheck test card’s

measurement table (see Figure 3-8 "Measurement table with relevant columns

for winding resistance measurement").

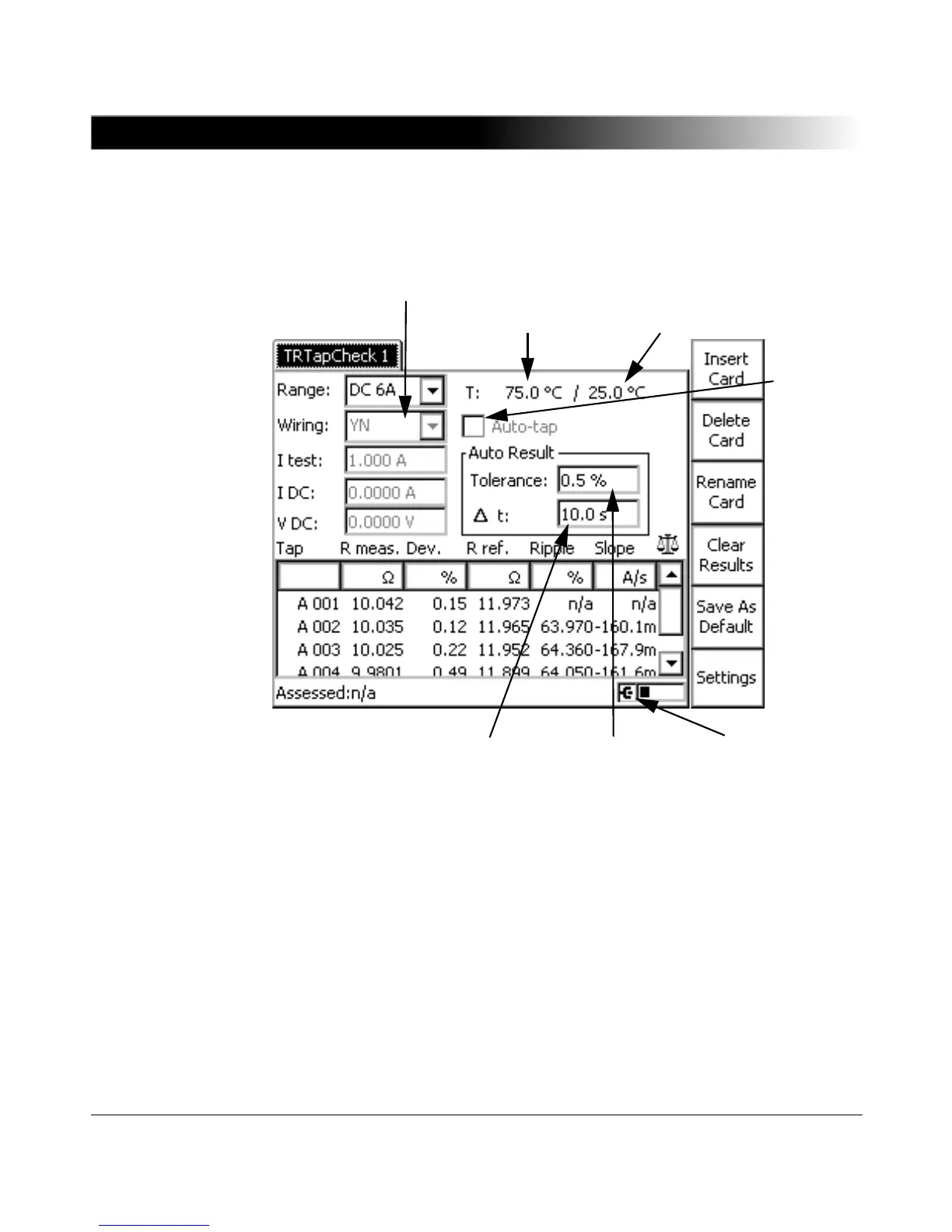

Figure 3-6 TRTapCheck test card

CP SB1 connected

Select the winding connection

Tolerance in percent

Settling time

Actual specimen temperatureReference temperature

Auto-

mated

tap

opera-

tion
