Omron 3G3RX-V1 Series User Manual

7．Connection Procedure

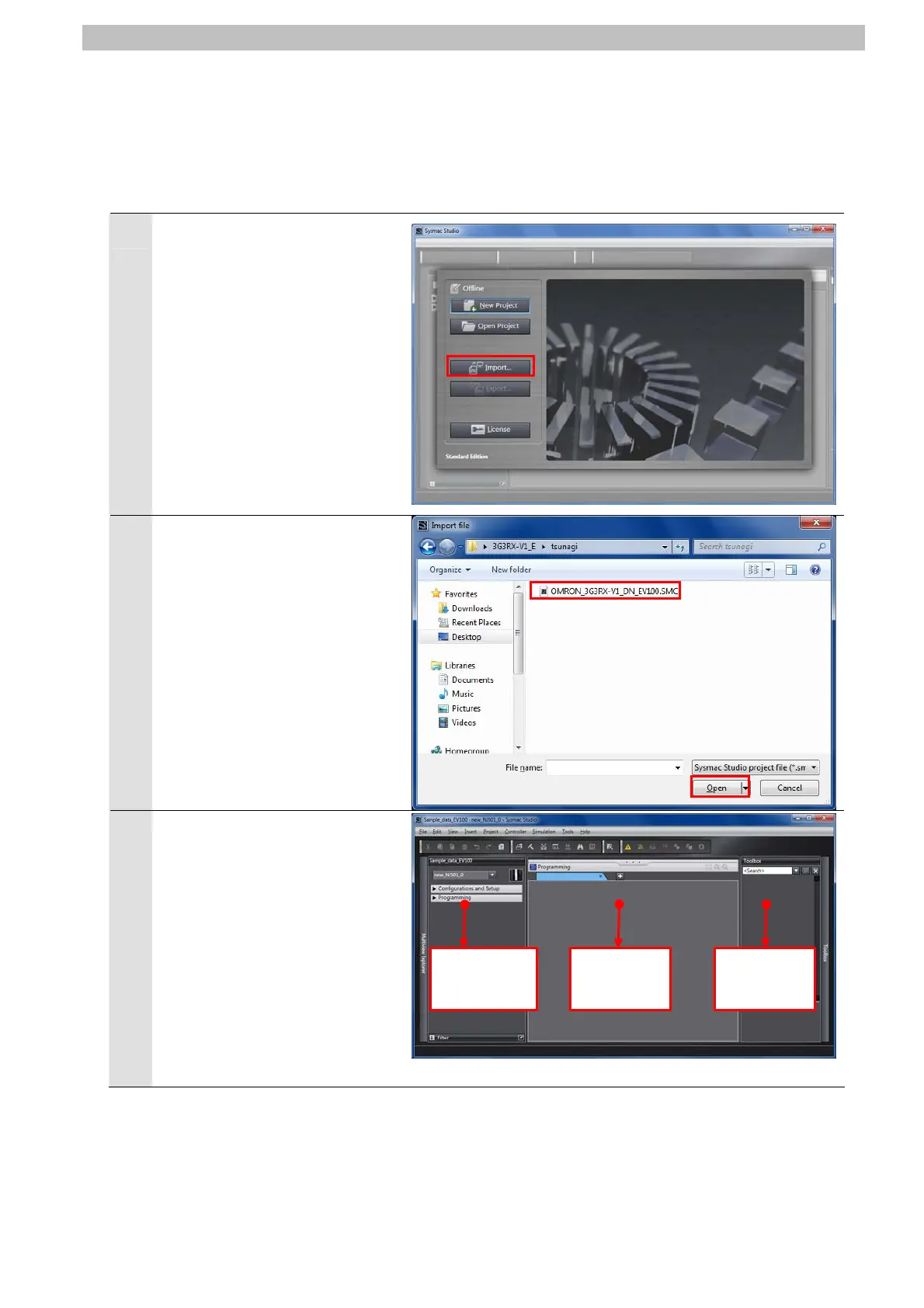

7.4.2. Starting the Sysmac Studio and Importing the Project File
Start the Sysmac Studio, and import the Sysmac Studio project file.
Install the Sysmac Studio and USB driver in the personal computer beforehand.
1
Start the Sysmac Studio.
Click the Import Button.
*If a confirmation dialog for an
access right is displayed at
start, select to start.
2
The Import File Dialog Box is
displayed. Select
OMRON_3G3RX-V1_DN_EV10
0.SMC (Sysmac Studio project
file) and click the Open Button.
*Obtain the Sysmac Studio
project file from OMRON.
3
OMRON_3G3RX-V1_DN_V100
project is displayed.
The left pane is called Multiview
Explorer, the right pane is called
Toolbox and the middle pane is
called Edit Pane.
*If an error dialog box is
displayed, check the version of
the Sysmac Studio.
Edit Pane
Edit Pane
Toolbox
Multiview
Explorer
22
