6 DriveProgramming Commands
6 - 12
DriveProgramming User’s Manual (I622-E1)

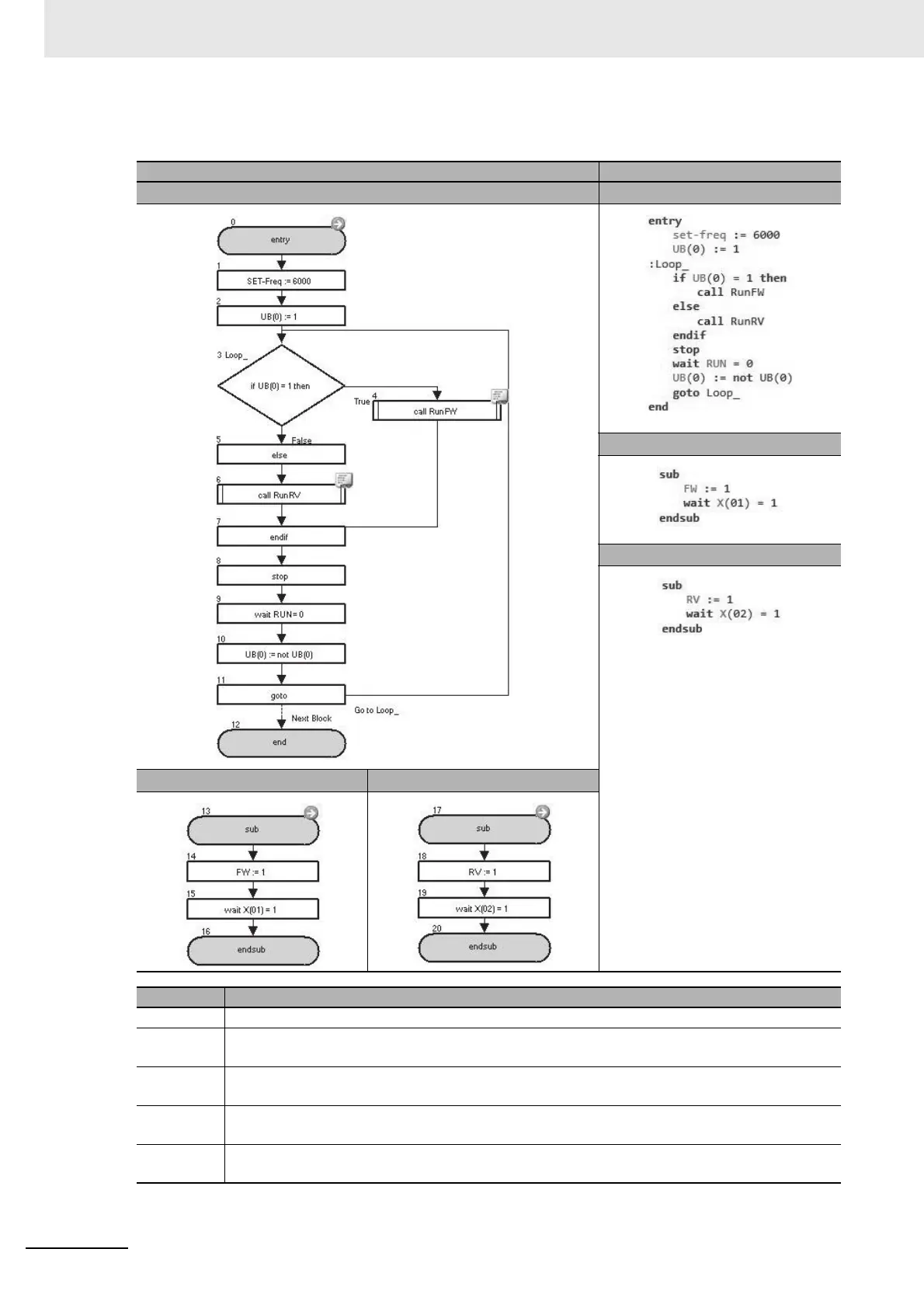

Example
Flowchart Text
Main Main
Main: RunFW
Main: RunRV
Main: RunFW Main: RunRV
Block number
Operation
1 and 2 Sets the inverter output frequency to 60.00 Hz and changes the internal user contact UB(0) to ON.
3 to 7 If UB(0) is ON, it executes the subroutine RunFW. If UB(0) is OFF, it executes the subroutine
RunRV.
8 to 11 When execution of the subroutine is completed, it stops the inverter, waits for RUN to change to
OFF, reverses UB(0), and returns to block 3.
13 to 16 Operates the inverter in the forward direction and waits with the “wait” command until X(01)
changes to ON. (subroutine: RunFW)
17 to 20 Operates the inverter in the reverse direction and waits with the “wait” command until X(02)
changes to ON. (subroutine: RunRV)
