4 - 3
4 DriveProgramming Editor
DriveProgramming User’s Manual (I622-E1)
4-1 Starting DriveProgramming Editor
4
Use the following method to start the CX-Drive: from the Windows [Start] Menu, select [All Programs] -
[OMRON] - [CX-One] - [CX-Drive]. Click the CX-Drive icon in the CX-Drive folder.

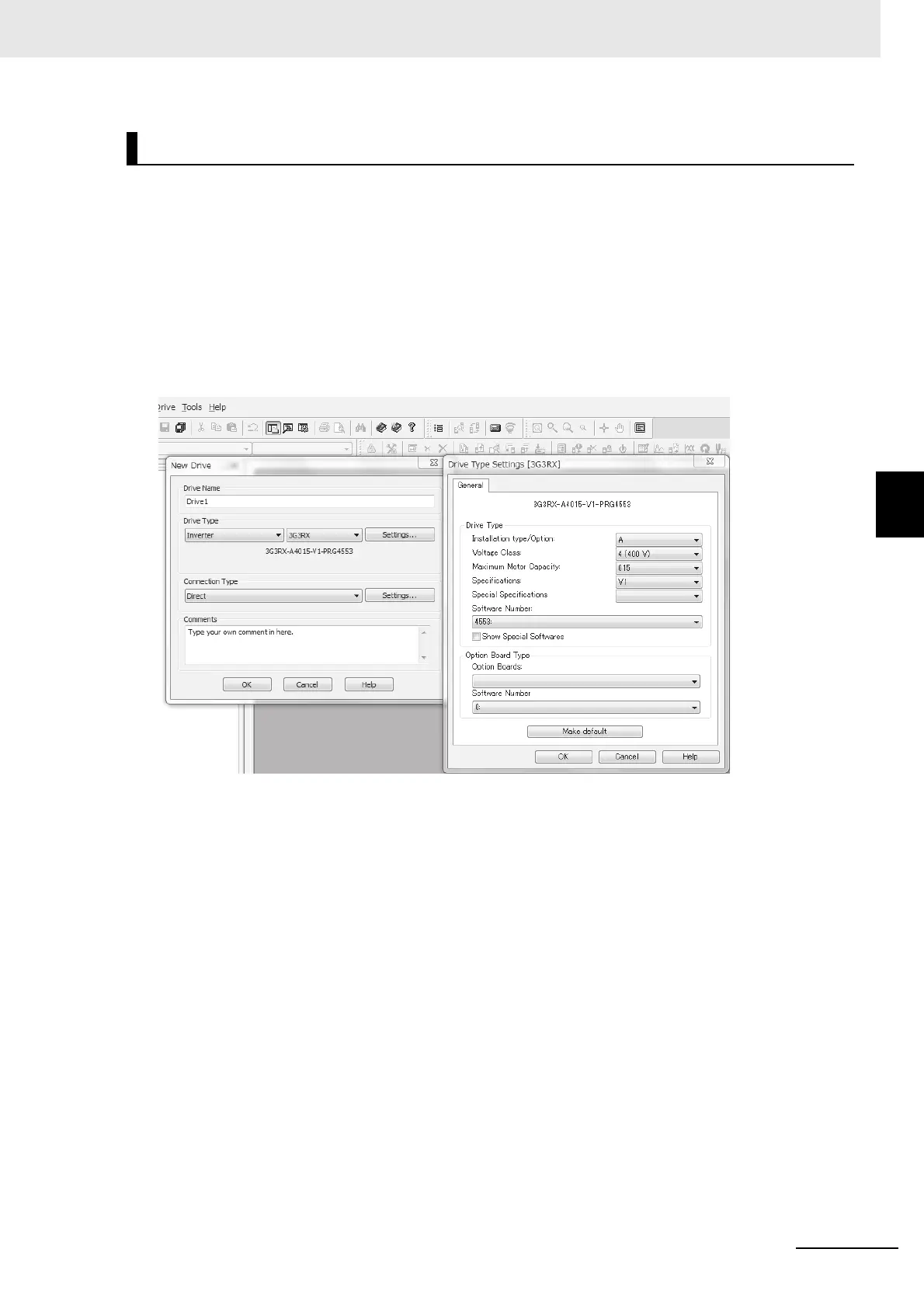

After the CX-Drive is started, select [File] from the CX-Drive Menu and click [New] to create a new
CX-Drive file. The [New Drive] dialog box will appear.
Select 3G3RX2 series from the pull-down list under the [Drive Type]. Click the [Settings] button to the
right.
In the [Drive Type Settings] dialog box, set [Installation Type/Option], [Voltage Class], and [Maximum
Motor Capacity].
After setting these items, click the [OK] button to close the [Drive Type Settings] dialog box.
Starting CX-Drive
