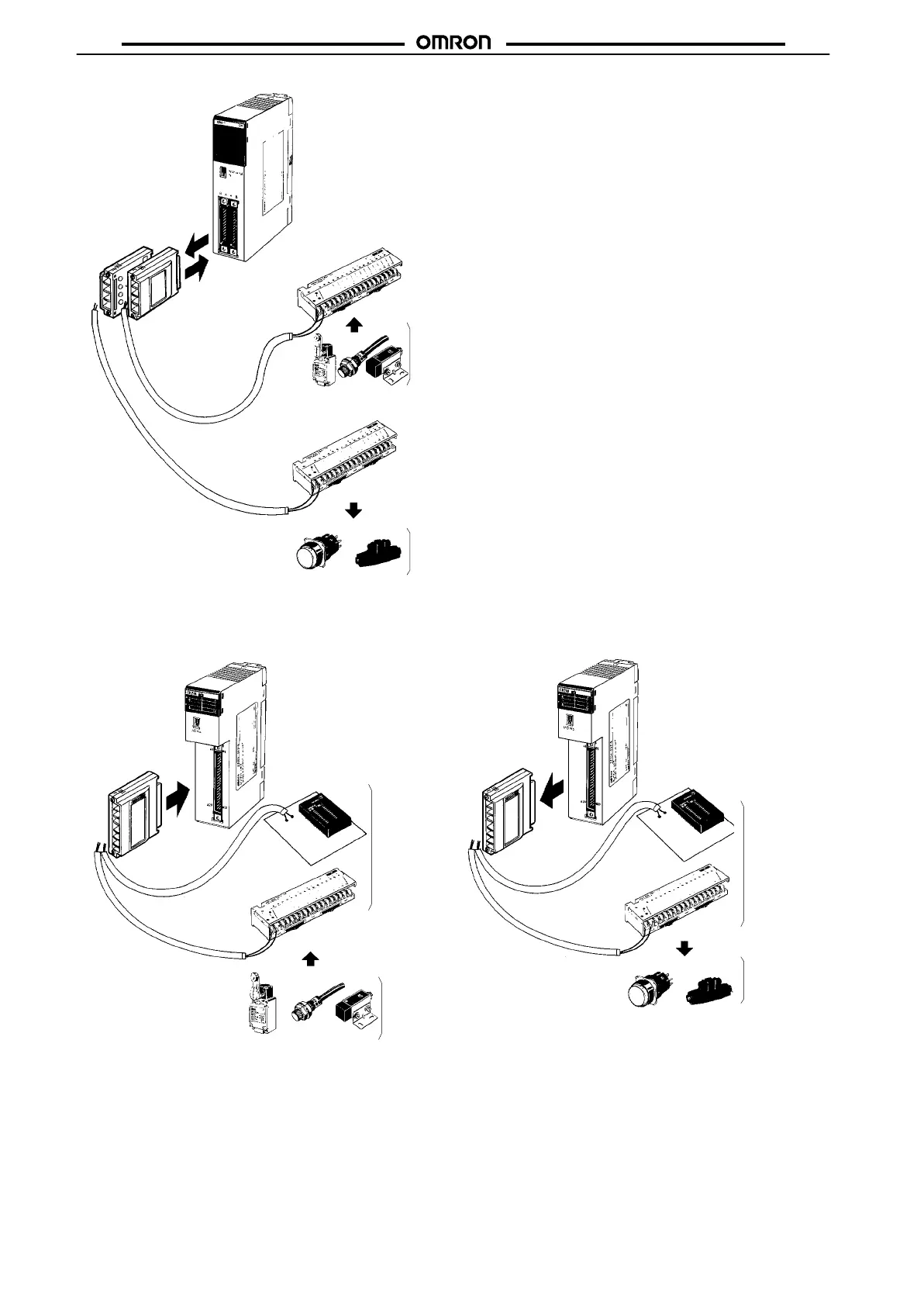

C200H Multi-point I/O Unit (Group 2)
B7A PLC connector
model (16 points)
Input Unit
B7A-T6E3 (CH1)
B7A-T6E8 (CH1)
C200H-MD215/
C200H-MD115 I/O Units
Note:
The C200H-MD215 or
C200H-MD115 cannot be
used in dynamic mode.
Output Unit
B7A-R6A13 (CH2)
B7A-R6A33 (CH2)
B7A-R6A18 (CH2)
B7A-R6A38 (CH2)
B7A/B7AS
Input Unit
(16 points)
Limit switch,
proximity sensor,
or photoelectric
sensor
B7A/B7AS
Output Unit (16 points)
Indicator
or valve
B7A PLC connector
model (32 points)
Output Unit
B7A-R3A13
B7A-R3A33
B7A-R3A18
B7A-R3A38
C200H-ID216
Input Unit
B7A/B7AS
Input Unit
(16 points)
Limit switch,
proximity sensor,
or photoelectric
sensor
C200H-OD218
Output Unit
B7A/B7AS Output
Unit (16 points)
Indicator
or valve
B7A PLC connector
model (32 points)
Input Unit
B7A-T3E3
B7A-T3E8
CH1
CH2
