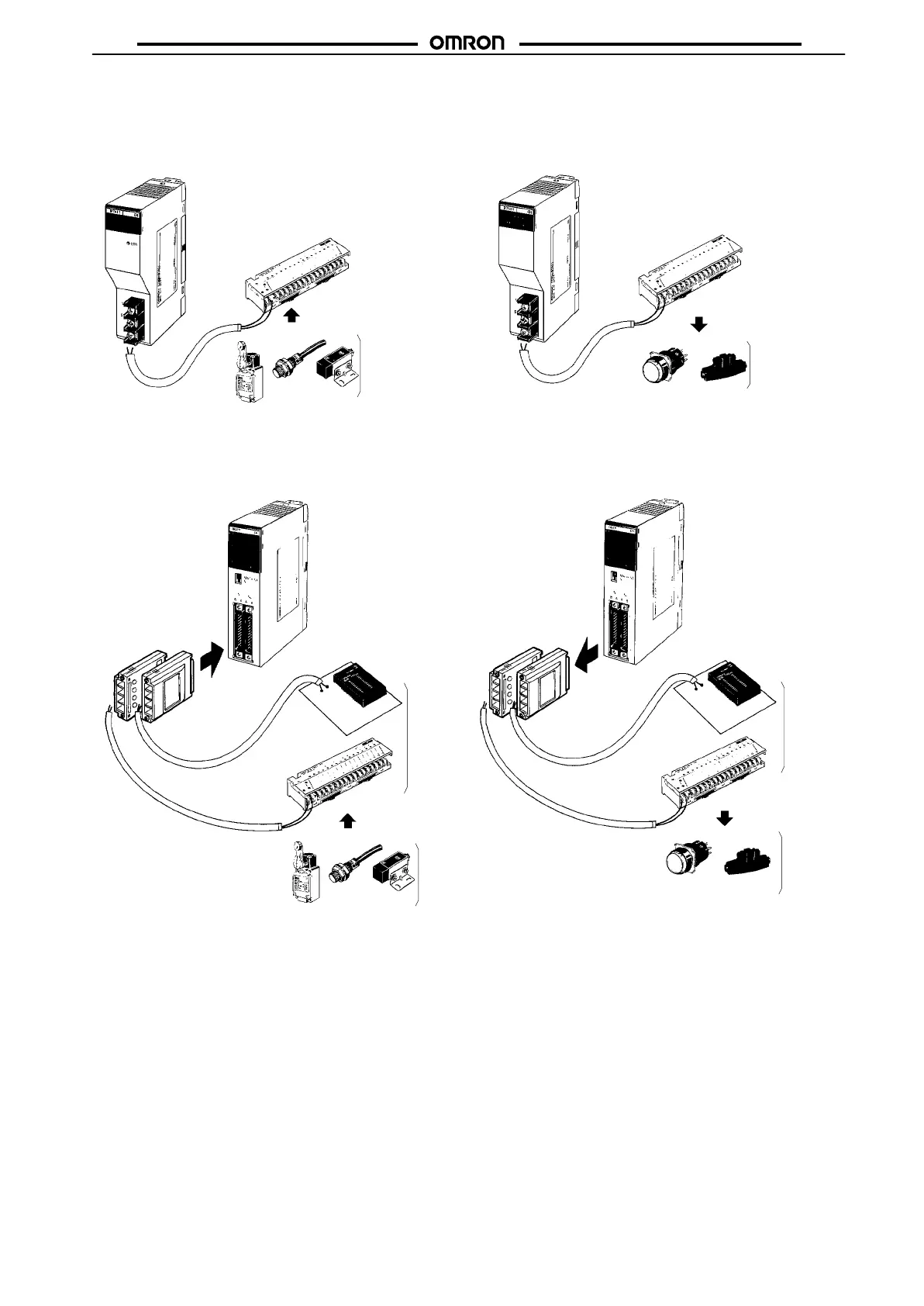

Connection with CS1/SYSMAC C200HX/C200HG/C200HE/C200H/C200HS
C200H B7A Interface Unit
C200H I/O Unit
C200H-B7AI1
Input Unit
B7A/B7AS
Input Unit
(16 points)
Limit switch,
proximity sensor,
or photoelectric
sensor
C200H-B7AO1
Output Unit
B7A/B7AS
Output Unit
(16 points)
Indicator
or valve
B7A PLC connector
model (16 points)
Two Output Units
B7A-R6A13
B7A-R6A33
B7A-R6A18
B7A-R6A38
C200H-ID215
Input Unit
B7A/B7AS
Input Unit
(16 points)
Limit switch,
proximity sensor,
or photoelectric
sensor
B7A/B7AS
Output Unit
(16 points)
B7A PLC connector
model (16 points)
Two Input Units
B7A-T6E3
B7A-T6E8
C200H-OD215
Output Unit
Note:
The C200H-OD215 can-
not be used in dynamic
mode.
Indicator
or valve
