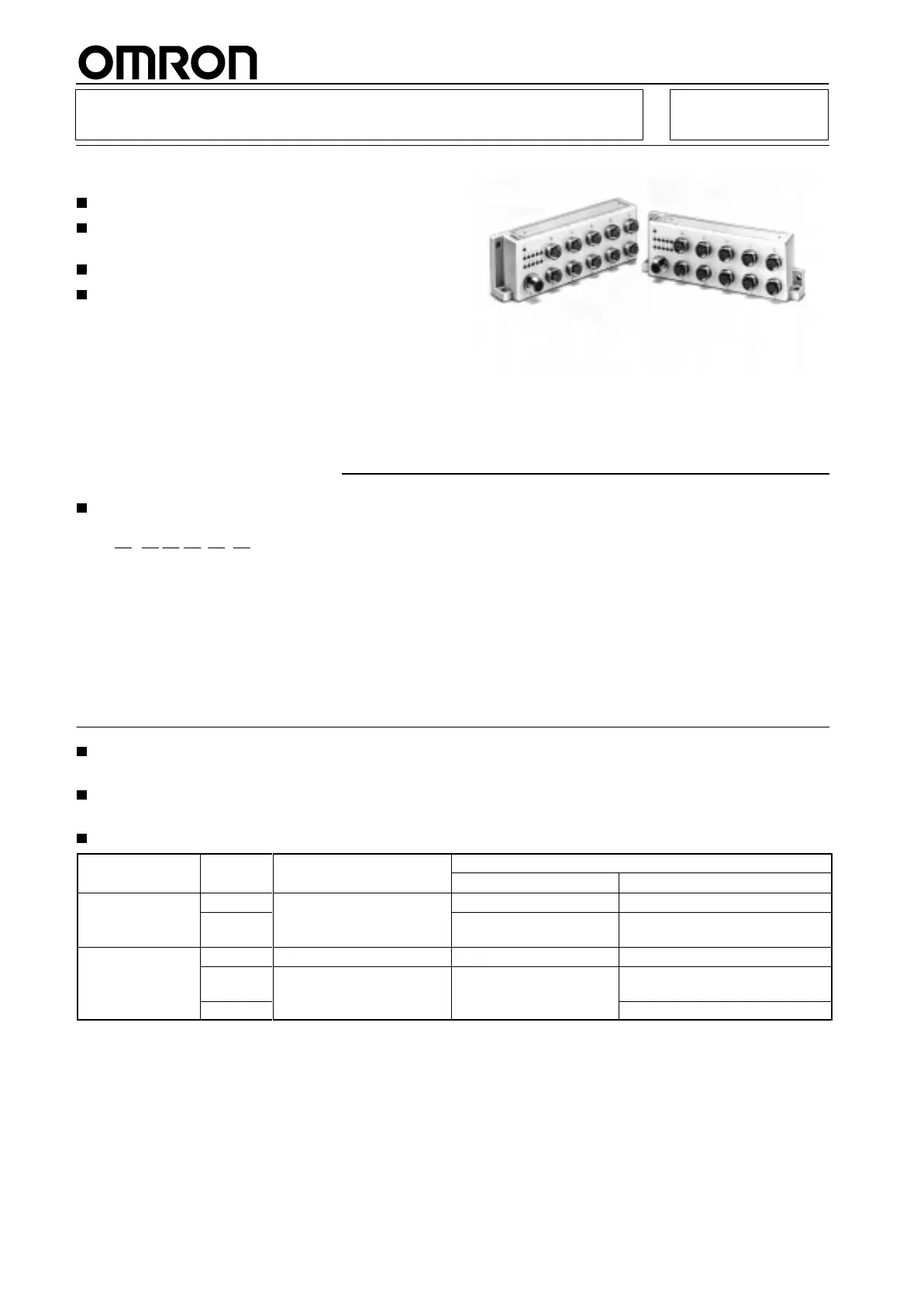

Link Terminals with Sensor I/O Connectors
B7AC
Water-resistive Transmission Unit
Compact and satisfies the requirements of IP67.
Incorporating an FA connector for limit switches,
proximity sensors, and photoelectric sensors.
Transmits 10 input signals.
Incorporating easy-to-see indicators for I/O signal
monitoring.
Ordering Information
Model Number Legend
B7AC - T 10 A 1 - A
34
1. Classification
C:F A connector model
2. Input/Output Classification
T: Input
3. Number of I/O
10: 10 points
4. F
A Connector/Contact Arrangement
A:
M12/type A (Refer to page 79 for details.)
5. I/O Delay Time (T ypical)
1:
19.2 ms
6. I/O Delay Selection (19.2 ms/3 ms)/Input Configuration
None: Without selection function/NPN
A: With selection function/NPN
B: With selection function/PNP
1 2 5 6
Product List
Refer to page 1 14 for details.
I/O Combinations
Refer to pages 1 to 5 for details.
Accessories (Attachment)
Name Model Material Suitable connector
Model Mounting part
Waterproof Cover XS2Z-11 Aluminum/white XS2G/XS2H/XS2M/XS2R M12 male screw
XS2Z-12 XS2C/XS2R/XS2F/XS2P M12 female screw (with mounting
bracket)
Dust Cover XS2Z-13 Polyvinyl chloride/transparent XS2G/XS2H/XS2M/XS2R M12 male screw
XS2Z-14 Polyvinyl chloride/red XS2C/XS2R/XS2F/XS2P M12 female screw (with mounting
bracket)
XS2Z-15 Contact block (female contact)
