Omron B7A - Connection with CVM1;CV Series

B7A
B7A
9
B7A PLC connector
model (32 points)
Two Output Units
B7A-R3A13
B7A-R3A33
B7A-R3A18
B7A-R3A38
C200H-ID217
Input Unit
B7A/B7AS
Input Unit
(16 points)
Limit switch,
proximity sensor,
or photoelectric
sensor
B7A PLC connector
model (32 points)
Two Input Units
B7A-T3E3
B7A-T3E8
C200H-OD219
Output Unit
B7A/B7AS
Output Unit
(16 points)
Indicator
or valve

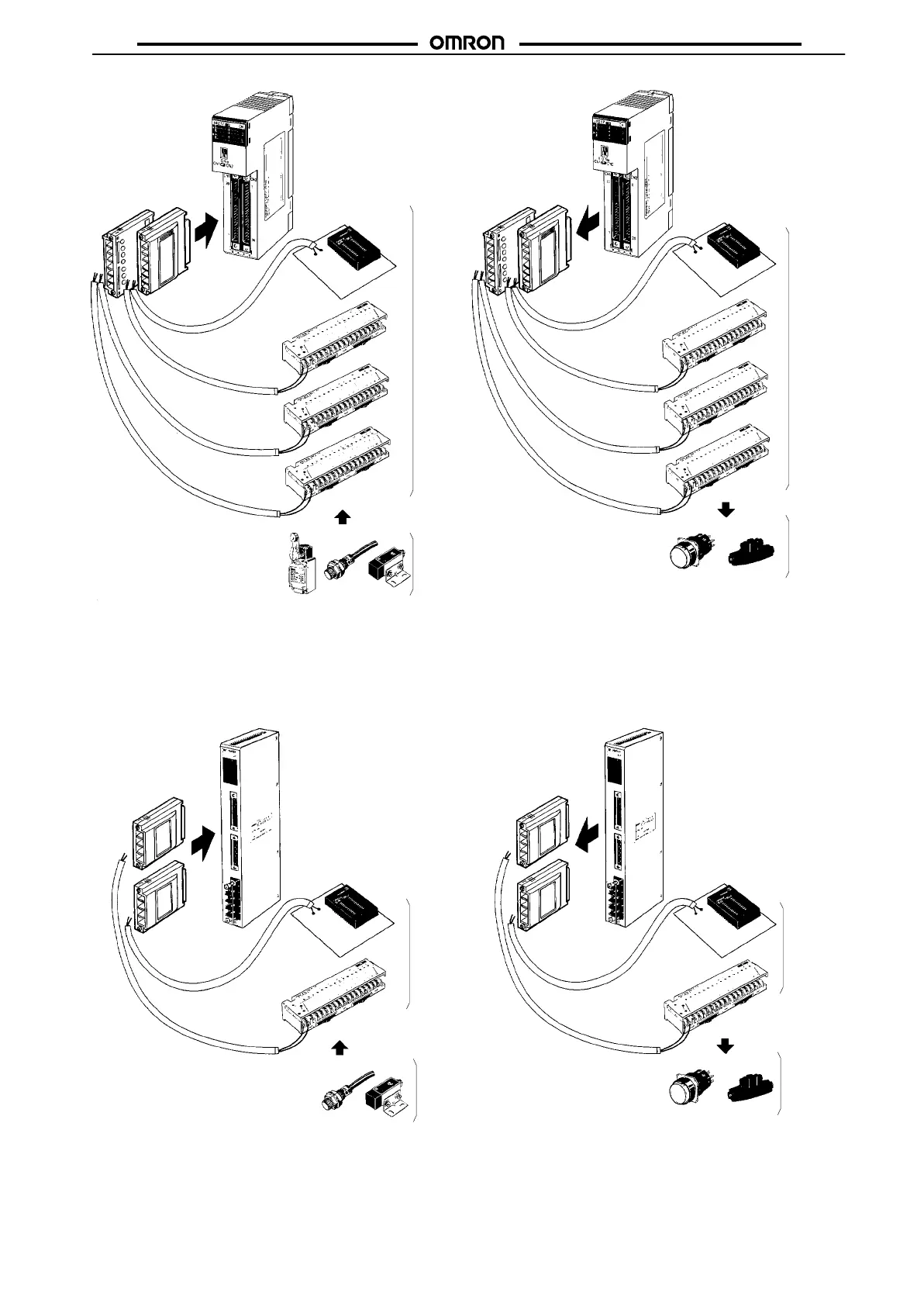

Connection with CVM1/CV Series
C500 I/O Unit
Note: The 3G2A5-OD215 cannot be connected due to the dif ference in terminal arrangement.
B7A PLC connector
model (16 points)
Two Output Units
B7A-R6A13
B7A-R6A33
B7A-R6A18
B7A-R6A38
3G2A5-ID218CN
Input Unit
B7A/B7AS
Input Unit
(16 points)
Limit switch,
proximity sensor,
or photoelectric
sensor
B7A/B7AS
Output Unit
(16 points)
B7A PLC connector
model (16 points)
Two Input Units
B7A-T6E3
B7A-T6E8
3G2A5-OD415CN
Output Unit
Indicator
or valve
