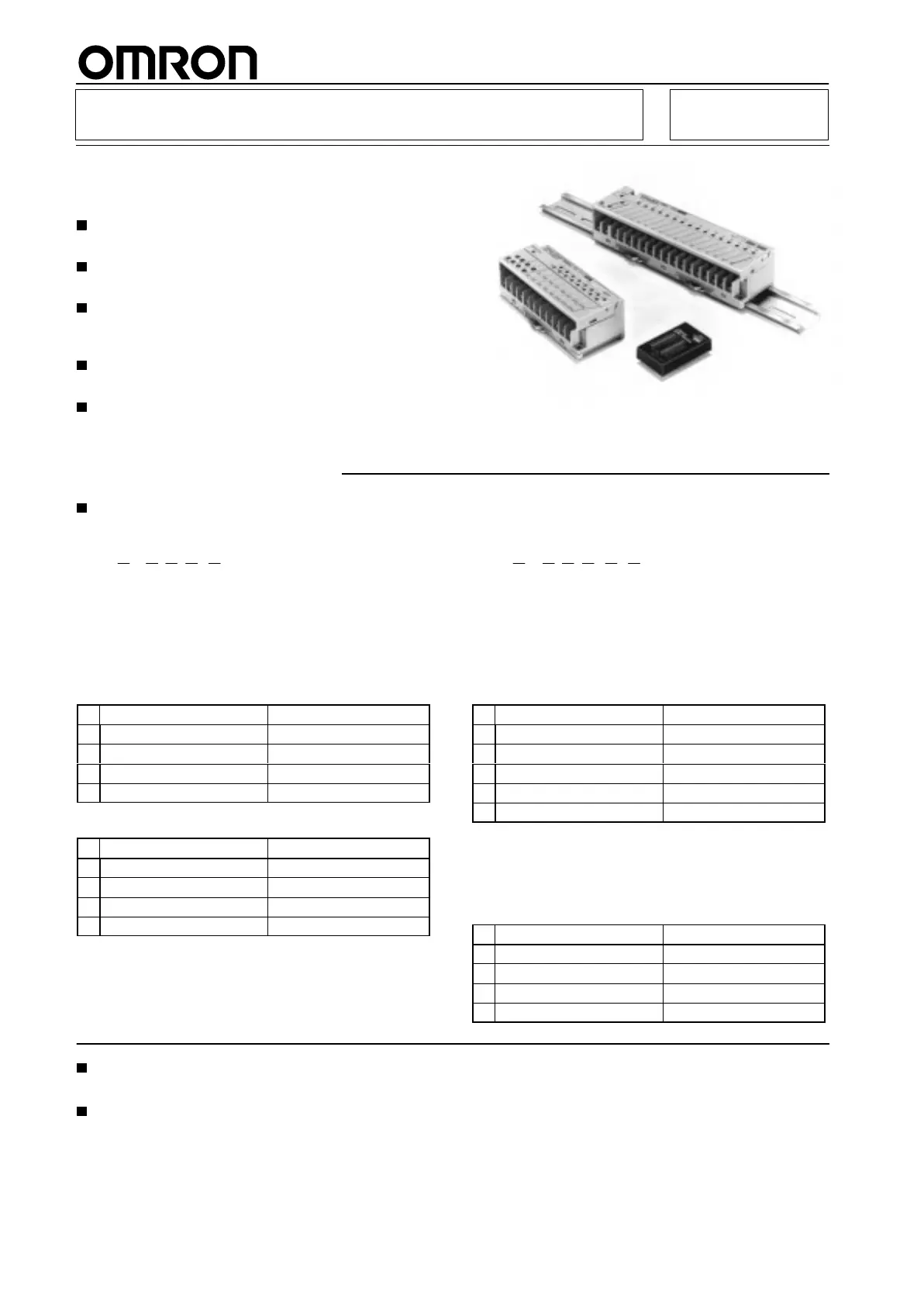

Omron B7A - B7 A;B7 As; Link Terminals with 16 I;O Points

16
Link Terminals with 16 I/O Points (Screw Terminal
and Modular Models)
B7A/B7AS
Transmit Signals while Saving Space
and Wiring Effort
More economical than previous multipoint trans-
mission terminals.
Transmit 16 input signals over just 2 wires (or 3
wires if only one Terminal has power supply.)
Models available with normal I/O delay time
(19.2 ms typical) or short I/O delay time (3 ms
typical).
Models available with the HOLD function or LOAD
OFF function for processing transmission errors.
A series of B7AS models as compact as 10-point
screw terminal models are available.
Ordering Information
Model Number Legend
Input Models
B7Aj - T 6 j j
1 234
1. Series
None: Standard
S: Small
2. Input/Output Classification
T: Input
3.
Number of I/O Points
6: 16
5
4. Input Logic/Internal I/O Common
4 Input logic Internal I/O common
A NPN compatible – common
B NPN compatible +/– common
C PNP compatible +/– common
D PNP (TTL) compatible ---
5. I/O Delay Time (T ypical)/Appearance
5
I/O delay time Appearance
1 19.2 ms Screw terminals
2 19.2 ms Module
6 3 ms Screw terminals
7 3 ms Module
Output Models
B7Aj - R 6 j j j
1 234
1. Series
None: Standard
S: Small
2. Input/Output Classification
R: Output
3.
Number of I/O Points
6: 16
5 6
4. Output Logic/Output Capacity
3 Output logic Output capacity
A NPN open collector 0.05 A/point
B NPN open collector 0.1 A/point
C NPN open collector 0.5 A/point
F PNP open collector 0.1 A/point
G PNP open collector 0.5 A/point
5. Error Processing
1: HOLD
3: LOAD OFF
5: HOLD/LOAD OFF
6. I/O Delay Time (T ypical)/Appearance
5
I/O delay time Appearance
1 19.2 ms Screw terminals
2 19.2 ms Module
6 3 ms Screw terminals
7 3 ms Module
Product List
Refer to page 1 14 for details.
I/O Combinations
Refer to pages 1 to 5 for details.
