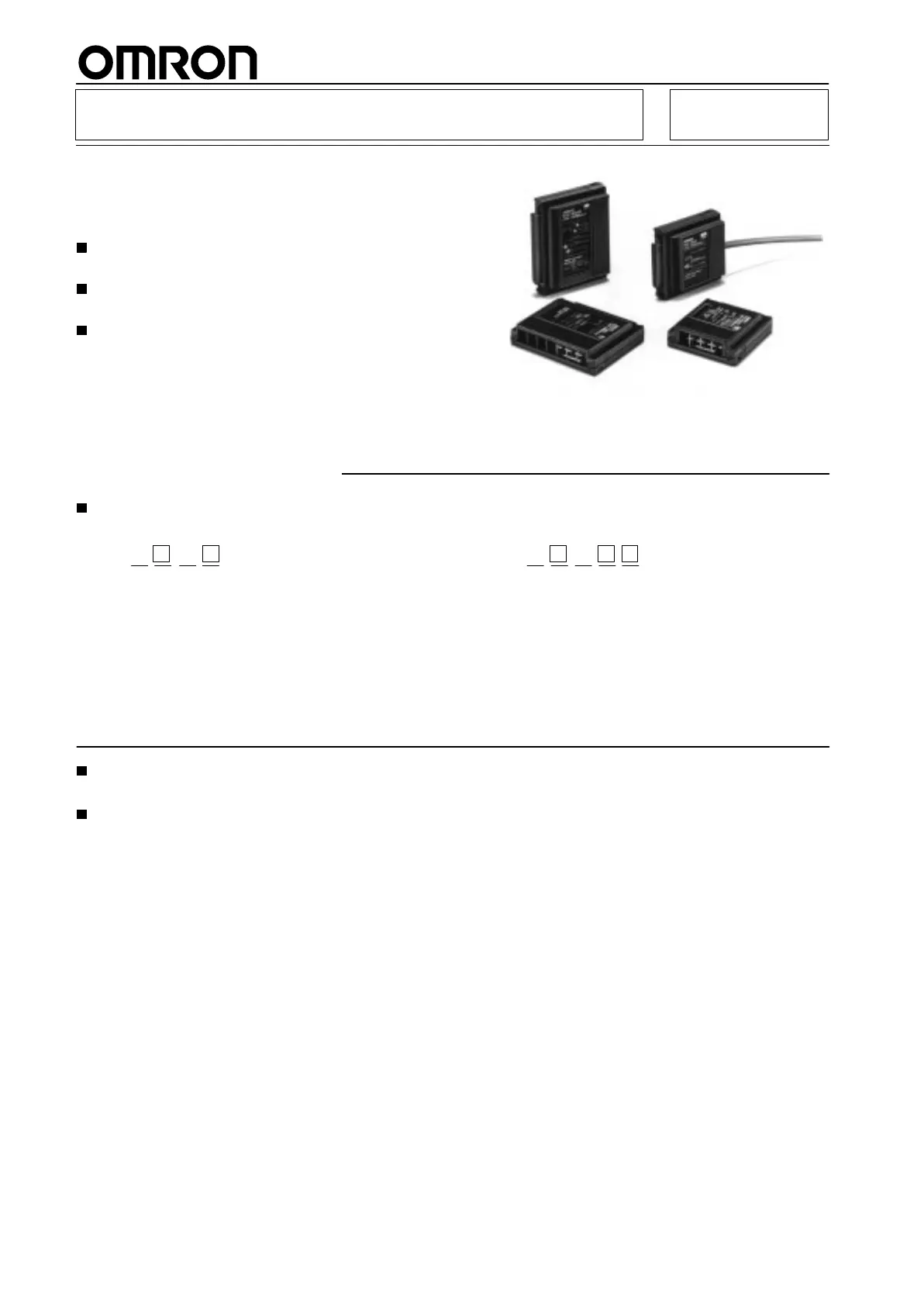

Link Terminals with PLC Connectors (16 and 32 I/O Points)
B7A
Transmit Signals while Saving Wiring
Effort and Space between the B7A and
PLC
Connecting to an OMRON PLC and 16-point B7A
with ease.
Models with 16-point terminals and 32-point
terminals are available.
Transmit 16 input signals over just 2 wires (or over 3
wires if only one terminal has power supply) and 32
input signals over just 3 wires (or over 4 wires if only
one terminal has power supply).
Ordering Information
Model Number Legend
Input Models
B7A - T E
1234
1. Input/Output Classification
T: Input
2. Number of I/O
6: 16
3: 32
3. Input Configuration
E: NPN compatible
4. I/O Delay Time (T ypical)
3:
19.2 ms
8: 3 ms
Output Models
B7A - R A
1234
1. Input/Output Classification
R:Output
2. Number of I/O
6: 16
3: 32
3. Output Configuration/
Capacity
A:
NPN open collector/
50 mA/point
4. Error Processing
1: HOLD
3: LOAD OFF
5. I/O Delay Time (T ypical)
3:
19.2 ms
8: 3 ms
5
Product List
Refer to page 1 14 for details.
I/O Combinations
Refer to pages 1 to 5 for details.
