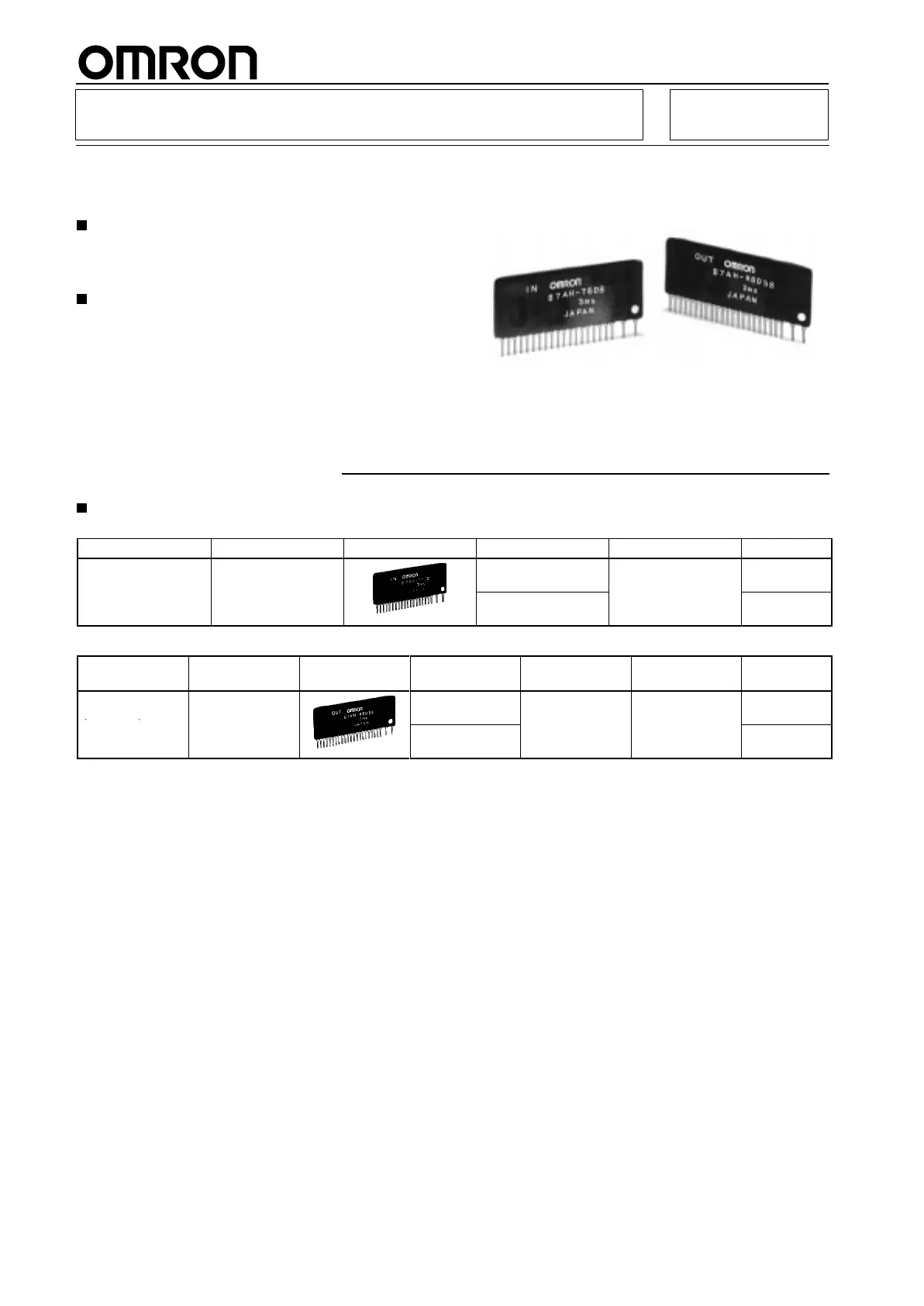

Hybrid IC Link Terminals B7AH
Slim 16-point Hybrid IC Link Terminals
that Mount to PCBs
Dimensions of input model: 46 × 9 × 20 mm (W × D ×
H)
Dimensions of output model: 51 × 9 × 20 mm (W × D
× H)
Normal-speed models (typical I/O delay time:
19.2 ms) and high-speed models (typical I/O delay
time: 3 ms) available.
Ordering Information
Product List
Input Models
I/O classification Wiring Appearance I/O delay time Input configuration Model
Input (transmission) Hybrid IC
Normal speed
(typical: 19.2 ms)
CMOS input
B7AH-T6D3
High speed (typical:
3 ms)
B7AH-T6D8
Output Models
I/O classification Wiring Appearance I/O delay time Output
configuration
Error
processing
Model
Output
(reception)
Hybrid IC
Normal speed
(typical: 19.2 ms)
CMOS output
2 mA/point
HOLD
LOAD OFF
(S l t bl )
B7AH-R6D53
()
High speed
(typical: 3 ms)
(Selectable)
B7AH-R6D58
