Omron B7A - CQM1 B7 A Interface Units

B7A
B7A
4

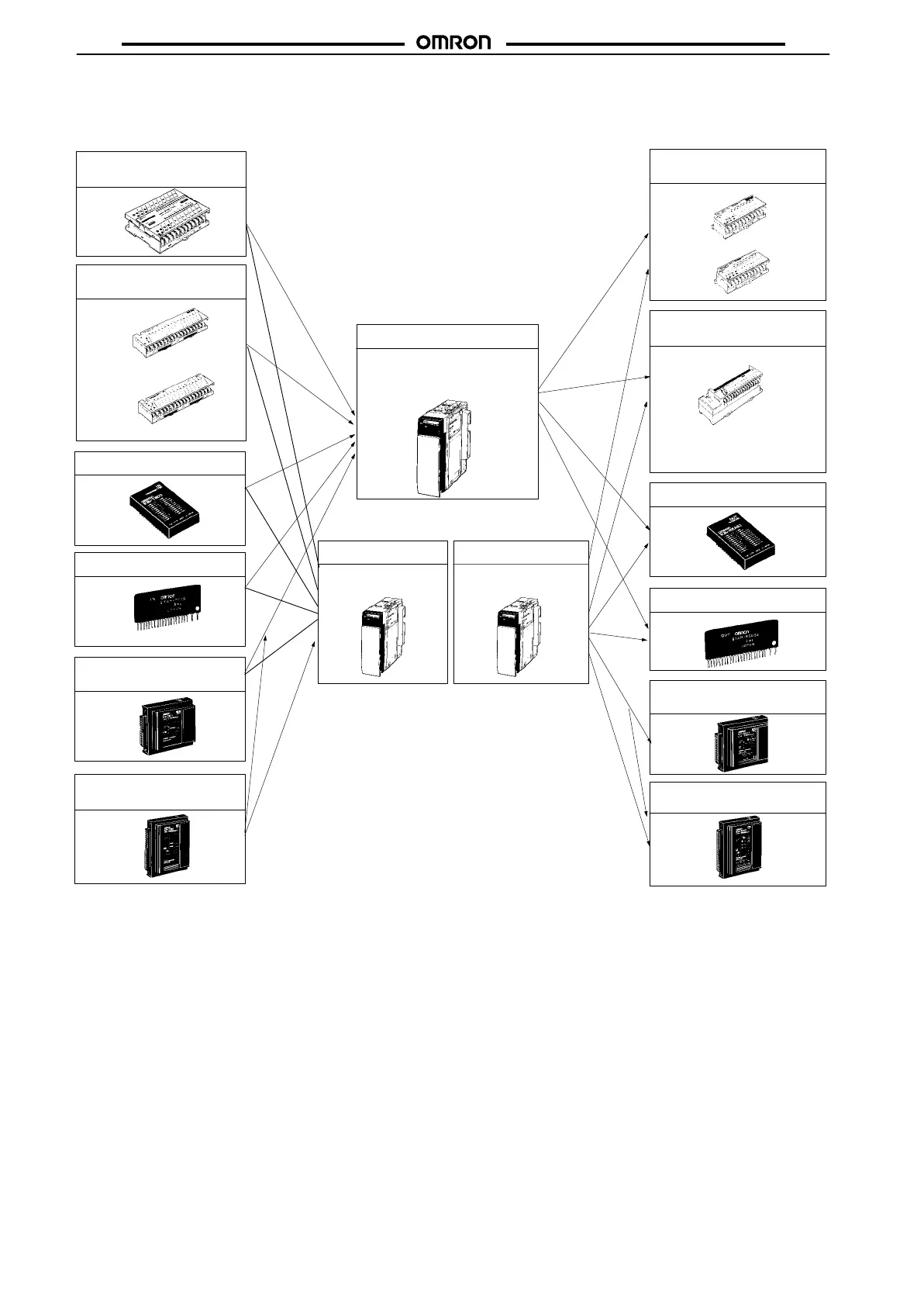

CQM1 B7A Interface Units
Note: Use combinations of B7A Interface Units and B7A LInk T erminals with the same I/O delay time. The I/O delay time (high speed:
typically 3 ms; normal speed: typically 19.2 ms) can be switched for B7A Interface Units and 32-point B7A screw terminal models
using a selection switch. Set the same I/O delay time for connected Units.
16-point Input (Transmission)
Models
CQM1 Series
16-point Output
(Reception) Models
Screw terminal model
(32 points)
Screw terminal model
(16 output points)
Modular model (16 points)
B7A
Hybrid IC model (16 points)
B7AH
PLC connector model
(16 points)
B7A
PLC connector model
(32 points)
B7A
Input/output model
CQM1-B7A21
(16 input and 16 output points)
Input model Output model
CQM1-B7A13 (32 inputs)
CQM1-B7A12 (16 inputs)
CQM1-B7A03 (32 outputs)
CQM1-B7A02 (16 outputs)
Note: Two 16-type models can be used to connect
to 32-point models.
Screw terminal model
(16 points)
B7A
B7AS
Relay-mounted screw terminal
model (16 points)
G70D-R6jj1-B7A
Note: Only the normal I/O delay
time (typically 19.2 ms) is
available.
Modular model (16 points)
B7A
Hybrid IC model (16 points)
B7AH
PLC connector model
(16 points)
B7A
PLC connector model
(32 points)
B7A
B7A
B7AS
