Operation

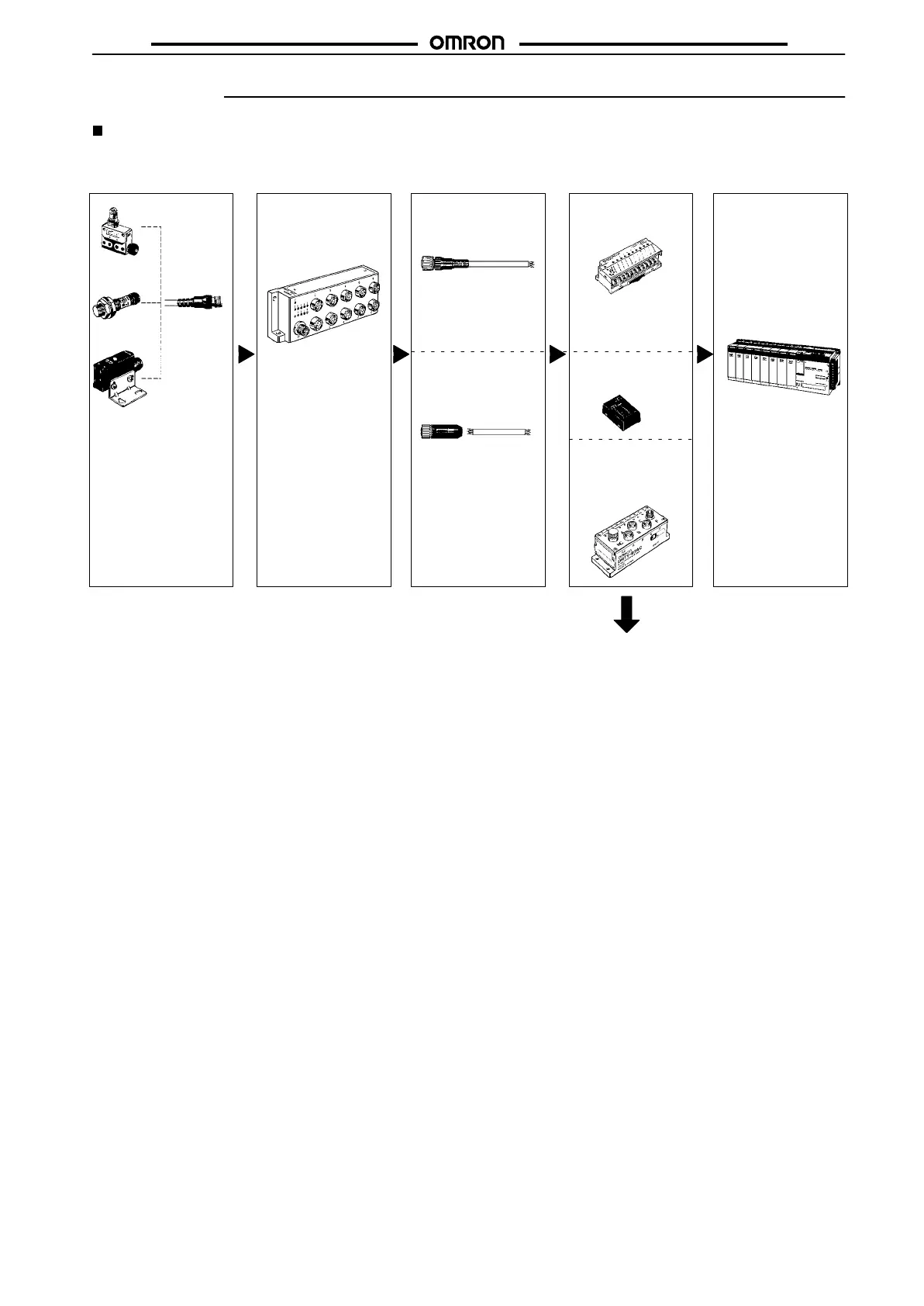

System Configuration
Input Side Transmission and
Power Supply Cable
Output Side
B7AC-T10A1
Limit switch,
proximity sensor,
or photoelectric
sensor
XS2F Cable
with Connector
T
ransmission distance:
50 m max. (VCTF
0.5 mm
2
)
B7A-R10SC01
XS2F Cable
with Connector
Assembly
T ransmission distance:
100 m max. (VCTF
0.75 mm
2
)
B7A-R10MC
PLC, etc.
24 VDC power supply
Note: Refer to the F A Connector Catalog for details on connectors.
DeviceNet
B7AC Interface
Terminal
DRT1-B7AC
