Omron CJ1G/H-CPU series - Programming Consoles

155
Programming Devices Section 3-3
3-3-2 Programming Consoles

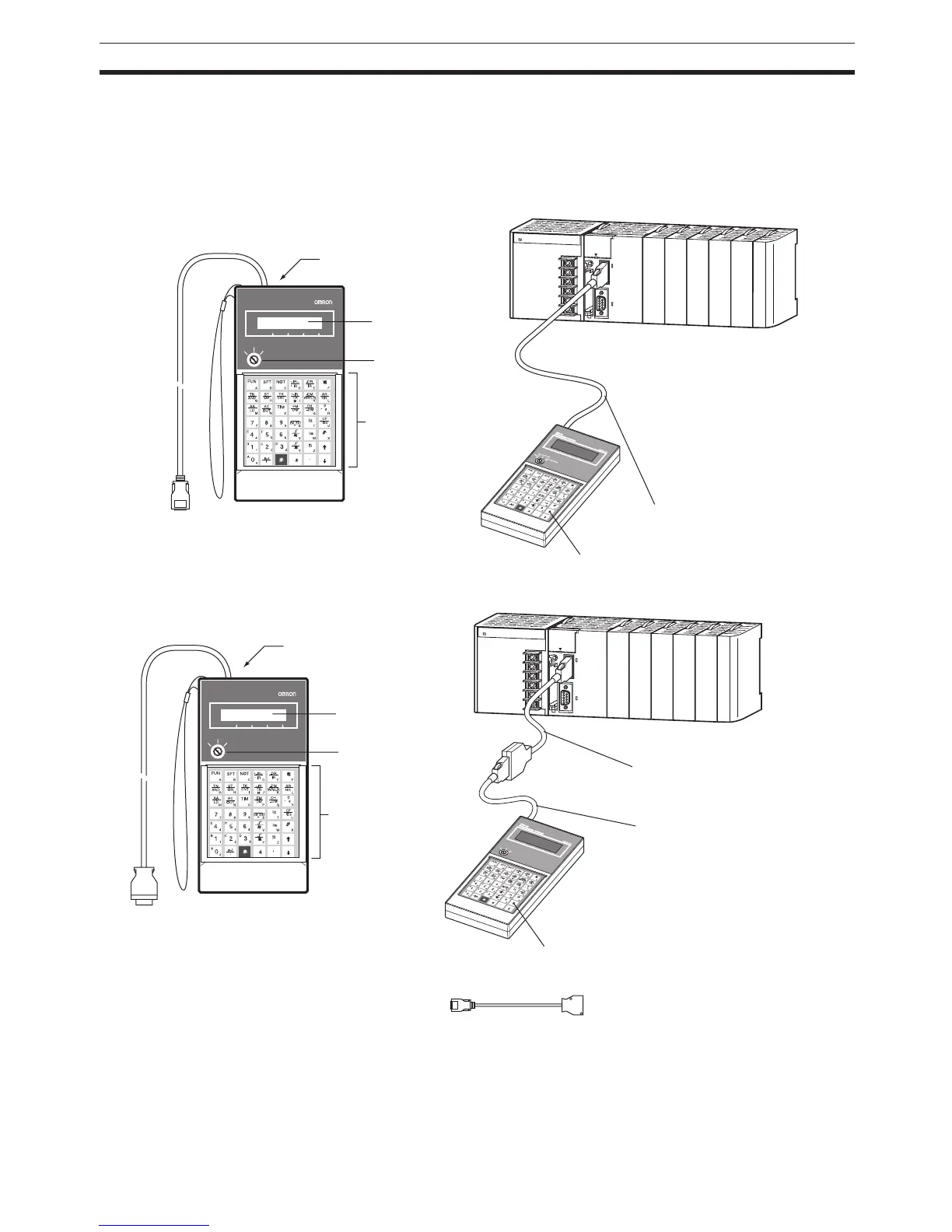

There are three Programming Consoles that can be used with the CJ-series
CPU Units: The CQM1H-PRO01-E, CQM1-PRO01-E, and C200H-PRO27-E.
These Programming Consoles are shown here.
CQM1H-PRO01-E Programming Console
CQM1-PRO01-E Programming Console
PRO01
PROGRAMMING CONSOLE
PROGRAMMING CONSOLE
RUN
MONITOR
PROGRAM
LCD area
Connection
Mode selector switch
Operation keys (Install the
CS1W-KS001-E Key Sheet
Cable included with CQM1H-PRO01-E
Programming Console
CQM1H-PRO01-E Programming Console
PRO01
PROGRAMMING CONSOLE
PROGRAMMING CONSOLE
RUN
MONITOR
PROGRAM
R
U
N
M
O
N
IT
O
R
P
R
O
G
R
A
M
LCD area
Connection
Mode selector switch
Operation keys (Install the
CS1W-KS001-E Key Sheet
CS1W-CN114 (cable length: 0.05 m)
Cable included with CQM1-PRO01-E
Programming Console
CQM1-PRO01-E Programming Console
Connect the CPU Unit to the Programming Console with the following cables.
CS1W-CN114 (Cable length: 0.05 m)
