Omron CJ1G/H-CPU series User Manual

165
Power Supply Units Section 3-4

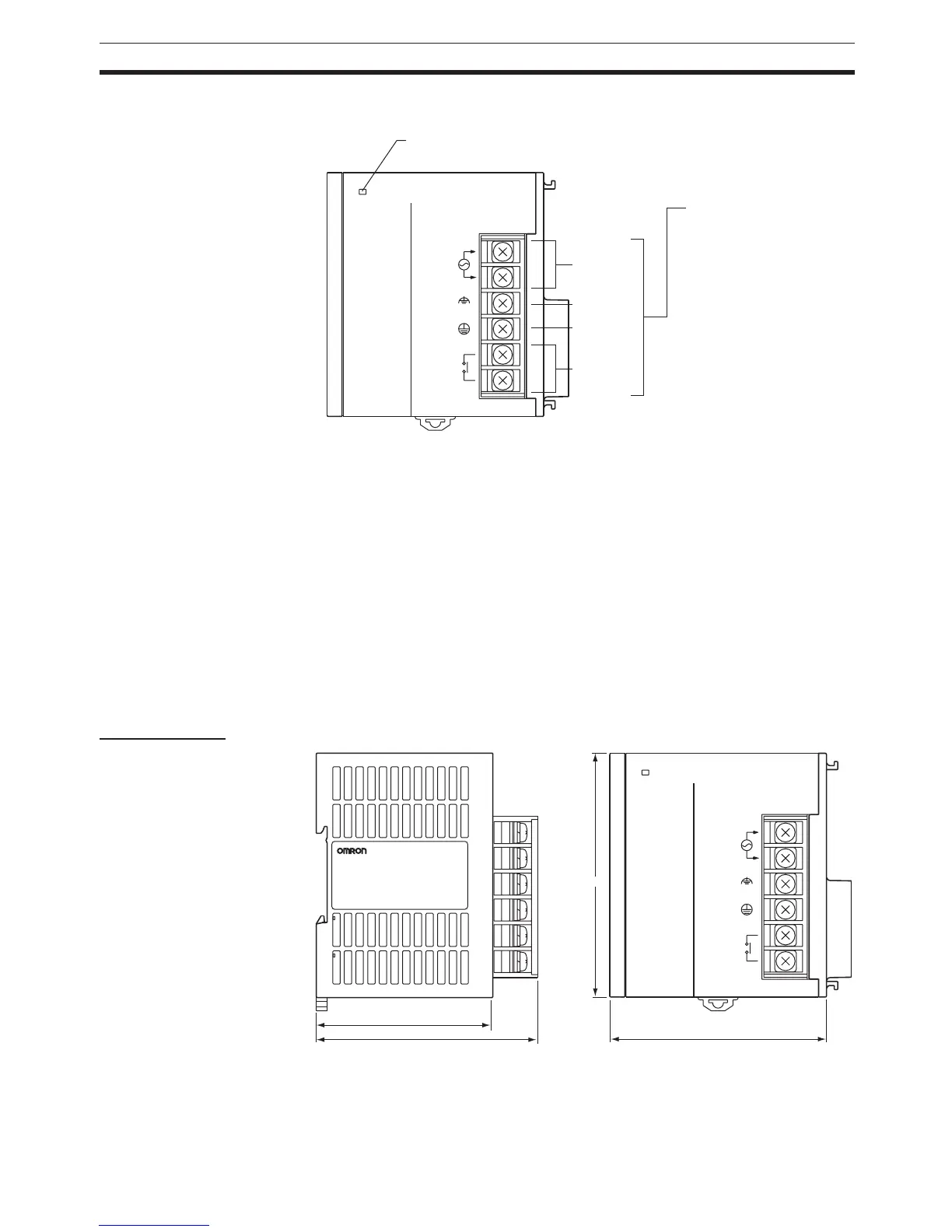

3-4-2 Components
AC Input Supply 100 to 240 V AC (allowable: 85 to 264 V AC). (Voltage selection is not
required.)
DC Input Supply 24 V DC (allowable:19.2 to 28.8 V DC).
LG Ground to a resistance of 100
Ω or less to increase noise resistance and
avoid electric shock.
GR Ground to a resistance of 100
Ω or less to avoid electric shock.
RUN Output (CJ1W-
PA205R Only)
The internal contact turns ON when the CPU Unit is operating (RUN or MON-
ITOR mode). The Power Supply Unit must be in the CPU Rack to use this out-
put.
3-4-3 Dimensions
CJ1W-PA205R
POWER
PA205R
DC24V
AC240V
OUTPUT
RUN
INPUT
AC100-240V
L2/N
L1
LG
GR
POWER Indicator
Lit when 5 V are being output from the Power Supply Unit.
External connection terminals
AC input
RUN output
POWER
PA205R
DC24V
AC240V
OUTPUT
RUN
INPUT
AC100-240V
L2/N
L1
65
80
81.6
90
