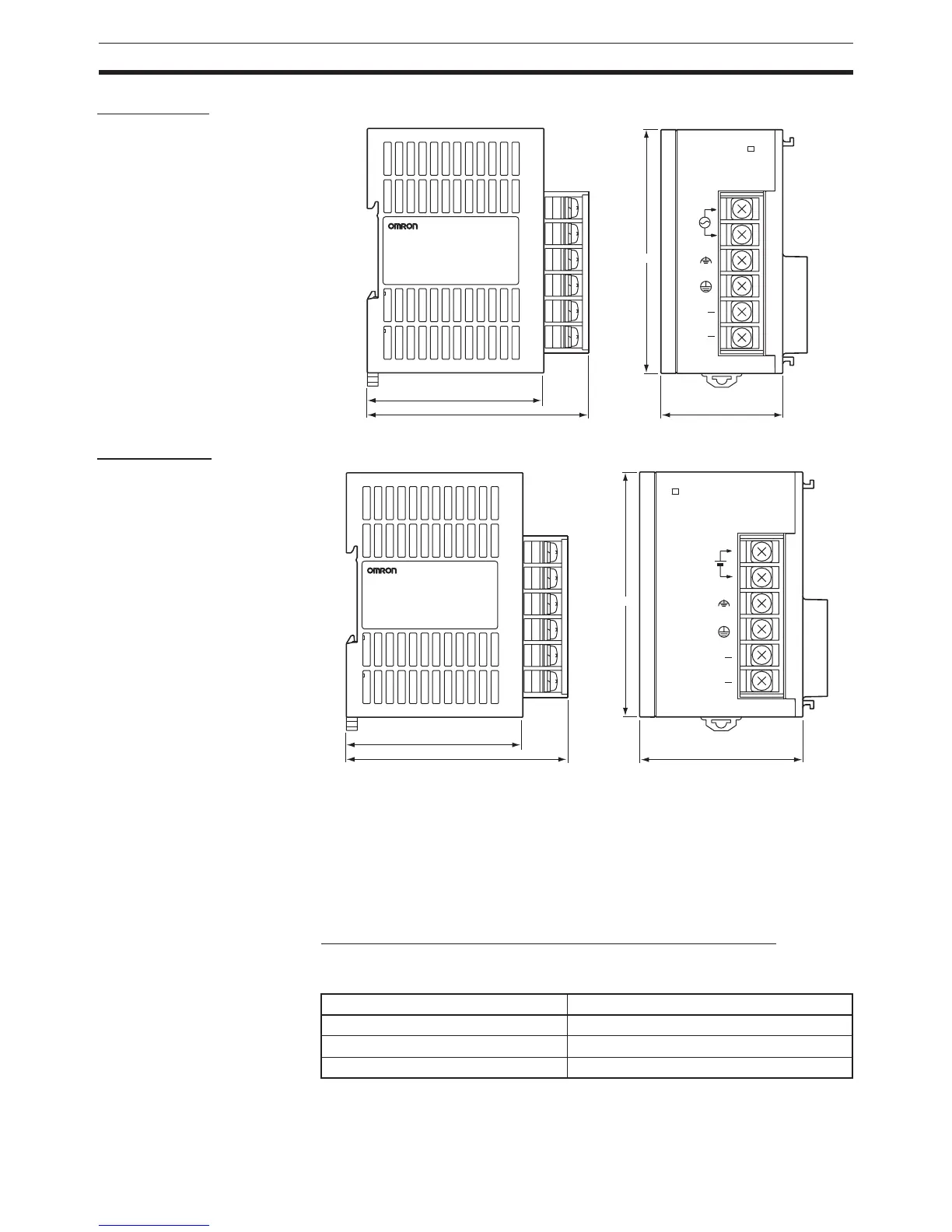

Power Supply Units Section 3-4
CJ1W-PA202
CJ1W-PD025
3-4-4 Power Supply Confirmation
After determining what power supply voltage is required, calculate the current
and power requirements for each Rack.
Condition 1:
Current Requirements
There are two voltage groups for internal power consumption: 5 V DC and
24 V DC.
Current Consumption at 5 V DC (Internal Logic Power Supply)
The following table shows the current that can be supplied to Units (including
the CPU Unit) that use 5-V DC power.
65
4581.6
90
POWER
PA202
INPUT
NC
NC
AC100
-240V
L2/N
L1
65
60
81.6
90
POWER
PD025
DC24V+
INPUT
NC
NC
Power Supply Unit Maximum current at 5 V DC
CJ1W-PA205R 5.0 A
CJ1W-PA202 2.8 A
CJ1W-PA025 5.0 A
