190
B7A Interface Unit Section 3-7

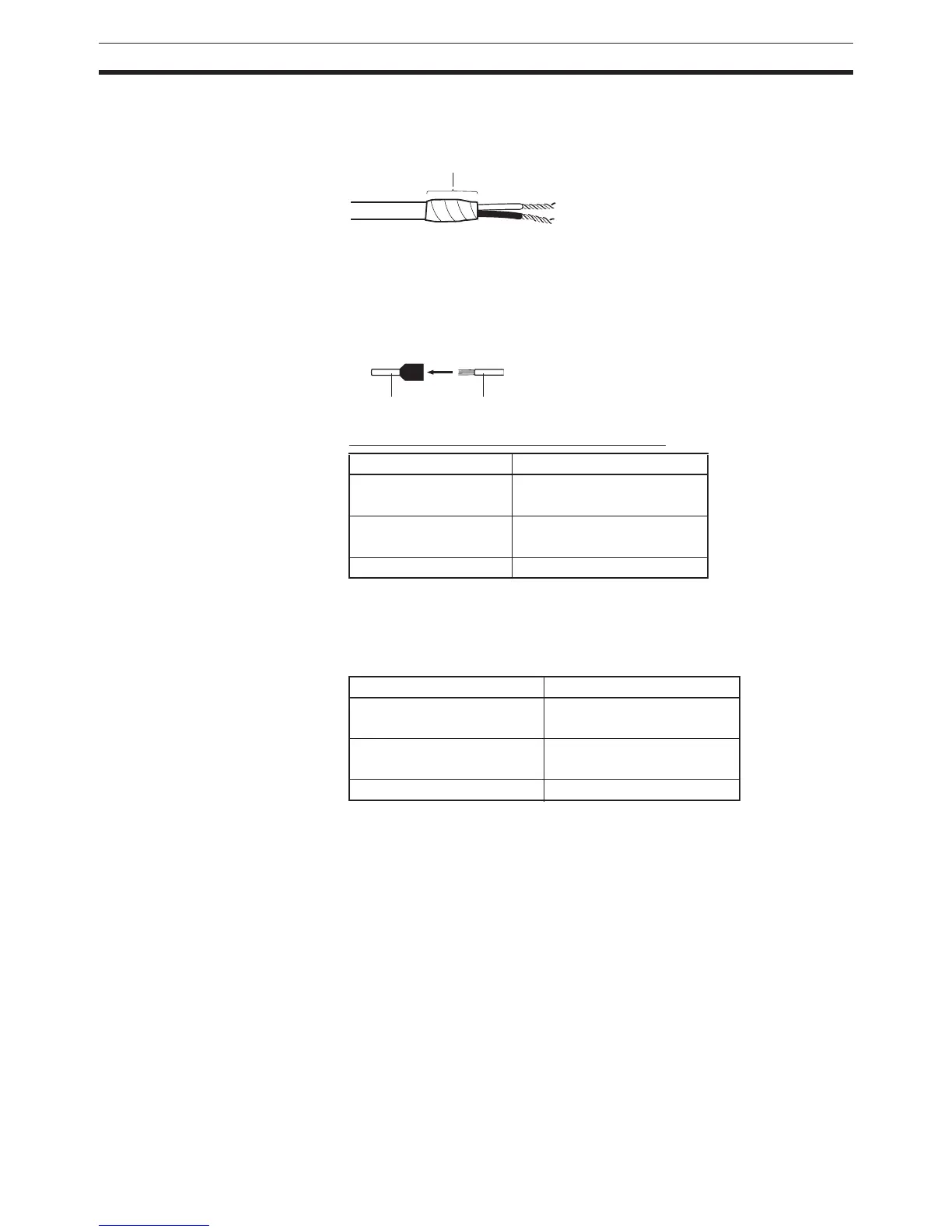

2. Use vinyl tape or a heat-shrink tube to cover the end of the VCTF cable
sheath, as shown in the following diagram.
2) Preparing Cable Signal
Lines
Attach the crimp terminals to the cable's signal lines.
1,2,3... 1. Attaching Crimp Terminals
Insert the end of the cable into the terminal and crimp.
Recommended Crimp Terminals for Cables
Note Always use the specified crimp tool to attach the crimp terminals. If
a crimp tool is not used, the cable will not be crimped properly, which
may cause the cable to become detached from the terminal.
The following crimp tools are available.
2. Insulate the stripped end of each signal line with vinyl tape or heat-shrink
tubing.
3) Connecting Cables Use the following procedure to connect cables to the connection terminals.
Orient the connector properly, and then insert the signal lines fully into the
back of each terminal hole in the connector, as shown in the following dia-
gram. (The signal lines are secured in this way, without requiring the use of a
tool.) If crimp terminals are not used on the signal lines, use a small flat-blade
screwdriver to press down on the orange tab to insert the signal lines.
Cover with vinyl tape or
heat-shrink tube.
Model Manufacturer
AI-series AI0.75-8GY
(Product code: 3200519)
PHOENIX CONTACT
H0.75/14
(Product code: 046290)
Nihon Weidmuller Co., Ltd.
TE-0.75 NICHIFU Co., Ltd.
Crim
terminal Si
nal line
Sleeve
Model Manufacturer
UD6 (Product code: 1204436)
or ZA3 Series
PHOENIX CONTACT
Crimper PZ1.5
(Product code: 900599)
Nihon Weidmuller Co., Ltd.
NH77 NICHIFU Co., Ltd.
To Next Page
