201
Examples Section 4-2

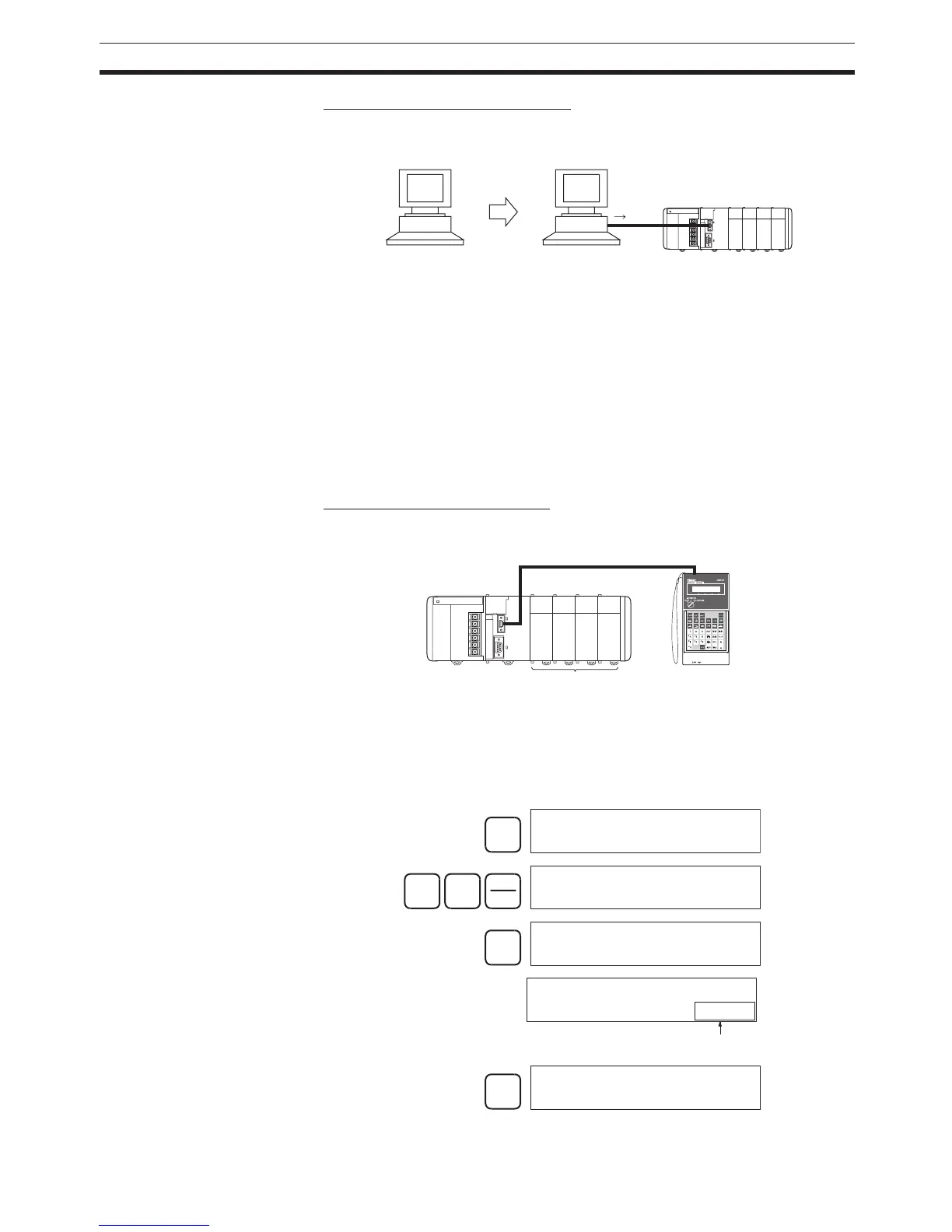

Using the CX-Programmer Offline
Use the following procedure to create the I/O table offline with the CX-Pro-
grammer and later transfer the I/O table from to the CPU Unit.
1,2,3... 1. Double-click I/O Table on the project tree in the main window. The I/O Ta-
ble Window will be displayed.
2. Double-click the Rack to be edited. The slots for that Rack will be dis-
played.
3. Right-click the slots to be edited and select the desired Units from the pull-
down menu.
4. Select Options and then Transfer to PLC to transfer the I/O table to the
CPU Unit.
Note The first word allocated to each Rack can be set from the Programming
Device.
Using a Programming Console
Use the following procedure to register the I/O table with a Programming Con-
sole.
1,2,3... 1. Install all of the Units in the PLC.
2. Connect the Programming Console to the peripheral port.
(It can be connected with the power on.)
3. Register the I/O table.
Write the
I/O table.
Transfer the
I/O table.
Programming
Console
Install the Units.
CLR
000000 CT00
FUN
SHIFT
CH
*DM
000000 I/O TBL ?
CHG
000000 I/O TBL
WRIT ????
000000 I/O TBL
WRIT ????
Password (9713)
WRITE
000000CPU BU ST?
0:CLR 1:KEEP
To Next Page
