Installation Section 5-2

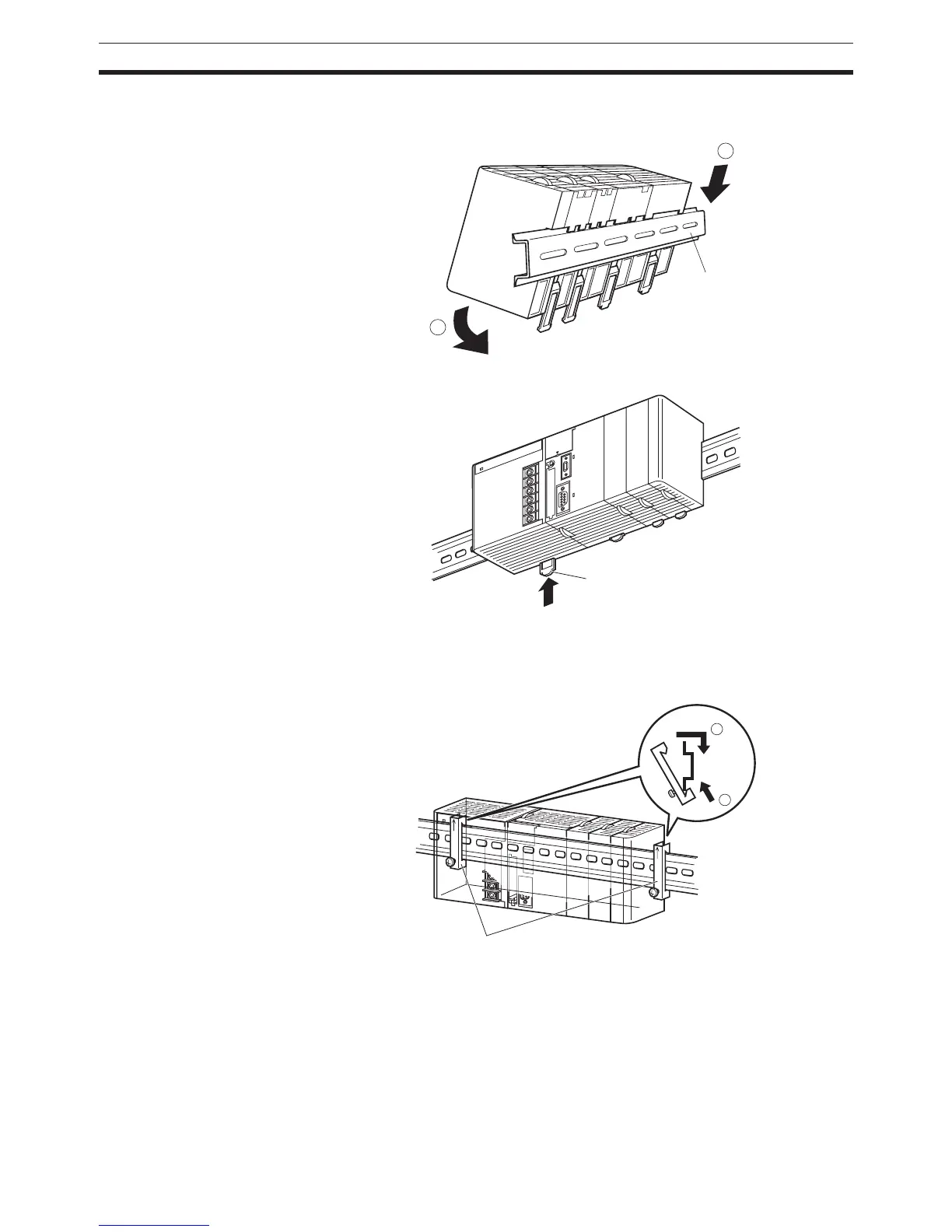

2. Fit the back of the PLC onto the DIN Track by inserting the top of the track
and then pressing in at the bottom of the PLC, as shown below.
3. Lock the pins on the backs of the CJ-series Units.
4. Install a DIN Track End Plate on each end of the PLC. To install an End
Plate, hook the bottom on the bottom of the track, rotate the Plate to hook
the top of the Plate on the top of the track, and then tighten the screw to
lock the Plate in place.
1
2
DIN Trac
k
DIN Track
mounting pins
1
2
End Plates
