Omron CJ1G/H-CPU series User Manual

235
Installation Section 5-2
• The top and bottom of the connector are different. Be sure the connector
is facing the correct direction before connecting it.

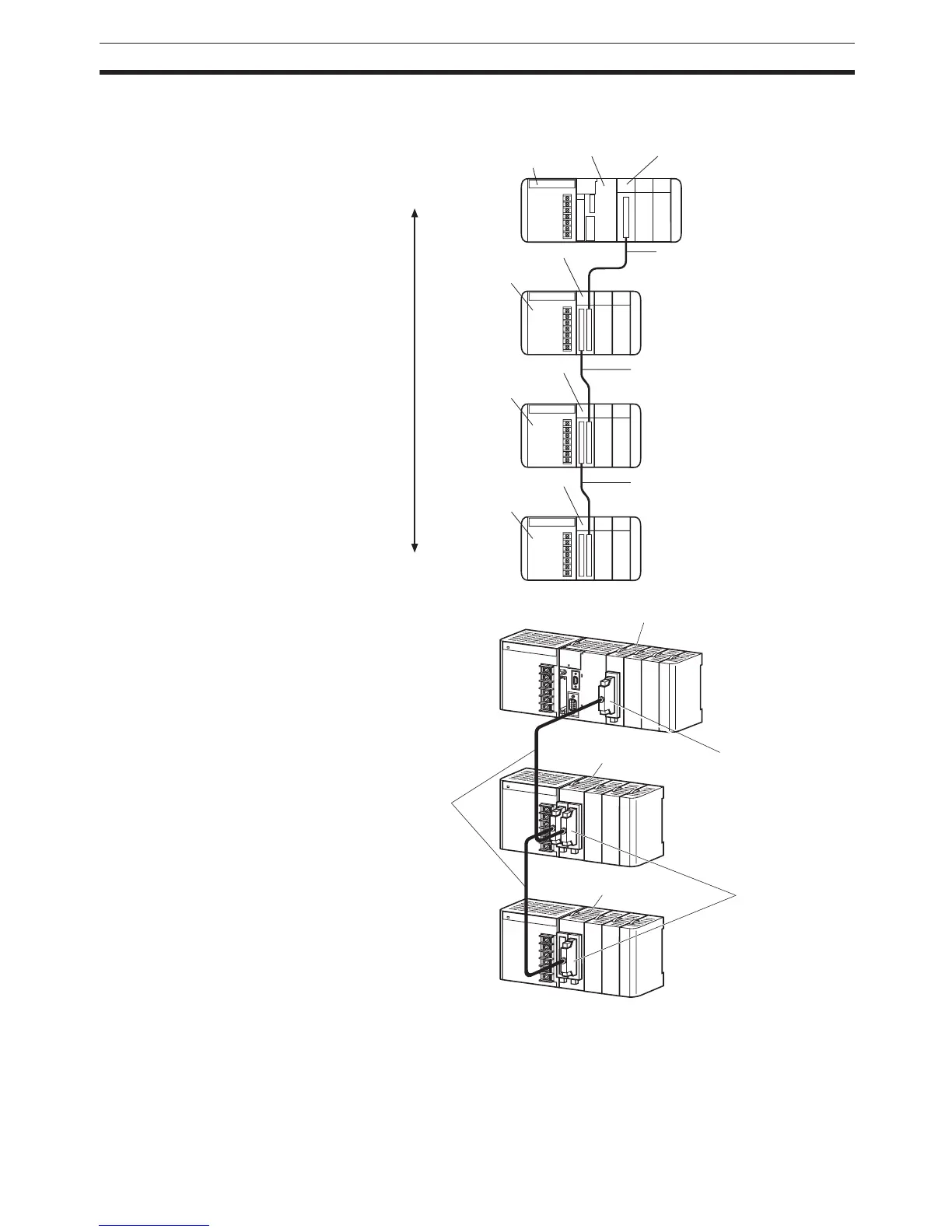

Connecting the Simple Locking Connectors
Press the tabs on the end of the connector and insert the connector until it
locks in place. The PLC will not operate properly if the connector isn’t inserted
completely.
CPU Rack
I/O Control Unit
I/O Connecting Cable
Expansion Rack
Expansion Rack
I/O Interface Unit
I/O Interface Unit
Simple lock connector
Simple lock connector
Power
Supply Unit
CPU Unit
I/O Control Unit
I/O Interface Unit
Power Supply Unit
CPU Rack
Expansion Rack
Expansion Rack
I/O Connecting Cable
I/O Connecting Cable
I/O Interface Unit
Power Supply Unit
I/O Interface Unit
Power Supply Unit
Expansion Rack
I/O Connecting Cable
Total cable
length:
12 m max.
