A-3
Appendices
CJ-series PROFIBUS Slave Unit Operation Manual for NJ-series CPU Unit (W510)
A-1 Differences of NJ Series from CJ series
App
A-1-2 Differences in Access Methods from a User Program

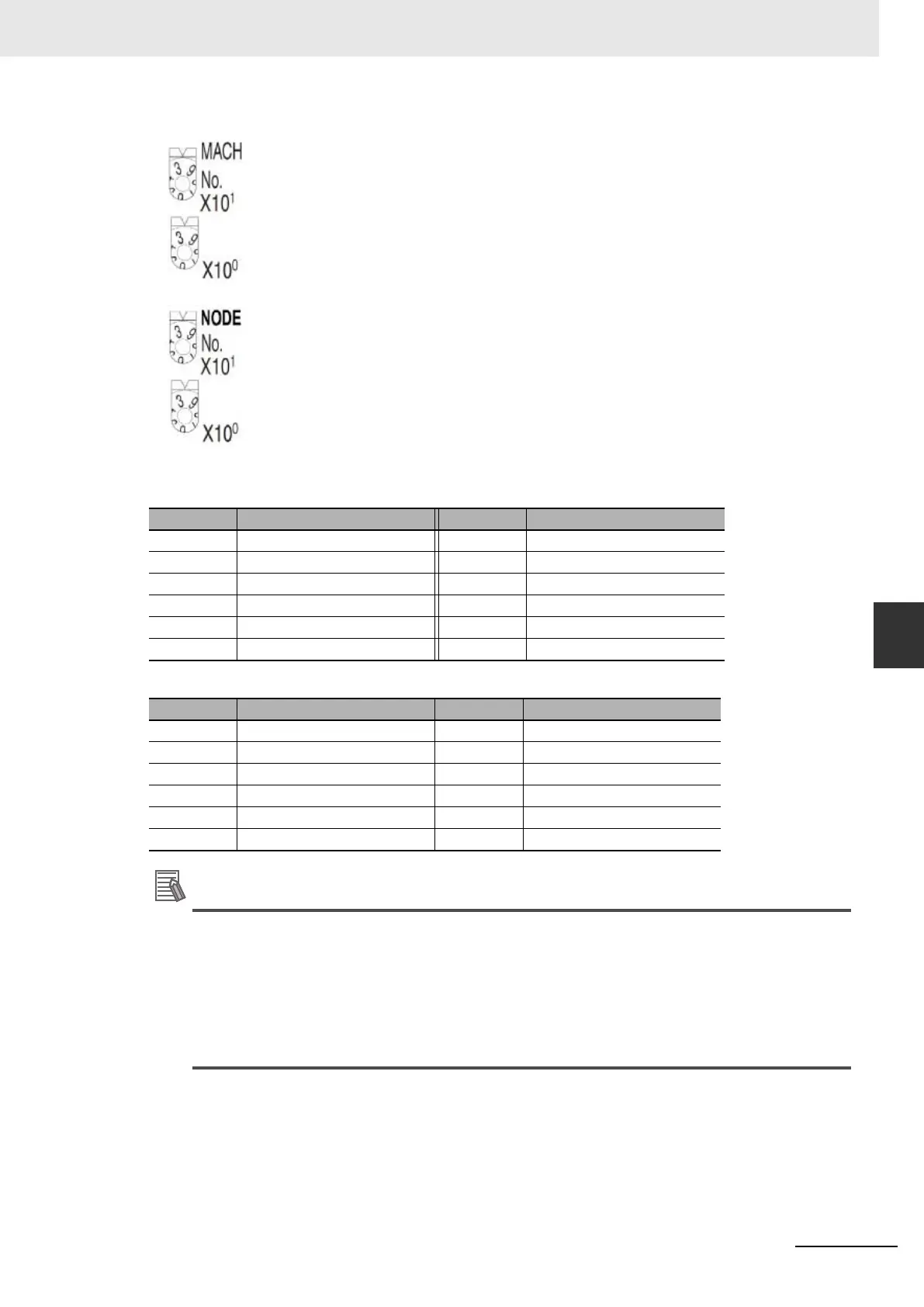

The CIO and DM number occupied by the PROFIBUS Slave Unit are set by the
machine number rotary switch on the front of the Unit.
Allocated CIO words (Start address CIO Area = 2000 + MACH No. x 10)
Allocated DM words (Start address DM Area = 20000 + MACH No. x 100):
• If two or more Units are set to an identical Machine number or if one Unit is set to areas of plu-
ral Machine numbers, the CPU Unit has a major fault level error, a duplicated Unit number
error, and stops operation. After correcting the Machine number setting, cycle the power to the
Controller.
• Be sure that no Machine numbers are duplicated.
To avoid duplication, when you set a PROFIBUS Slave Unit to the Machine number "n", set the
next Unit to the Machine number "n + 1".
MACH No. CIO Area MACH No. CIO Area
00 CIO 2000 to CIO 2009 06 CIO 2060 to CIO 2069
01 CIO 2010 to CIO 2019 07 CIO 2070 to CIO 2079
02 CIO 2020 to CIO 2029 08 CIO 2080 to CIO 2089
03 CIO 2030 to CIO 2039 09 CIO 2090 to CIO 2099
04 CIO 2040 to CIO 2049 10.. CIO 2100 to CIO 2109
05 CIO 2050 to CIO 2059 ..95 CIO 2940 to CIO 2949
MACH No. CIO Area MACH No. CIO Area
00 DM 20000 to DM 20007 06 DM 20600 to DM 20607
01 DM 20100 to DM 20107 07 DM 20700 to DM 20707
02 DM 20200 to DM 20207 08 DM 20800 to DM 20807
03 DM 20300 to DM 20307 09 DM 20900 to DM 20907
04 DM 20400 to DM 20407 10 DM 21000 to DM 21007
05 DM 20500 to DM 20507 95 DM 29500 to DM 29507
