NX-series EtherNet/IP Coupler Unit User’s Manual (W536)

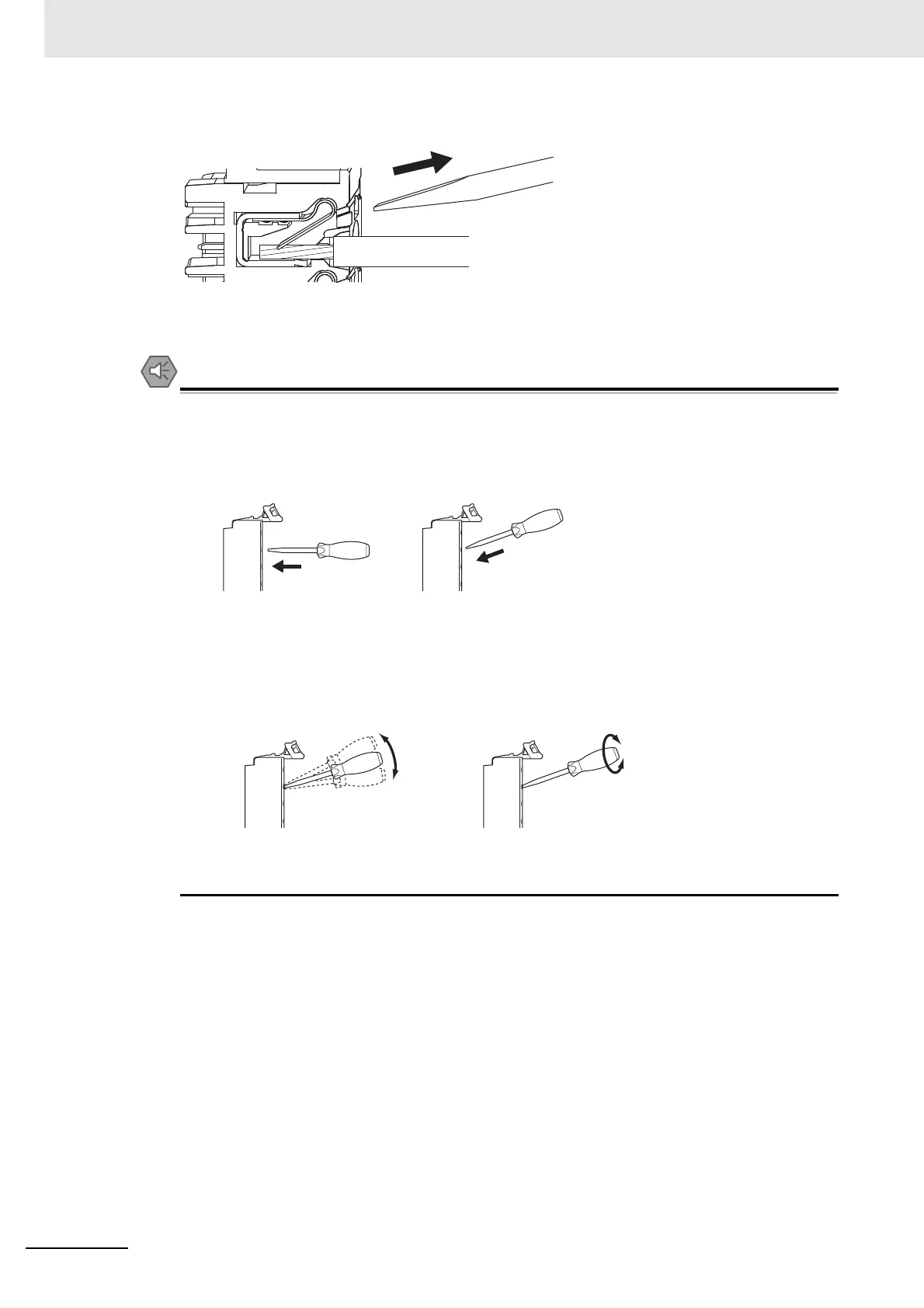

3 Remove the flat-blade screwdriver from the release hole.
After you make a connection, make sure that the twisted wire or the solid wire is securely connected
to the terminal block.
Precautions for Safe Use
• Do not press the flat-blade screwdriver straight into the release hole. Doing so may break the
terminal block.
• When you insert a flat-blade screwdriver into a release hole, press it down with a force of 30
N max. Applying excessive force may damage the terminal block.
• Do not tilt or twist the flat-blade screwdriver while it is pressed into the release hole. Doing so
may break the terminal block.
• Make sure that all wiring is correct.
• Do not bend the cable forcibly. Doing so may sever the cable.
3
NG OK
NG NG
