4 - 5
4 Part Names and Functions
NX-series EtherNet/IP Coupler Unit User’s Manual (W536)
4-2 Indicators
4

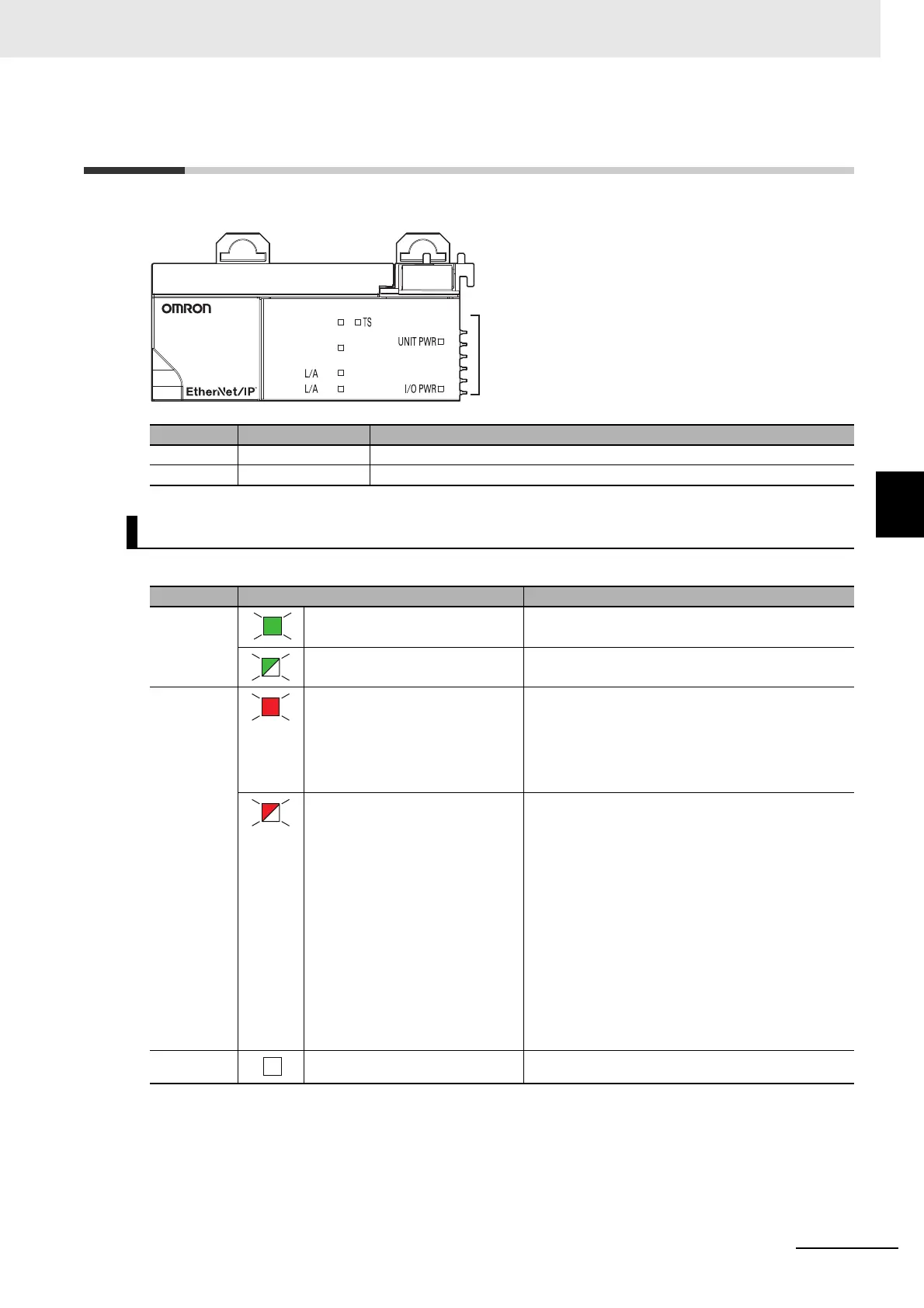

4-2 Indicators
There are indicators to show the current operating status of the EtherNet/IP Coupler Unit.
The Module Status (MS) indicator indicates the status of the Unit.
Letter Name Function
(A) Model number The model number of the EtherNet/IP Coupler Unit is shown.
(B) Indicators The current operating status of the EtherNet/IP Coupler Unit is shown.
MS Indicator
Color Status Meaning
Green
Lit The Unit is operating normally.
Flashing The Unit is starting or restarting.
Red Lit One of the following unrecoverable errors was
detected.
• Bus Controller Error
• Non-volatile Memory Hardware Error
• Memory Corruption Detected
Flashing One of the following nonfatal errors was detected.
• Unit Configuration Verification Error
• Non-volatile Memory Control Parameter Error
• Unit Configuration Error
• Unit Configuration Error, Too Many Units
• Unit Configuration Error, Unsupported Configura-
tion
• TCP/IP Setting Error (Local IP Address)
• NTP Client Setting Error
• NX Unit Communications Timeout
• NX Unit Initialization Error
• NX Unit Startup Error
---
Not lit No Unit power supply
(B)
(A)
NX-EIC202
MS
NS
P1
P2
