4 Part Names and Functions
4 - 4
NX-series EtherNet/IP Coupler Unit User’s Manual (W536)
An NX-END01 End Cover is connected to the end of the EtherNet/IP Slave Terminal.
One End Cover is provided together with the EtherNet/IP Coupler Unit.
*1. This is the shape for Units with lot numbers through December 2014.
Precautions for Correct Use
Always mount an End Cover to the end of the EtherNet/IP Slave Terminal to protect the last NX
Unit in the EtherNet/IP Slave Terminal. Not attaching the End Cover may result in malfunction
or failure of the EtherNet/IP Slave Terminal.

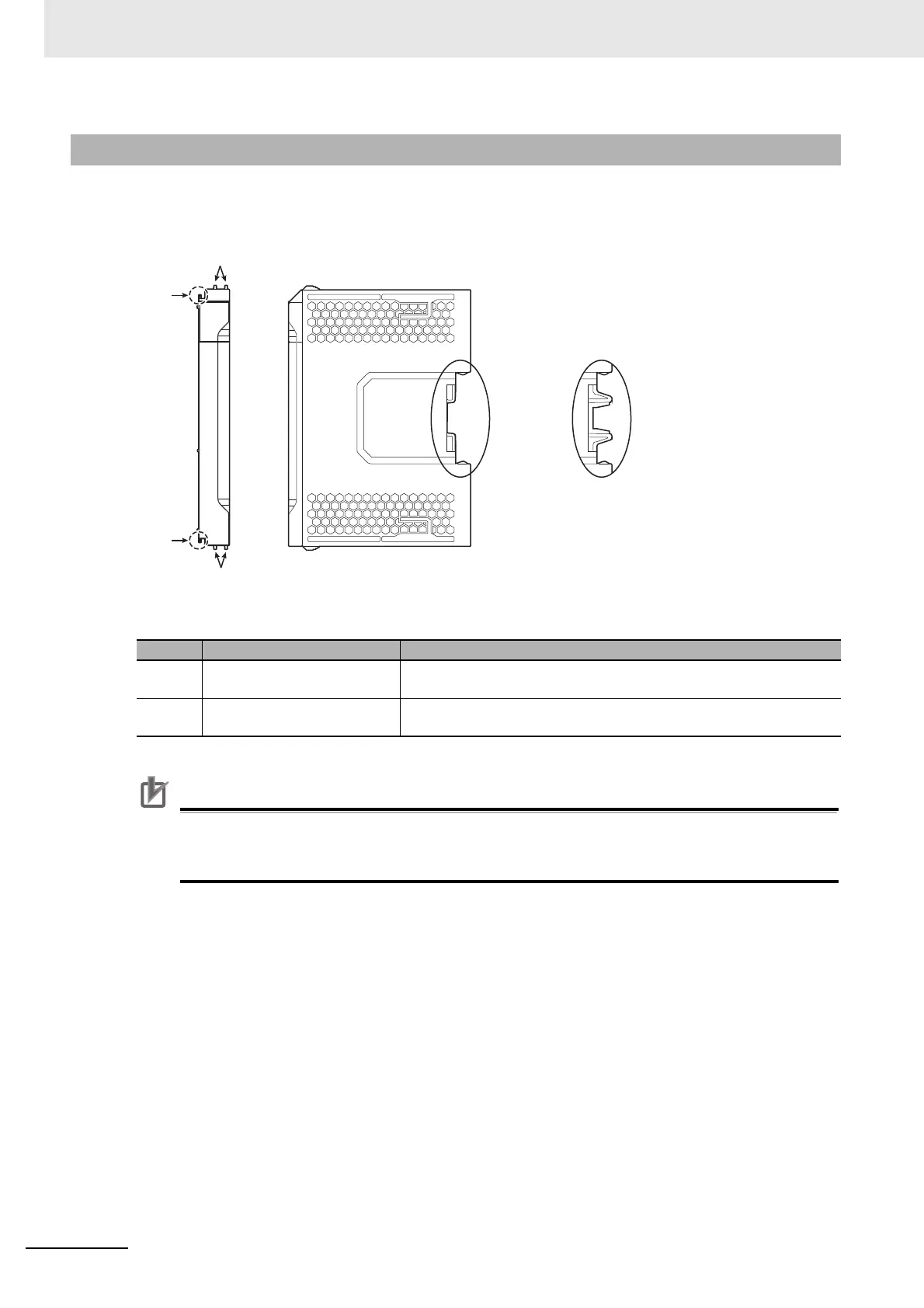

4-1-3 End Cover
Letter Name Function
(A) Unit hookup guides These guides are used to connect the End Cover to the NX Unit on
the left of the End Cover.
(B) Protrusions for removing the
Unit
The protrusions to hold when removing the End Cover.
A
A
*1
(B)
(B)
(A)
(A)
