7 Wiring
7 - 24
NX-series EtherNet/IP Coupler Unit User’s Manual (W536)
Precautions for Correct Use
• OMRON uses the holes other than No. 1 to 6 in the figure on the previous page. If you insert
a Coding Pin into one of the holes used by OMRON on the terminal block side, it would be
impossible to mount the terminal block on a Unit.
• Do not use Coding Pins that have been attached and then removed. If you use them again,
they may fall off.

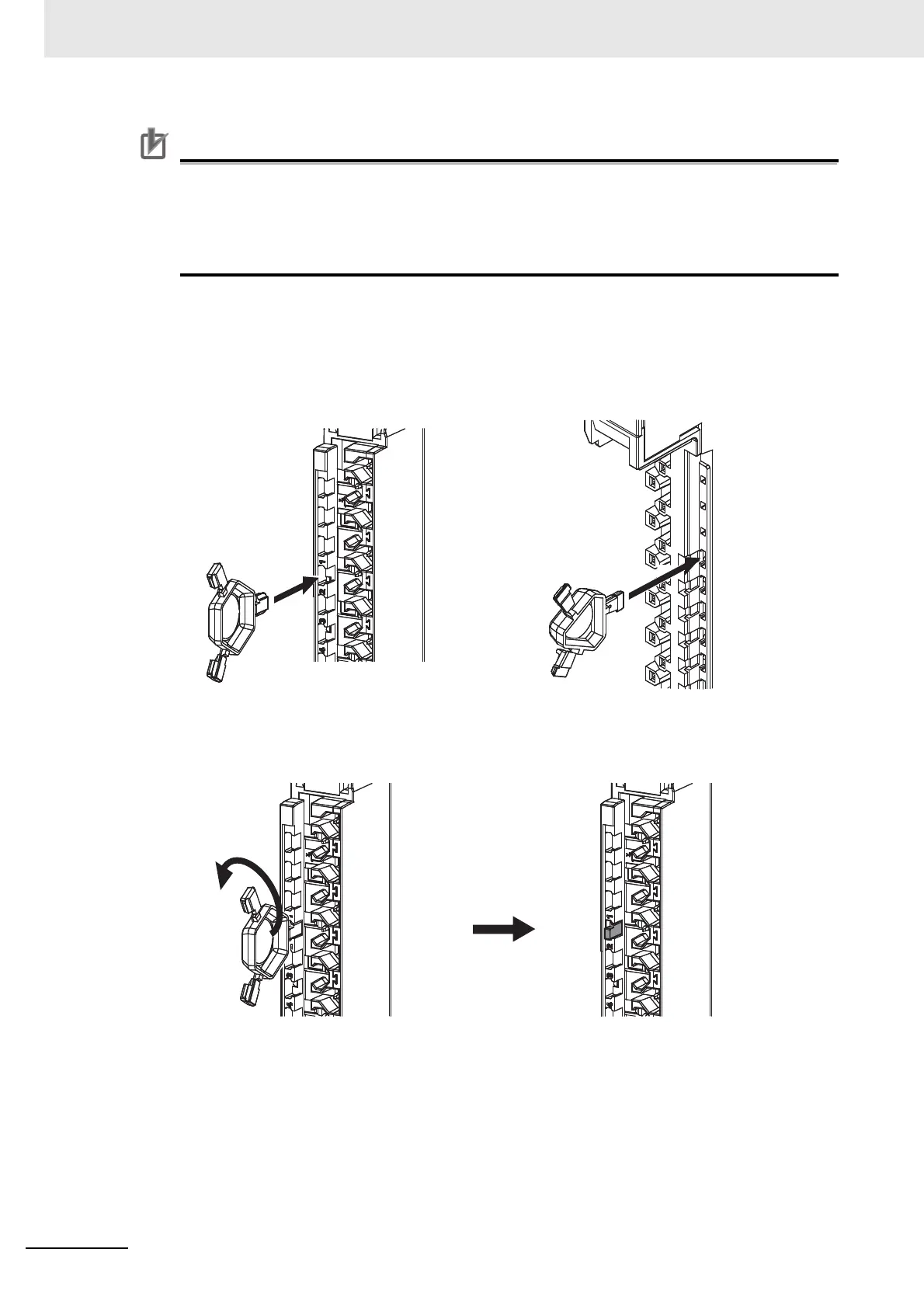

 Inserting the Coding Pins
1 Hold the pins by the runner and insert a pin into one of the incorrect attachment prevention
holes on the terminal block or on the Unit.
2 Rotate the runner to break off the Coding Pin.
Terminal block
Unit
Terminal block
