9 Setting Up Slave Terminals
9 - 52
NX-series EtherNet/IP Coupler Unit User’s Manual (W536)
 Importing Symbols to the Network Configurator
1 Start the CX-Programmer and open the project that was saved.
Note When multiple copies of the CX-Programmer are running at the same time, it is possible to import only
from the CX-Programmer project that was started first. If the global symbols that are to be imported are
stored in multiple CX-Programmer project files, the projects must be started one by one to import the
symbols.

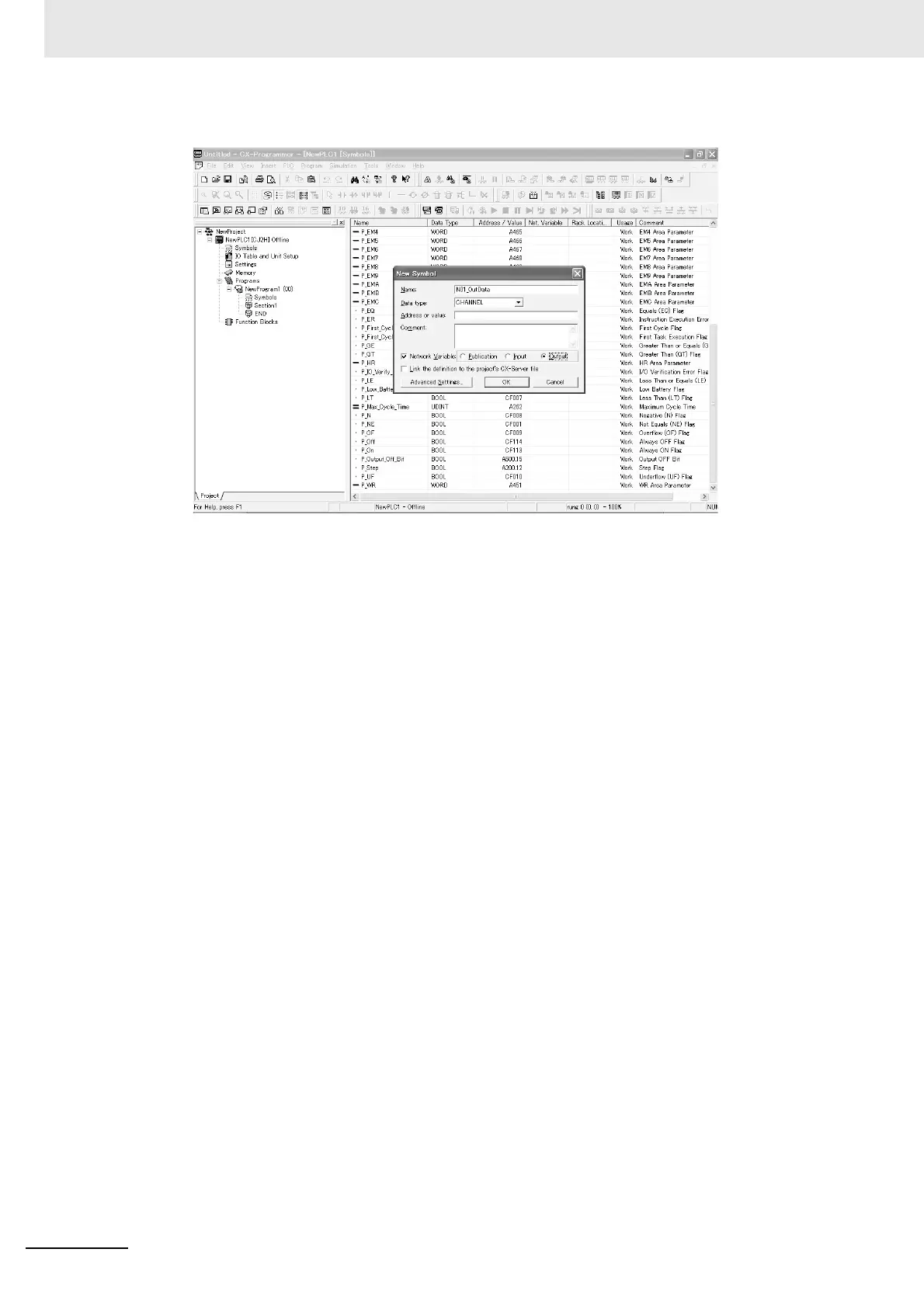

2 From the devices registered in the Network Configurator, double-click the icon of the device for
which to import the network symbols. The Edit Device Parameter Dialog Box will be displayed.
You can also right-click the icon and select Device - Parameters - Edit from the pop-up menu.
