9 Setting Up Slave Terminals
9 - 62
NX-series EtherNet/IP Coupler Unit User’s Manual (W536)

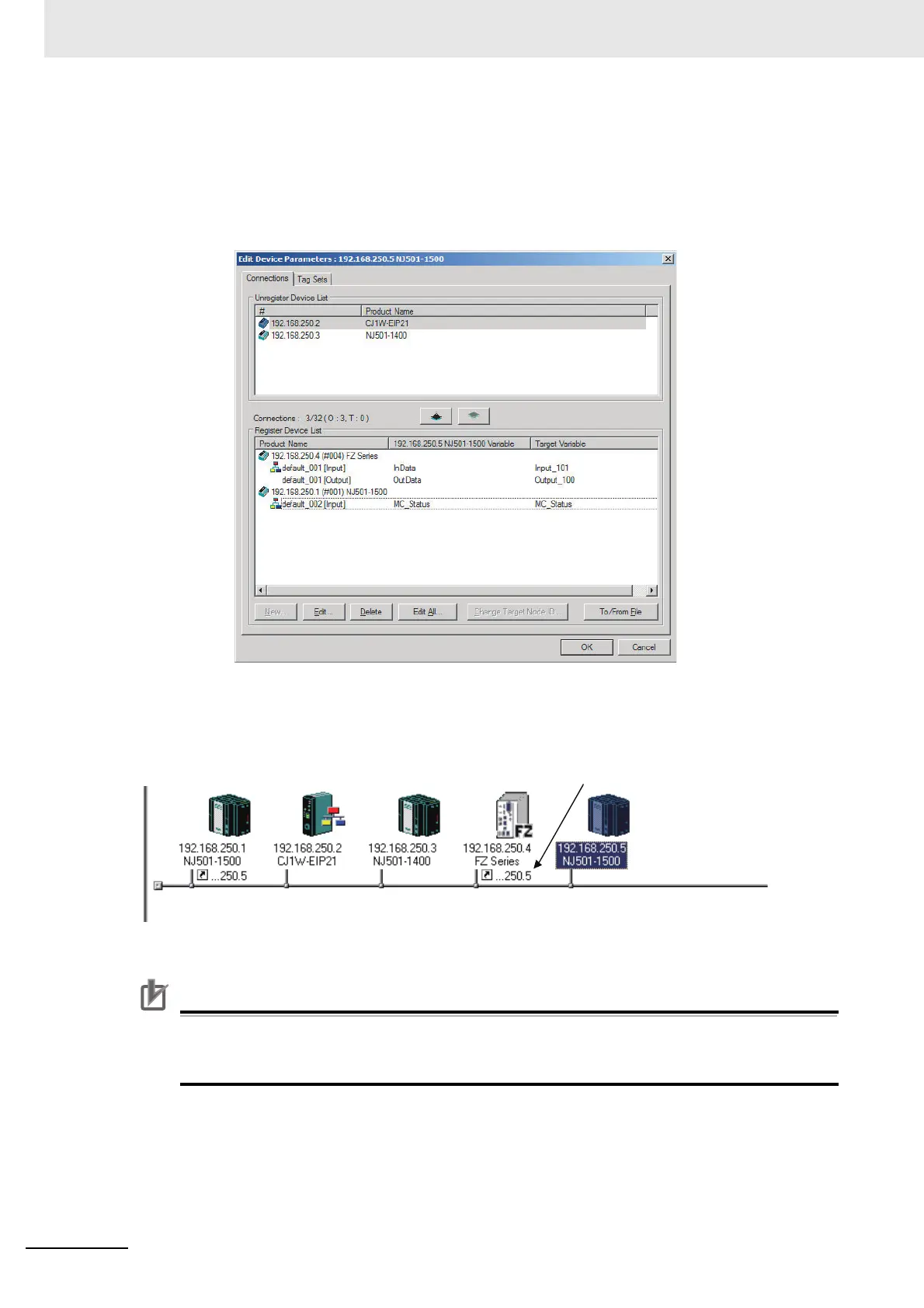

Confirming the Connections Settings
1 An overview of the connections that were set in the Register Device List is displayed in the Con-
nections Tab Page.
2 Click the OK button. The following diagram is displayed.
3 Repeat the Connections setting procedure until all of the connections have been set.
Precautions for Correct Use
After completing the settings, always click the OK button before closing the Edit Device Param-
eters Dialog Box and performing another operation. If the Cancel button is clicked and the dia-
log box is closed, the new settings will be discarded.
4 If the tag set’s size is changed in either the originator or target after the connection was set, the
size will not match the other node and a parameter data mismatch will occur. In this case, if the
connection settings have been changed, be sure to check the connections.
Indicates the IP address of the
originator where the connection
was set.
To Next Page
