1 EtherNet/IP Coupler Unit Functions
NX-series EtherNet/IP Coupler Unit Us
er
’
s Manu
al (W536)
1
1-2 NX Unit Mountin
g Settings
11
1
1-2-4 Setting NX Units as Unmounted Units
2
In the
Unit Setting
p
ane,
set the
NX
Unit Mounting Setting to Disabled
.

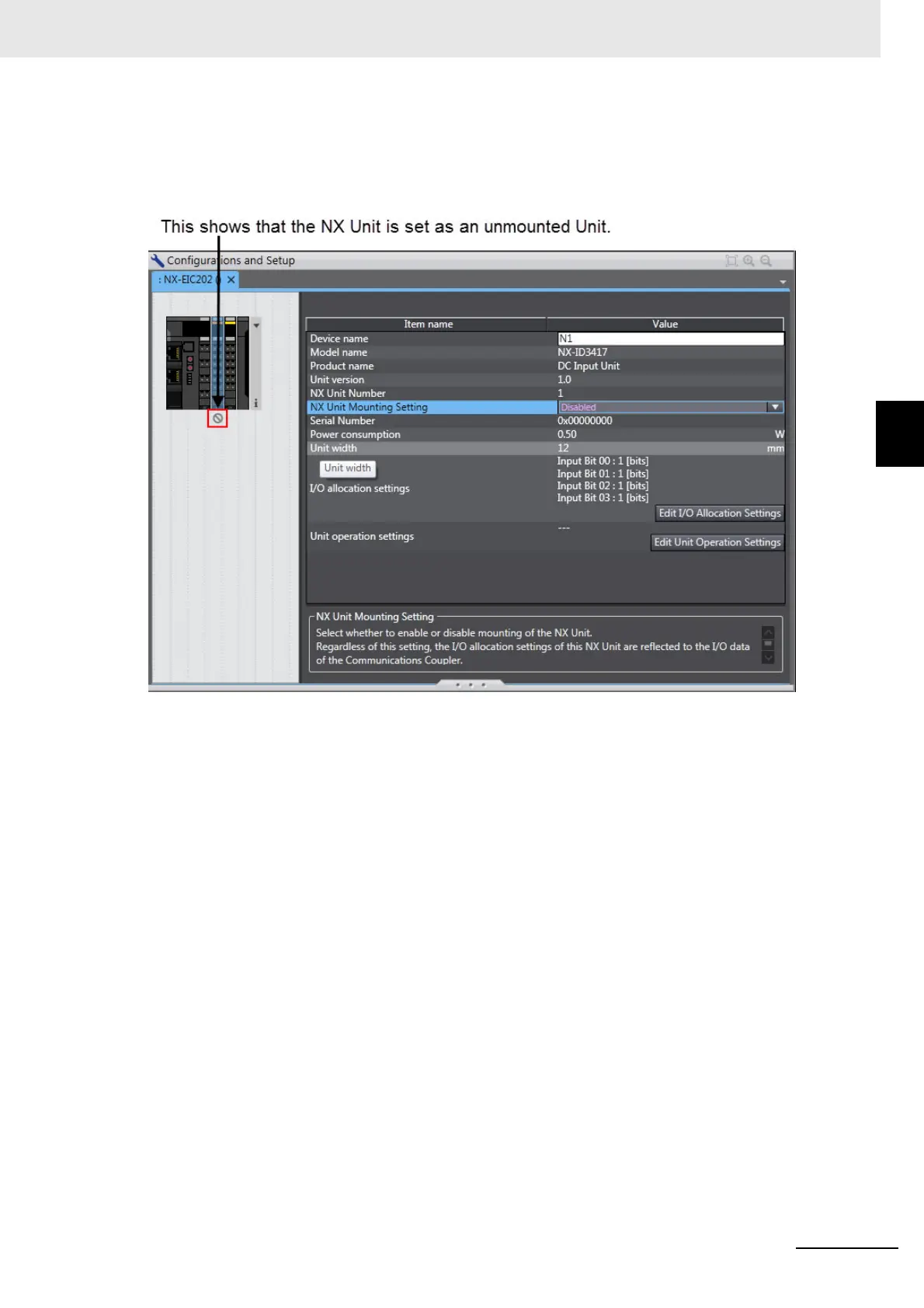

The selected NX Unit is set as an unmounted Unit.
T
o change an
NX Unit that is set as an un
mounted Unit to a
mounted NX Unit, set th
e
NX Unit Mounting
Setting
to
Enabled
in step
2.
