12 Troubleshooting

NX-series EtherNet/IP Coupler Unit User’s Manual (W536)

12-3 Checking for Errors and Troubleshooting with Support Soft-

ware

12-3-1 Checking Status with the Network Configurator

 Status 2 Tab Page

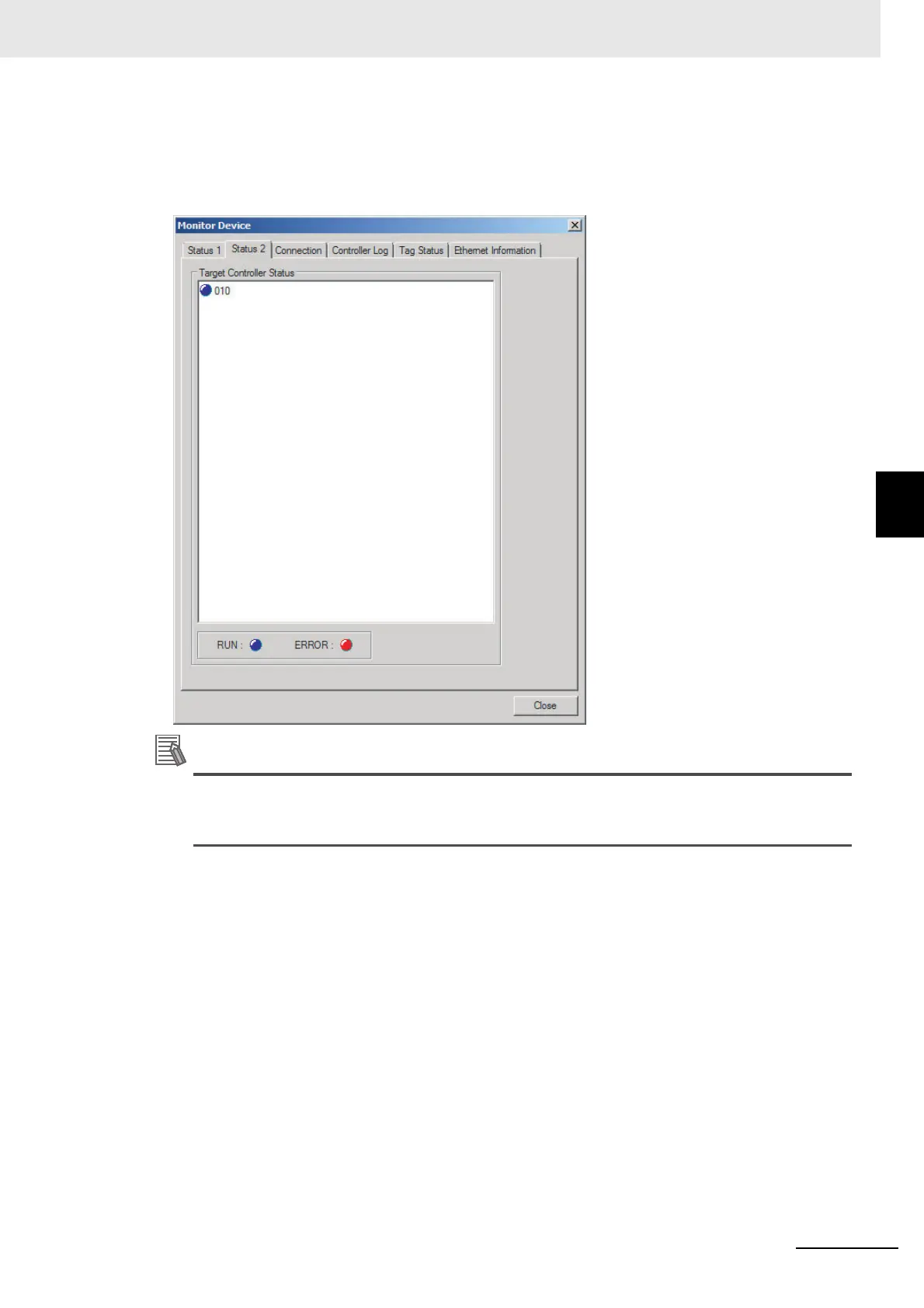

The Status 2 Tab Page’s Target PLC Status Field shows the status of the target node PLCs that are

connected with the EtherNet/IP Unit as the tag data link originator. The icon will be blue if the CPU

Unit is in RUN mode or MONITOR mode, gray if it is in PROGRAM mode, or red if an error occurred.

Additional Information

The target Controller status can be used when the Controller status is selected for all the target

sets for both originator and target connections. If it is not selected, it is grayed out on the dis-

play.
