12 T
roubleshooting
12 - 16
NX-series EtherNet/IP Coupler Unit U
ser’s Manual (W536)
EtherNet/IP Information T
ab Page

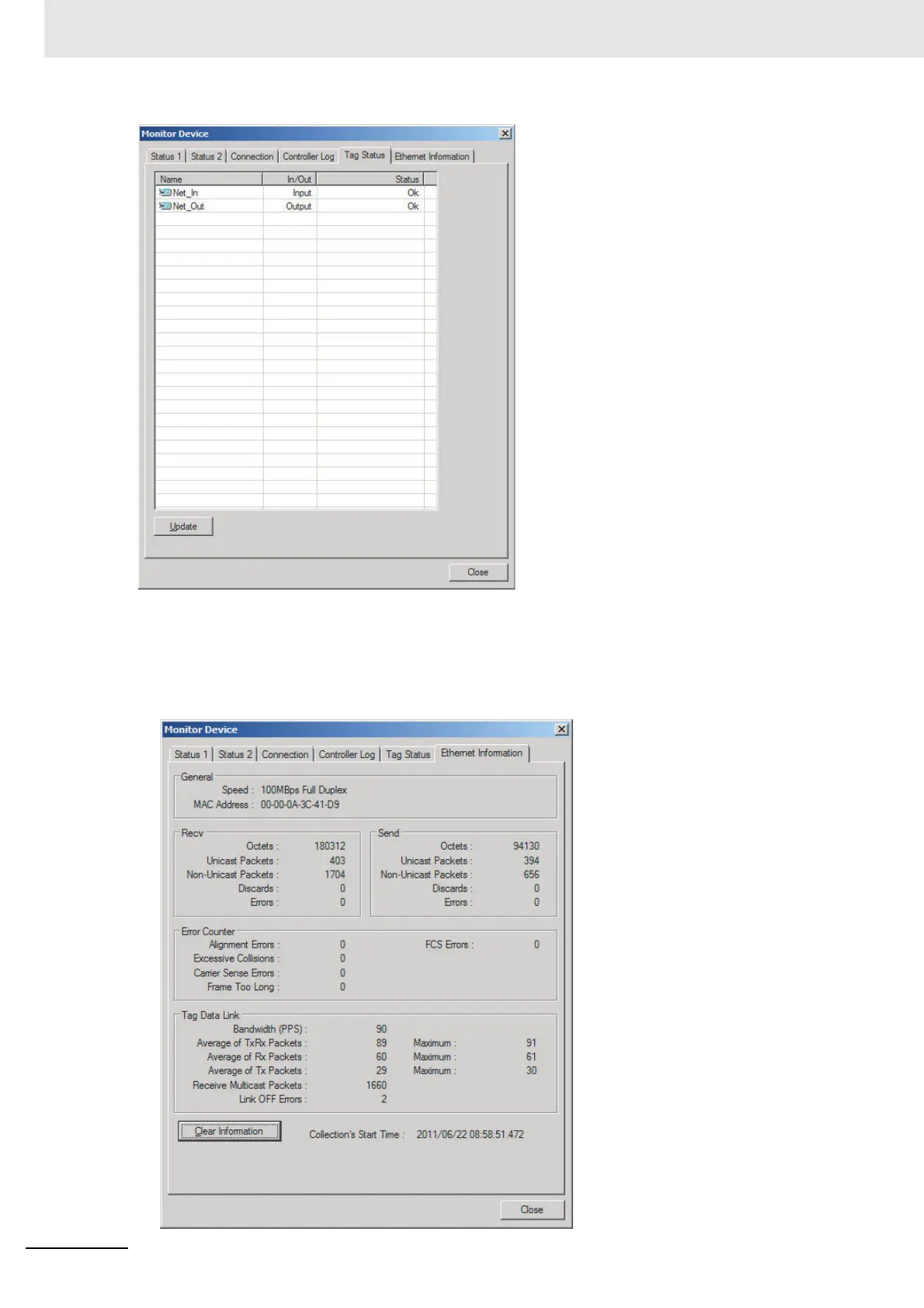

This tab page displays the communicat
ions status
at the communications driver level of the Eth
er-
Net/IP port. The error counte
r information can be used to confirm whether communication
s prob-
lems have occur
red. The tag data link information can b
e used to confirm
characteristic
s such as the
bandwidth usage (p
ps).
301
303
