12 - 53
12 Troubleshooting
NX-series EtherNet/IP Coupler Unit User’s Manual (W536)
12-4 Resetting Errors
12
12-4-1 Procedure to Reset Errors
If you select the EtherNet/IP Slave Terminal or EtherNet/IP Coupler Unit, errors are reset for the
entire EtherNet/IP Slave Terminal.
1 Connect the computer on which the Support Software is installed to the peripheral USB port on
the EtherNet/IP Coupler Unit and go online.
2 Select Troubleshooting from the Tools Menu while online. You can also click the Trouble-
shooting button in the toolbar.

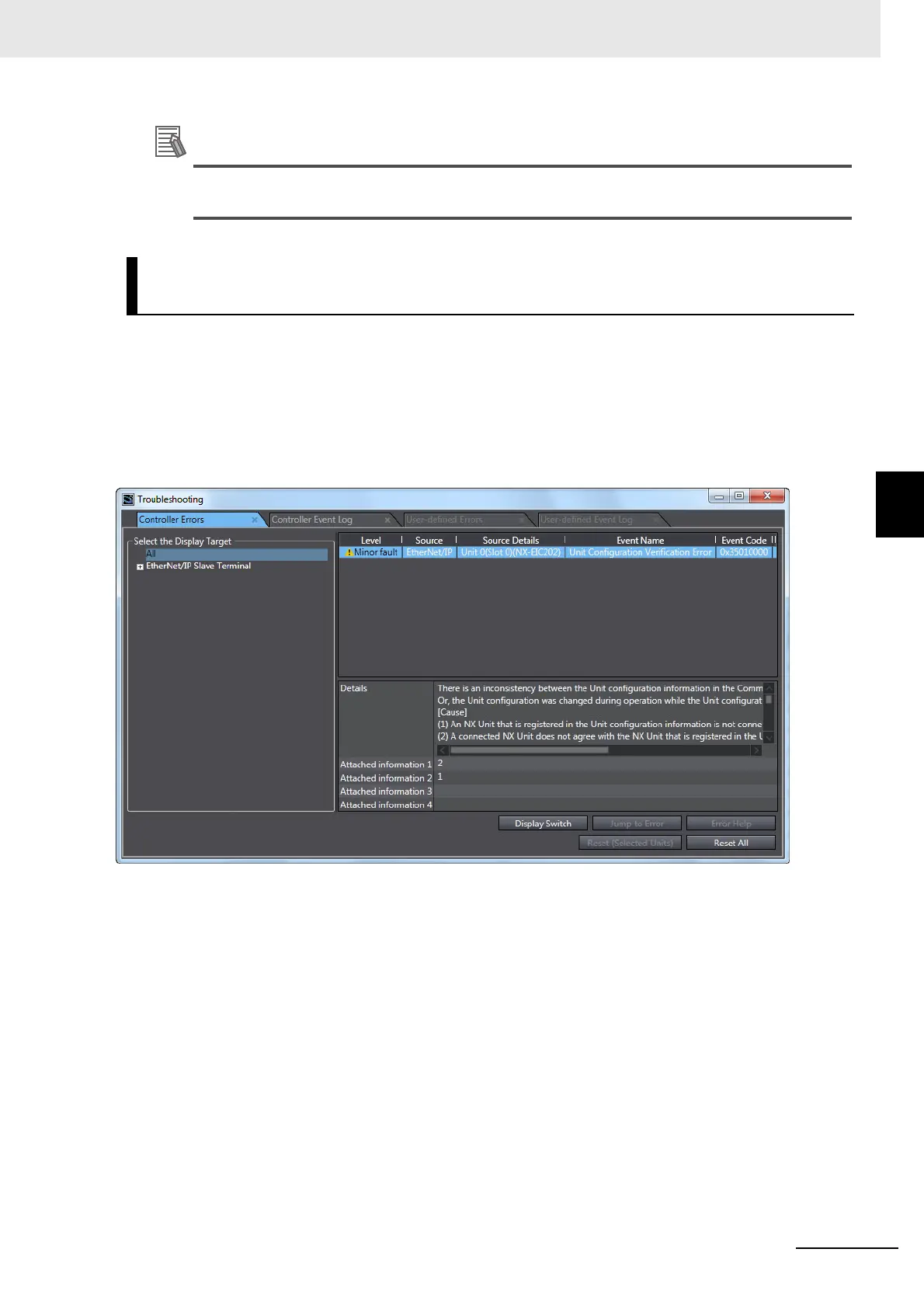

The following Troubleshooting Dialog Box is displayed.
The current Controller errors are displayed on the Controller Errors Tab Page (observations and
information are not displayed).
3 Click the Reset All button.
The errors are reset. Any errors for which the causes remain are displayed again.
Resetting the Errors in All Units in the EtherNet/IP Slave Terminal at
the Same Time
To Next Page
